1 - ARMATURE COMPL. 120V
MET-310010950.A2
310010950
|
£61.08
|
£73.30
|
|
|
2 - FIELD COIL W.FIELD COIL 120 V
MET-311011950.A0
311011950
|
£42.65
|
£51.18
|
|
|
3 - SWITCH 2-POLE
MET-343410260.A0
343410260
|
-
|
|
|
|
4 - CABLE SLEEVE
MET-344100970.A351
344100970
|
£3.20
|
£3.84
|
|
|
5 - CABLE W.UL/CSA-PLUG 110V
MET-344499600.A5
344499600
|
-
|
|
|
|
6 - CABLE CLIP
MET-343362490.A521
343362490
|
£3.20
|
£3.84
|
|
|
7 - MOTOR HOUSING
MET-315013530.A16
315013530
|
£11.78
|
£14.13
|
|
|
8 - BAFFLE
MET-339151190.A25
339151190
|
£15.41
|
£18.49
|
|
|
9 - BAFFLE
MET-339151200.A101
339151200
|
£2.94
|
£3.53
|
|
|
10 - COVER
MET-343433150.A8
343433150
|
£22.61
|
£27.13
|
|
|
11 - BALL BEARING 6X19X6
MET-143115690.A64
143115690
|
£3.82
|
£4.59
|
|
|
12 - RUBBER BUSHING
MET-344097870.A374
344097870
|
£1.50
|
£1.80
|
|
|
13 - WASHER
MET-339133060.A244
339133060
|
£1.50
|
£1.80
|
|
|
14 - BALL BEARING 8X22X7
MET-143115700.A24
143115700
|
£4.76
|
£5.71
|
|
|
15 - WASHER
MET-339006390.A458
339006390
|
£1.50
|
£1.80
|
|
|
16 - HEXAGON NUT W.RECESS
MET-341100940.A217
341100940
|
£3.20
|
£3.84
|
|
|
17 - SWITCH ROD
MET-343433080.A15
343433080
|
£1.50
|
£1.80
|
|
|
18 - CAP
MET-343433040.A27
343433040
|
£5.62
|
£6.75
|
|
|
19 - END PIECE
MET-343433110.A35
343433110
|
£22.61
|
£27.13
|
|
|
20 - SWITCH SLIDE
MET-343437100.A102
343437100
|
£2.94
|
£3.53
|
|
|
21 - CLAMPING FLANGE
MET-341031290.A36
341031290
|
£9.62
|
£11.54
|
|
|
23 - WHEEL GUARD D115
MET-339204490.A5
339204490
|
£11.78
|
£14.13
|
|
|
24 - HANDLE CPL.
MET-314000540.A189
314000540
|
£15.41
|
£18.49
|
|
|
26 - SPRING CLIP
MET-342022490.A179
342022490
|
£2.94
|
£3.53
|
|
|
30 - GASKET
MET-339011970.A220
339011970
|
£1.50
|
£1.80
|
|
|
31 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A257
141121640
|
£1.50
|
£1.80
|
|
|
32 - SELF-TAP. FILL. H. SCREW
MET-141116980.A327
141116980
|
£1.50
|
£1.80
|
|
|
33 - SELF-TAP. FILL. H. SCREW
MET-141117060.A548
141117060
|
£3.20
|
£3.84
|
|
|
34 - RATING PLATE
MET-338059680.A0
338059680
|
-
|
|
|
|
36 - WARNING LABEL 52X22
MET-338122090.A88
338122090
|
-
|
|
|
|
40 - SPINDLE SHAFT 5/8
MET-341604440.A36
341604440
|
-
|
|
|
|
41 - FLANGE NUT
MET-341101480.A68
341101480
|
£11.78
|
£14.13
|
|
|
42 - WASHER 10 2 X 14
MET-141151120.A53
141151120
|
£1.50
|
£1.80
|
|
|
43 - WASHER 10 2 X 14
MET-141152300.A310
141152300
|
£3.20
|
£3.84
|
|
|
44 - WASHER 10 2 X 14
MET-141153920.A96
141153920
|
£1.50
|
£1.80
|
|
|
50 - FLANGE COMPL.
MET-343433280.A146
343433280
|
£11.78
|
£14.13
|
|
|
51 - NUT
MET-341102460.A204
341102460
|
£3.82
|
£4.59
|
|
|
52 - BEVEL GEAR W.PINION
MET-316054960.A51
316054960
|
£19.18
|
£23.02
|
|
|
53 - FRICTION WASHER SET COMPL.
MET-316055080.A51
316055080
|
£17.55
|
£21.06
|
|
|
54 - GEAR HOUSING COMPL.
MET-316055100.A37
316055100
|
£54.94
|
£65.93
|
|
|
55 - SAFETY CLUTCH W.PINION
MET-316054230.A6
316054230
|
£73.52
|
£88.23
|
|
|
56 - BRUSH HOLDER COMPL.
MET-316055230.A26
316055230
|
£17.55
|
£21.06
|
|
|
57 - FAN W. DUST GUARD
MET-316054860.A11
316054860
|
£5.62
|
£6.75
|
|
|
58 - CARBON BRUSH SET CUT-OFF
MET-316055200.A11
316055200
|
£11.78
|
£14.13
|
|
|
59 - CLAMPING LEVER COMPL.
MET-316066040.A16
316066040
|
£15.41
|
£18.49
|
|
|
62 - O-RING
MET-143196000.A244
143196000
|
-
|
|
|
|
63 - PRESSURE SPRING
MET-342003390.A552
342003390
|
£1.50
|
£1.80
|
|
|
64 - PUSH BUTTON
MET-343433640.A11
343433640
|
£1.50
|
£1.80
|
|
|
65 - BOLT
MET-341515640.A200
341515640
|
£2.94
|
£3.53
|
|
|
68 - PIN SPANNER
MET-344163920.A16
344163920
|
£4.76
|
£5.71
|
|
|
75 - O-RING
MET-143192150.A4
143192150
|
£1.50
|
£1.80
|
|
|
90 - PART NOT NEEDED
MET-399999990.A794
399999990
|
-
|
|
|
|
92 - O-RING
MET-143195640.A28
143195640
|
£2.94
|
£3.53
|
|
|
880 - GREASE 100G
MET-344130920.A104
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A612
344130560
|
£19.18
|
£23.02
|
|
|

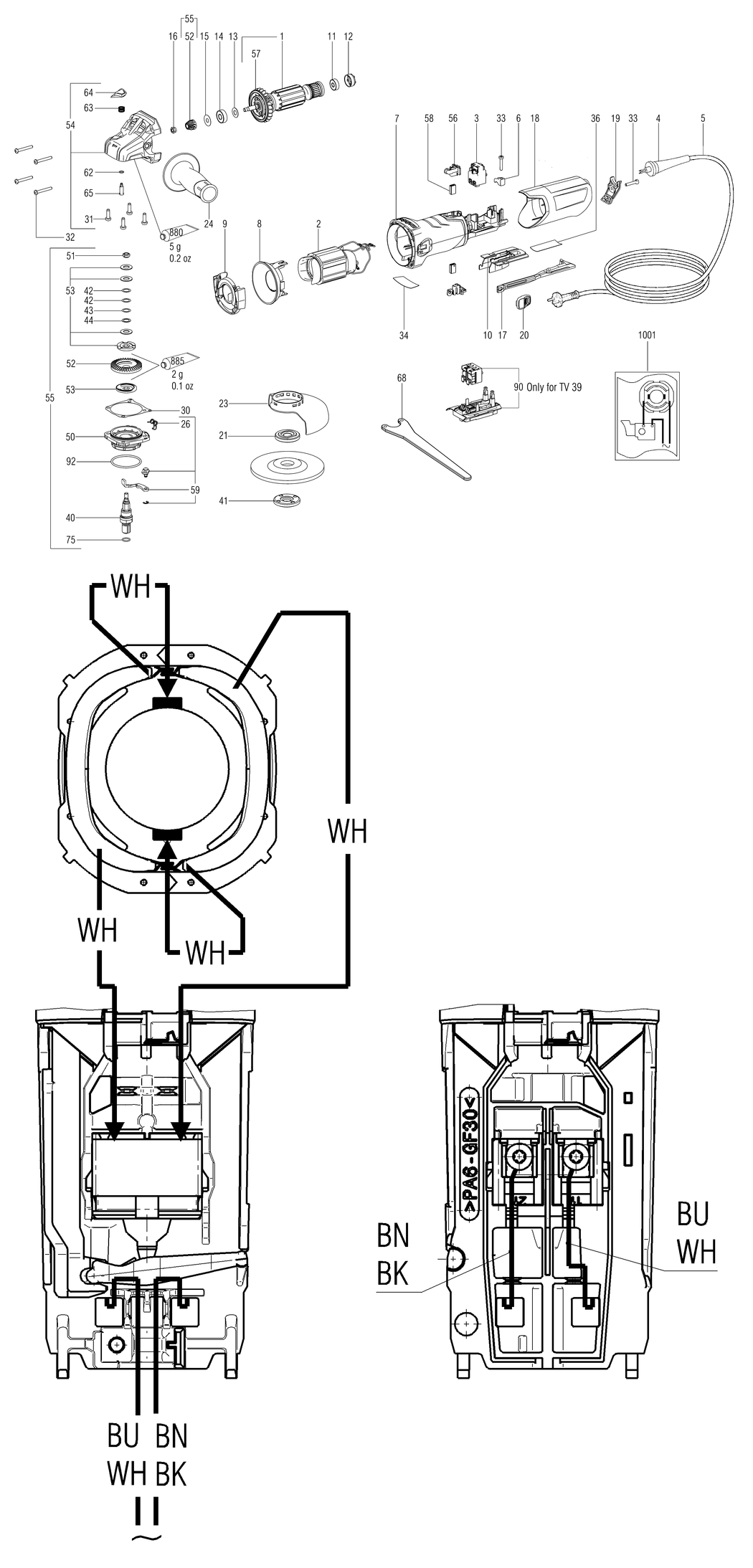

1001 - DIAGRAM
MET-338505810.A2
338505810
|
-
|
|
|
