1 - ARMATURE COMPL. 120V
MET-310011010.A11
310011010
|
£68.35
|
£82.02
|
|
|
2 - FIELD COIL W.FIELD COIL 120 V
MET-311012000.A22
311012000
|
£61.08
|
£73.30
|
|
|
3 - PART NOT NEEDED
MET-399999990.A1803
399999990
|
-
|
|
|
|
4 - CABLE SLEEVE
MET-344101220.A96
344101220
|
£3.20
|
£3.84
|
|
|
5 - CABLE W.CEE PLUG
MET-344499640.A8
344499640
|
-
|
|
|
|
6 - CABLE CLIP
MET-343362490.A873
343362490
|
£3.20
|
£3.84
|
|
|
7 - MOTOR HOUSING 2 PART
MET-315013520.A117
315013520
|
£13.63
|
£16.36
|
|
|
8 - BAFFLE
MET-339151180.A116
339151180
|
£2.94
|
£3.53
|
|
|
9 - BAFFLE
MET-339151200.A262
339151200
|
£2.94
|
£3.53
|
|
|
10 - PART NOT NEEDED
MET-399999990.A1801
399999990
|
-
|
|
|
|
11 - BALL BEARING 6X19X6
MET-143115690.A367
143115690
|
£3.82
|
£4.59
|
|
|
12 - RUBBER BUSHING
MET-344097870.A160
344097870
|
£1.50
|
£1.80
|
|
|
13 - WASHER
MET-339133060.A2
339133060
|
£1.50
|
£1.80
|
|
|
14 - BALL BEARING 8X22X7
MET-143115700.A351
143115700
|
£4.76
|
£5.71
|
|
|
15 - WASHER
MET-339006390.A184
339006390
|
£1.50
|
£1.80
|
|
|
16 - HEXAGON NUT W.RECESS
MET-341100940.A456
341100940
|
£3.20
|
£3.84
|
|
|
17 - SWITCH ROD
MET-343433070.A140
343433070
|
£1.50
|
£1.80
|
|
|
18 - CAP
MET-343433030.A68
343433030
|
£5.62
|
£6.75
|
|
|
19 - END PIECE
MET-343433110.A48
343433110
|
£22.61
|
£27.13
|
|
|
20 - SWITCH SLIDE
MET-343437100.A167
343437100
|
£2.94
|
£3.53
|
|
|
23 - WHEEL GUARD D125
MET-339204500.A59
339204500
|
£11.78
|
£14.13
|
|
|
24 - ANTI-VIBRATION HANDLE M 8
MET-314000970.A359
314000970
|
£19.18
|
£23.02
|
|
|
26 - SPRING CLIP
MET-342022490.A96
342022490
|
£2.94
|
£3.53
|
|
|
30 - GASKET
MET-339011970.A55
339011970
|
£1.50
|
£1.80
|
|
|
31 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A455
141121640
|
£1.50
|
£1.80
|
|
|
32 - SELF-TAP. FILL. H. SCREW
MET-141116980.A155
141116980
|
£1.50
|
£1.80
|
|
|
33 - SELF-TAP. FILL. H. SCREW
MET-141117060.A320
141117060
|
£3.20
|
£3.84
|
|
|
34 - RATING PLATE
MET-338072600.A0
338072600
|
-
|
|
|
|
40 - SPINDLE COMPL. WA M14
MET-316063430.A6
316063430
|
-
|
|
|
|
41 - CLAMPING NUT COMPL. M14
MET-316055350.A130
316055350
|
£15.41
|
£18.49
|
|
|
42 - WASHER 10 2 X 14
MET-141151120.A310
141151120
|
£1.50
|
£1.80
|
|
|
43 - WASHER 10 2 X 14
MET-141152300.A151
141152300
|
£3.20
|
£3.84
|
|
|
44 - WASHER 10 2 X 14
MET-141153920.A328
141153920
|
£1.50
|
£1.80
|
|
|
50 - FLANGE COMPL.
MET-343433280.A60
343433280
|
£11.78
|
£14.13
|
|
|
51 - NUT
MET-341102460.A164
341102460
|
£3.82
|
£4.59
|
|
|
52 - BEVEL GEAR W.PINION
MET-316054960.A73
316054960
|
£19.18
|
£23.02
|
|
|
53 - FRICTION WASHER SET COMPL.
MET-316066830.A18
316066830
|
£15.41
|
£18.49
|
|
|
54 - GEAR HOUSING COMPL.
MET-316055100.A207
316055100
|
£54.94
|
£65.93
|
|
|
55 - SAFETY CLUTCH W.PINION
MET-316054320.A0
316054320
|
£63.44
|
£76.13
|
|
|
56 - BRUSH HOLDER
MET-316057050.A4
316057050
|
£15.41
|
£18.49
|
|
|
57 - FAN W. DUST GUARD
MET-316054850.A84
316054850
|
£5.62
|
£6.75
|
|
|
58 - CARBON BRUSH SET CUT-OFF
MET-316055220.A5
316055220
|
£11.78
|
£14.13
|
|
|
59 - CLAMPING LEVER COMPL.
MET-316066040.A176
316066040
|
£15.41
|
£18.49
|
|
|
61 - RETAINING RING
MET-141156650.A230
141156650
|
£1.50
|
£1.80
|
|
|
62 - O-RING
MET-143196000.A65
143196000
|
-
|
|
|
|
63 - PRESSURE SPRING
MET-342003390.A89
342003390
|
£1.50
|
£1.80
|
|
|
64 - PUSH BUTTON
MET-343433130.A60
343433130
|
£1.50
|
£1.80
|
|
|
65 - BOLT
MET-341515640.A41
341515640
|
£2.94
|
£3.53
|
|
|
71 - PIVOTING SWITCH
MET-343433090.A106
343433090
|
£1.50
|
£1.80
|
|
|
72 - WASHER
MET-339007800.A161
339007800
|
£1.50
|
£1.80
|
|
|
90 - SWITCH AND ELECTRONIC
MET-316063170.A3
316063170
|
£61.08
|
£73.30
|
|
|
92 - O-RING
MET-143195640.A241
143195640
|
£2.94
|
£3.53
|
|
|
880 - GREASE 100G
MET-344130920.A310
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A308
344130560
|
£19.18
|
£23.02
|
|
|

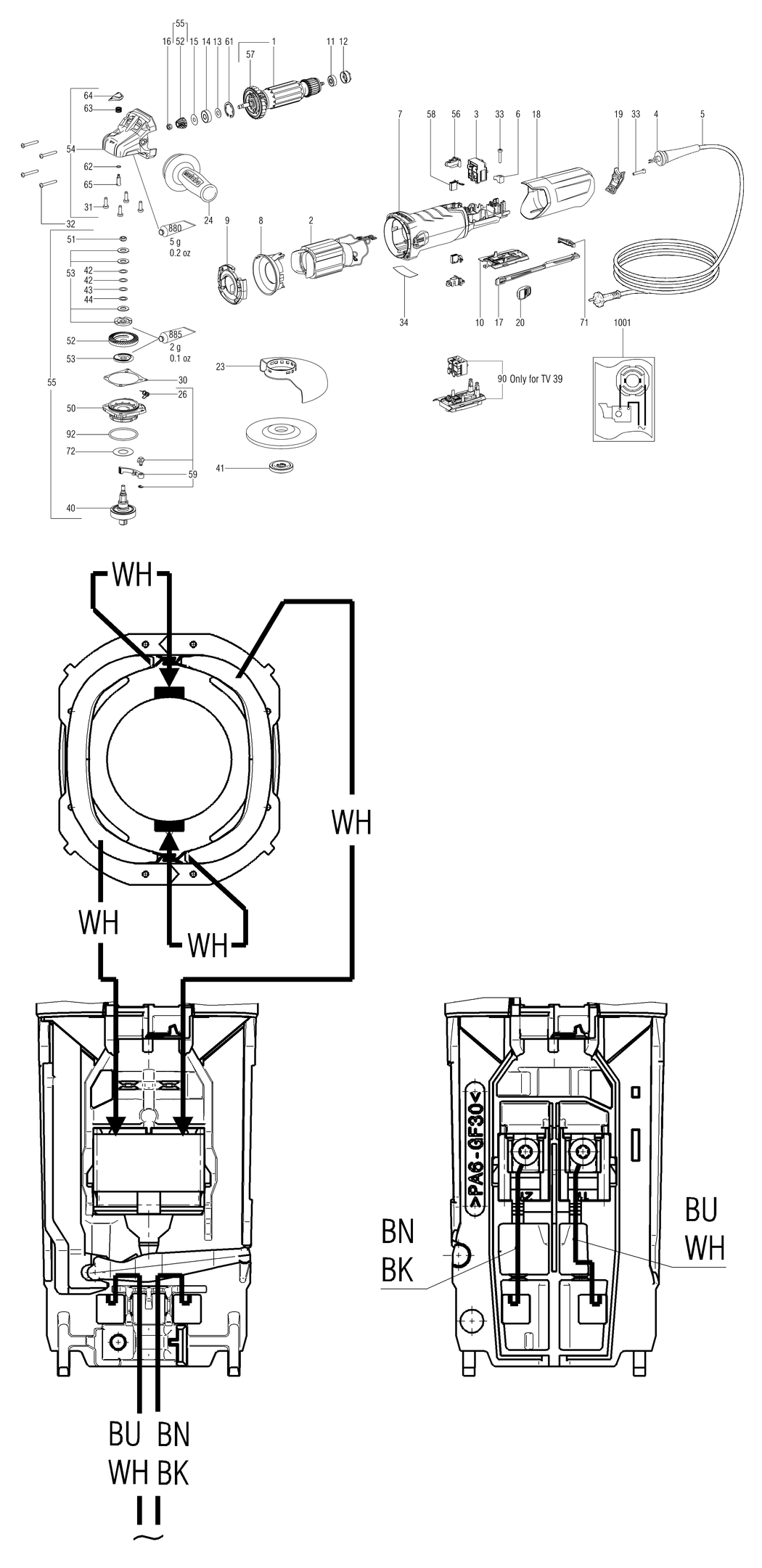

1001 - DIAGRAM
MET-338505810.A50
338505810
|
-
|
|
|
