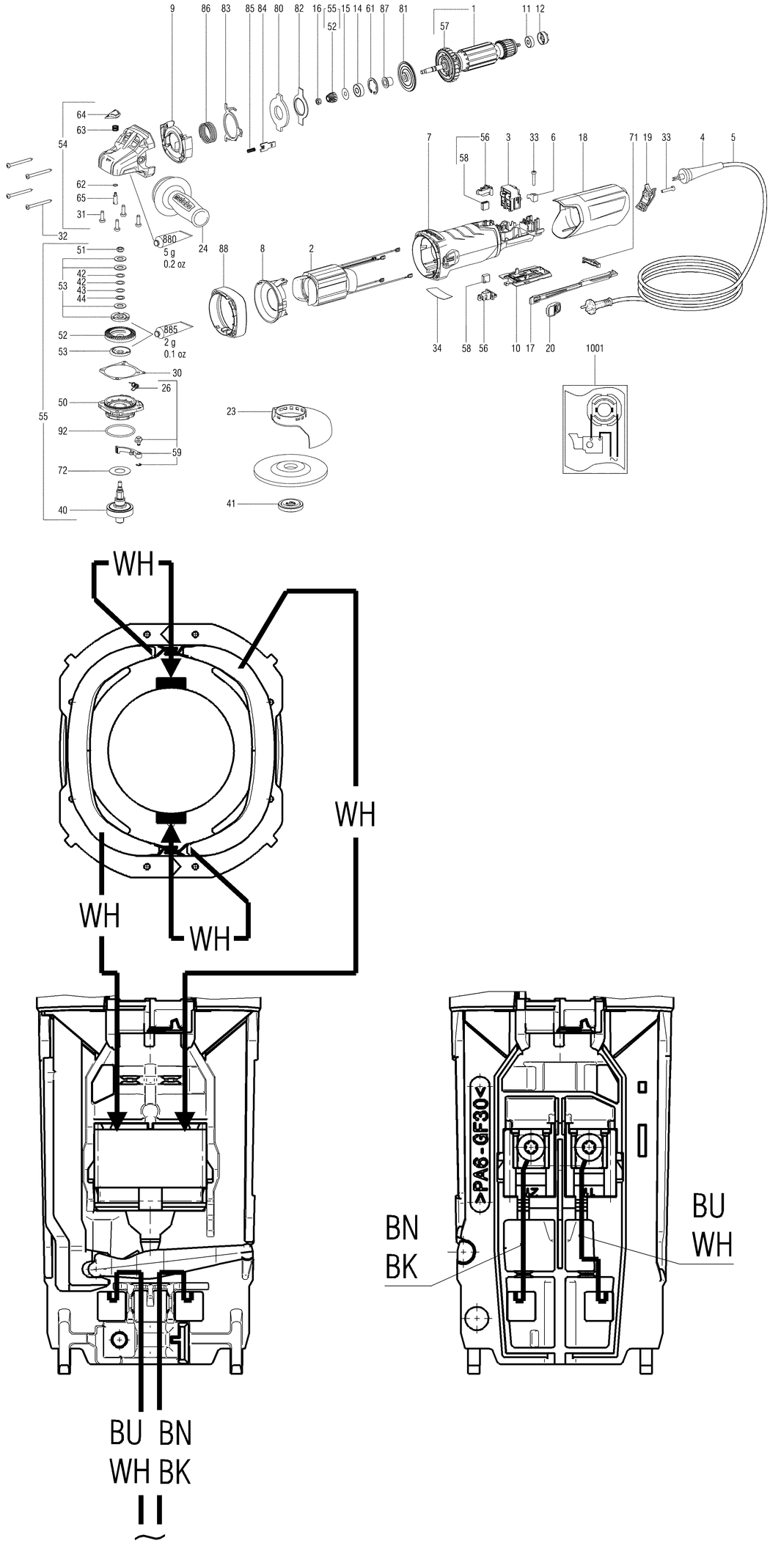

An exploded diagram and spare parts listing for the Metabo WBA 12-125 Quick / 00436180 / CH 230V
Ex VAT Inc VAT
1 - ARMATURE COMPL. 230V MET-310011050.A8 310011050 -
2 - FIELD COIL W.FIELD COIL 230 V MET-311011980.A16 311011980 £54.94 £65.93
3 - SWITCH FPCE 230 V MET-343411110.A3 343411110 £22.96 £27.55
4 - CABLE SLEEVE MET-344100970.A236 344100970 £3.20 £3.84
5 - CABLE WITH PLUG MET-344490850.A40 344490850 £26.35 £31.62
6 - CABLE CLIP MET-343362490.A201 343362490 £3.20 £3.84
7 - MOTOR HOUSING 2 PART MET-315013520.A46 315013520 £13.63 £16.36
8 - BAFFLE MET-339151210.A92 339151210 £2.94 £3.53
9 - BAFFLE MET-339151200.A17 339151200 £2.94 £3.53
10 - COVER MET-343433140.A2 343433140 £2.94 £3.53
11 - BALL BEARING 6X19X6 MET-143115690.A381 143115690 £3.82 £4.59
12 - RUBBER BUSHING MET-344097870.A530 344097870 £1.50 £1.80
14 - BALL BEARING 8X22X7 MET-143115700.A141 143115700 £4.76 £5.71
15 - WASHER MET-339006390.A312 339006390 £1.50 £1.80
16 - HEXAGON NUT W.RECESS MET-341100940.A119 341100940 £3.20 £3.84
17 - SWITCH ROD MET-343433070.A45 343433070 £1.50 £1.80
18 - CAP MET-343433030.A153 343433030 £5.62 £6.75
19 - END PIECE MET-343433110.A2 343433110 £22.61 £27.13
20 - SWITCH SLIDE MET-343437100.A44 343437100 £2.94 £3.53
23 - WHEEL GUARD D125 MET-339204500.A124 339204500 £11.78 £14.13
24 - ANTI-VIBRATION HANDLE M 8 MET-314000970.A50 314000970 £19.18 £23.02
26 - SPRING CLIP MET-342022490.A249 342022490 £2.94 £3.53
30 - GASKET MET-339011970.A270 339011970 £1.50 £1.80
31 - FILL. HEAD SCREW(DIN 7985) MET-141121640.A65 141121640 £1.50 £1.80
32 - SELF-TAP. FILL. H. SCREW MET-341701470.A103 341701470 £1.50 £1.80
33 - SELF-TAP. FILL. H. SCREW MET-141117060.A629 141117060 £3.20 £3.84
34 - RATING PLATE MET-338060160.A2 338060160 -
40 - SPINDLE COMPL. WBA M14 MET-316054500.A41 316054500 £36.59 £43.91
41 - CLAMPING NUT COMPL. M14 MET-316055350.A68 316055350 £15.41 £18.49
42 - WASHER 10 2 X 14 MET-141151120.A163 141151120 £1.50 £1.80
43 - WASHER 10 2 X 14 MET-141152300.A372 141152300 £3.20 £3.84
44 - WASHER 10 2 X 14 MET-141153920.A175 141153920 £1.50 £1.80
50 - FLANGE COMPL. MET-343433280.A219 343433280 £11.78 £14.13
51 - NUT MET-341102460.A271 341102460 £3.82 £4.59
52 - BEVEL GEAR W.PINION MET-316054960.A15 316054960 £19.18 £23.02
53 - FRICTION WASHER SET COMPL. MET-316055080.A125 316055080 £17.55 £21.06
54 - GEAR HOUSING COMPL. MET-316055100.A82 316055100 £54.94 £65.93
55 - SAFETY CLUTCH W.PINION MET-316054390.A4 316054390 -
56 - BRUSH HOLDER COMPL. MET-316055240.A32 316055240 £17.55 £21.06
57 - FAN W. DUST GUARD MET-316054850.A235 316054850 £5.62 £6.75
58 - CARBON BRUSH SET CUT-OFF MET-316055210.A3 316055210 £13.63 £16.36
59 - CLAMPING LEVER COMPL. MET-316066040.A70 316066040 £15.41 £18.49
61 - RETAINING RING MET-141156650.A10 141156650 £1.50 £1.80
62 - O-RING MET-143196000.A186 143196000 -
63 - PRESSURE SPRING MET-342003390.A343 342003390 £1.50 £1.80
64 - PUSH BUTTON MET-343433130.A203 343433130 £1.50 £1.80
65 - BOLT MET-341515640.A269 341515640 £2.94 £3.53
71 - PIVOTING SWITCH MET-343433090.A2 343433090 £1.50 £1.80
72 - WASHER MET-339007800.A85 339007800 £1.50 £1.80
80 - BUTTING PLATE MET-339011590.A25 339011590 £9.62 £11.54
81 - BRAKE DISC MET-341012810.A50 341012810 £30.06 £36.07
82 - SUPPORTING PLATE MET-343433710.A40 343433710 £2.94 £3.53
83 - SHIFT LEVER MET-339136010.A41 339136010 £3.20 £3.84
84 - SHIFT ELEMENT MET-343433700.A61 343433700 £2.94 £3.53
85 - PRESSURE SPRING MET-342003420.A64 342003420 £1.50 £1.80
86 - PRESSURE SPRING MET-342003930.A26 342003930 £2.94 £3.53
87 - SPACER SLEEVE MET-341210710.A26 341210710 £6.38 £7.65
88 - INTERMEDIATE FLANGE MET-343433690.A0 343433690 -
92 - O-RING MET-143195640.A119 143195640 £2.94 £3.53
880 - GREASE 100G MET-344130920.A237 344130920 £19.18 £23.02
885 - GREASE SF 011 50GR 1.8oz MET-344130560.A404 344130560 £19.18 £23.02
1001 - DIAGRAM MET-338505810.A24 338505810 -
