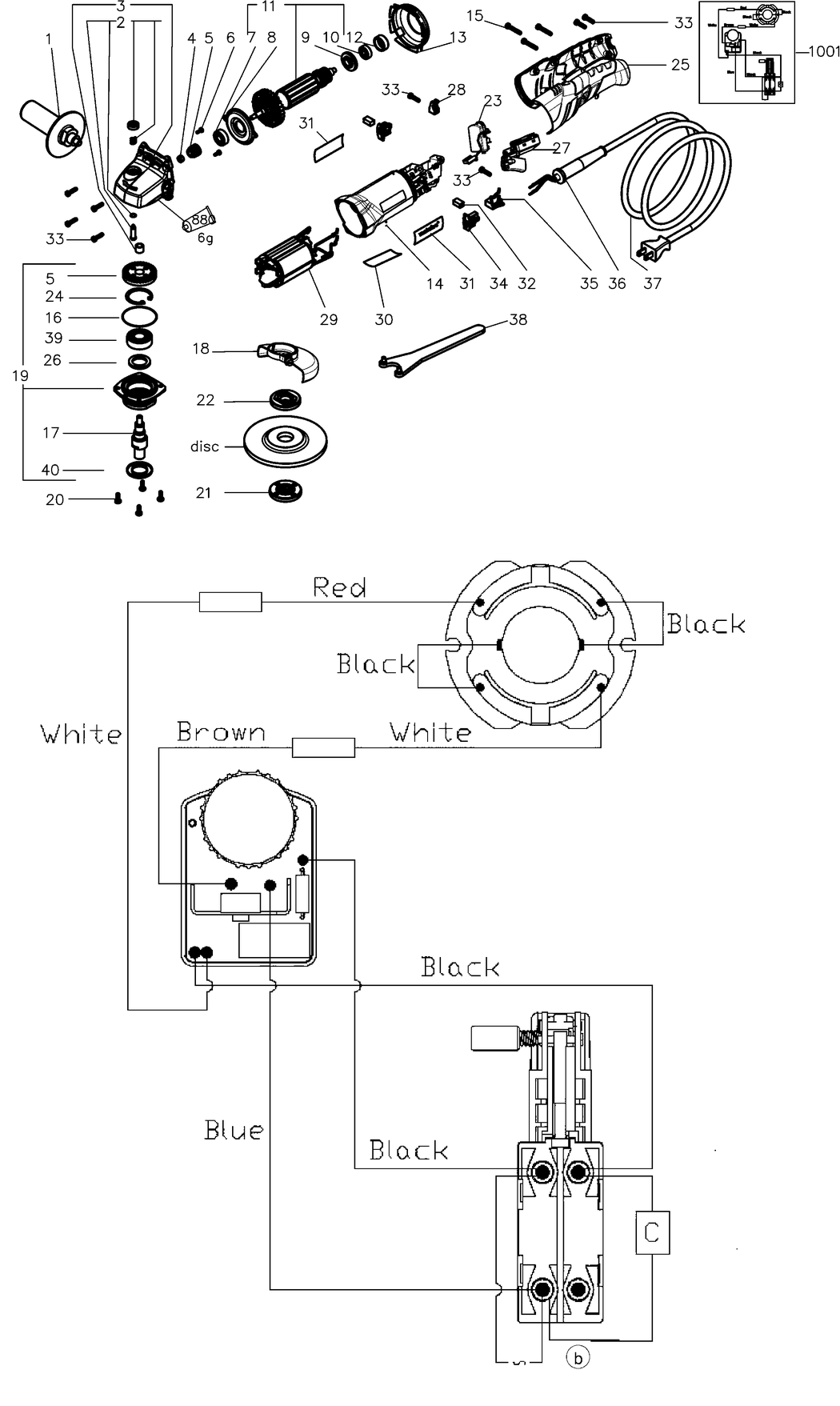

1 - HANDLE CPL.
MET-314000540.A78
314000540
|
£15.41
|
£18.49
|
|
|
2 - SPINDLE STOP COMPL.
MET-316040610.A207
316040610
|
£4.76
|
£5.71
|
|
|
3 - GEAR HOUSING COMPL.
MET-316049660.A40
316049660
|
£32.88
|
£39.45
|
|
|
4 - HEXAGON NUT W.RECESS
MET-341100940.A336
341100940
|
£3.20
|
£3.84
|
|
|
5 - BEVEL GEAR AND PINION
MET-316052030.A11
316052030
|
-
|
|
|
|
6 - FILLISTER HEAD SCREW
MET-141110460.A156
141110460
|
£1.50
|
£1.80
|
|
|
7 - BALL BEARING 8X22X7
MET-143115420.A34
143115420
|
£8.37
|
£10.04
|
|
|
8 - COVER PLATE
MET-339135750.A11
339135750
|
-
|
|
|
|
9 - TACHO DISC
MET-343431690.A11
343431690
|
-
|
|
|
|
10 - BALL BEARING 6X19X6
MET-143115870.A112
143115870
|
£5.62
|
£6.75
|
|
|
11 - ARMATURE COMPL. 230V
MET-310010630.A1
310010630
|
-
|
|
|
|
12 - RUBBER BUSHING
MET-344095260.A237
344095260
|
£3.20
|
£3.84
|
|
|
13 - BAFFLE
MET-343430250.A10
343430250
|
-
|
|
|
|
14 - MOTOR HOUSING
MET-343431830.A4
343431830
|
-
|
|
|
|
15 - SELF-TAP. FILL. H. SCREW
MET-141123940.A8
141123940
|
-
|
|
|
|
16 - O-RING 48 X 1
MET-344097550.A96
344097550
|
£1.50
|
£1.80
|
|
|
17 - SPINDLE M14
MET-341161150.A78
341161150
|
-
|
|
|
|
18 - WHEEL GUARD D 150
MET-339204250.A3
339204250
|
-
|
|
|
|
19 - FLANGE COMPL.
MET-341032280.A1
341032280
|
-
|
|
|
|
20 - FILL. HEAD SCREW
MET-141120070.A263
141120070
|
£1.50
|
£1.80
|
|
|
21 - FLANGE NUT
MET-341106900.A209
341106900
|
£11.78
|
£14.13
|
|
|
22 - CLAMPING FLANGE
MET-341031160.A73
341031160
|
£15.41
|
£18.49
|
|
|
23 - ELECTRONIC UNIT 230V 50HZ
MET-343083250.A3
343083250
|
-
|
|
|
|
24 - RETAINING RING
MET-141180190.A5
141180190
|
£1.50
|
£1.80
|
|
|
25 - HANDLE LEFT
MET-343431930.A5
343431930
|
-
|
|
|
|
26 - COMPENSATING WASHER
MET-339060160.A98
339060160
|
£3.20
|
£3.84
|
|
|
27 - SWITCH TRIGGER WITH ON LOCK
MET-343431180.A7
343431180
|
-
|
|
|
|
28 - CABLE CLIP
MET-343362490.A1196
343362490
|
£3.20
|
£3.84
|
|
|
29 - FIELD COIL W.FIELD COIL 230V
MET-311011690.A3
311011690
|
-
|
|
|
|
30 - RATING PLATE
MET-338057580.A0
338057580
|
-
|
|
|
|
31 - M-LABEL 08 52X22
MET-338122160.A168
338122160
|
£1.50
|
£1.80
|
|
|
32 - CARBON BRUSH SET 230V
MET-343013040.A4
343013040
|
£13.63
|
£16.36
|
|
|
33 - SELF-TAP FILL H SCREW
MET-141116020.A474
141116020
|
£3.20
|
£3.84
|
|
|
34 - BRUSH HOLDER
MET-343012950.A72
343012950
|
£3.82
|
£4.59
|
|
|
35 - CONDENSER
MET-343254780.A15
343254780
|
-
|
|
|
|
36 - CABLE SLEEVE
MET-344097360.A34
344097360
|
£2.94
|
£3.53
|
|
|
37 - CABLE WITH PLUG
MET-344498940.A6
344498940
|
-
|
|
|
|
38 - PIN SPANNER
MET-344163920.A150
344163920
|
£4.76
|
£5.71
|
|
|
39 - BALL BEARING 15X35X11
MET-143111520.A1
143111520
|
£22.61
|
£27.13
|
|
|
40 - FELT RING
MET-344070870.A1
344070870
|
-
|
|
|
|
880 - GREASE 100G
MET-344130910.A97
344130910
|
£19.18
|
£23.02
|
|
|
1001 - DIAGRAM
MET-338505720.A11
338505720
|
-
|
|
|
