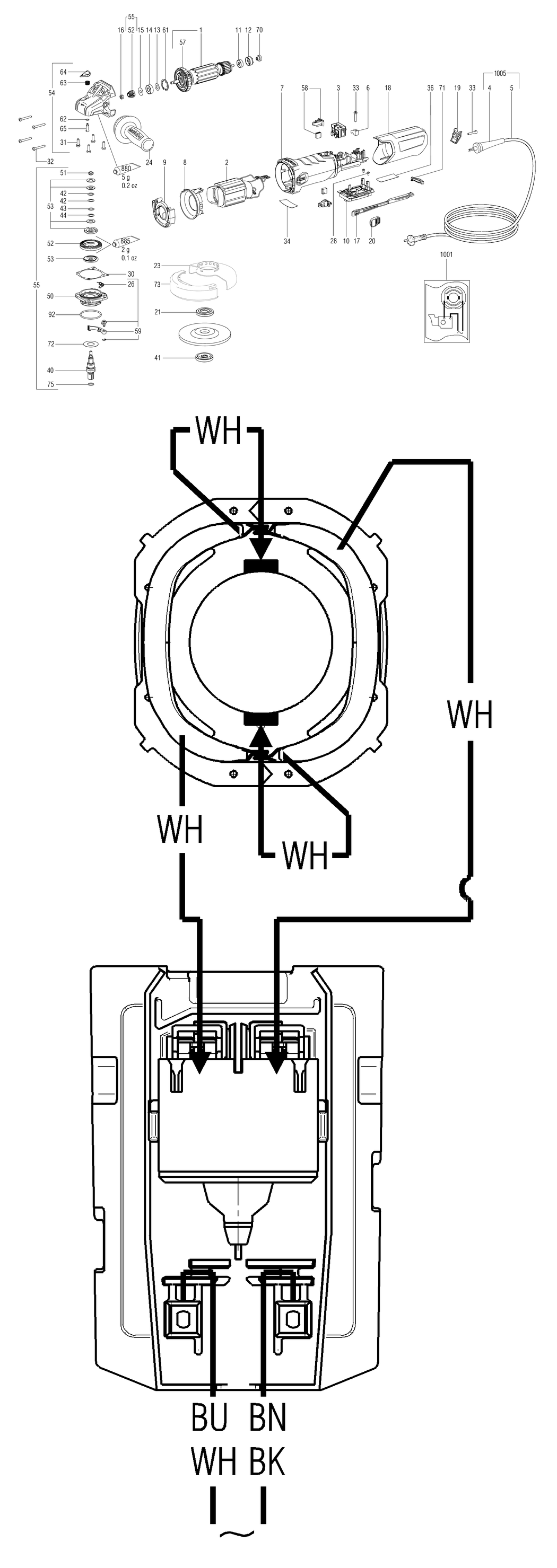

An exploded diagram and spare parts listing for the Metabo WE 15-150 Quick / 00464000 / EU 230V
Ex VAT Inc VAT
1 - ARMATURE COMPL. 230V MET-310010990.A55 310010990 £68.35 £82.02
2 - FIELD COIL W.FIELD COIL 230 V MET-311012180.A19 311012180 £54.94 £65.93
3 - SWITCH 2-POLE MET-343410290.A9 343410290 £13.63 £16.36
4 - PART NOT NEEDED MET-399999990.A438 399999990 -
5 - PART NOT NEEDED MET-399999990.A439 399999990 -
6 - CABLE CLIP MET-343362490.A232 343362490 £3.20 £3.84
7 - MOTOR HOUSING 2 PART MET-315013520.A28 315013520 £13.63 £16.36
8 - BAFFLE MET-339151180.A12 339151180 £2.94 £3.53
9 - BAFFLE MET-339151200.A22 339151200 £2.94 £3.53
10 - ELECTRONIC UNIT 230V 50/60HZ MET-343083780.A7 343083780 £48.88 £58.66
11 - BALL BEARING 6X19X6 MET-143115690.A421 143115690 £3.82 £4.59
12 - RUBBER BUSHING MET-344097870.A476 344097870 £1.50 £1.80
13 - WASHER MET-339133060.A178 339133060 £1.50 £1.80
14 - BALL BEARING 8X22X7 MET-143115700.A153 143115700 £4.76 £5.71
15 - WASHER MET-339006390.A347 339006390 £1.50 £1.80
16 - HEXAGON NUT W.RECESS MET-341100940.A112 341100940 £3.20 £3.84
17 - SWITCH ROD MET-343433070.A36 343433070 £1.50 £1.80
18 - CAP MET-343433030.A149 343433030 £5.62 £6.75
19 - END CAP MET-343433100.A135 343433100 £2.94 £3.53
20 - SWITCH SLIDE MET-343437100.A37 343437100 £2.94 £3.53
21 - CLAMPING FLANGE MET-341031160.A497 341031160 £15.41 £18.49
23 - WHEEL GUARD D150 MET-339204510.A30 339204510 £13.63 £16.36
24 - ANTI-VIBRATION HANDLE M 8 MET-314000970.A85 314000970 £19.18 £23.02
26 - SPRING CLIP MET-342022490.A228 342022490 £2.94 £3.53
28 - FILL. HEAD SCREW(DIN 7985) MET-141121430.A17 141121430 £1.50 £1.80
30 - GASKET MET-339011970.A292 339011970 £1.50 £1.80
31 - FILL. HEAD SCREW(DIN 7985) MET-141121640.A82 141121640 £1.50 £1.80
32 - SELF-TAP. FILL. H. SCREW MET-141116980.A266 141116980 £1.50 £1.80
33 - SELF-TAP. FILL. H. SCREW MET-141117060.A663 141117060 £3.20 £3.84
34 - RATING PLATE MET-338060220.A1 338060220 £1.50 £1.80
36 - PART NOT NEEDED MET-399999990.A443 399999990 -
40 - SPINDLE M14 MET-341604420.A48 341604420 £17.55 £21.06
41 - CLAMPING NUT COMPL. M14 MET-316055350.A74 316055350 £15.41 £18.49
42 - WASHER 10 2 X 14 MET-141151120.A140 141151120 £1.50 £1.80
43 - WASHER 10 2 X 14 MET-141152300.A358 141152300 £3.20 £3.84
44 - WASHER 10 2 X 14 MET-141153920.A190 141153920 £1.50 £1.80
50 - FLANGE COMPL. MET-343433280.A233 343433280 £11.78 £14.13
51 - NUT MET-341102460.A286 341102460 £3.82 £4.59
52 - BEVEL GEAR W.PINION MET-316054980.A23 316054980 £22.61 £27.13
53 - FRICTION WASHER SET COMPL. MET-316055080.A111 316055080 £17.55 £21.06
54 - GEAR HOUSING COMPL. MET-316055100.A96 316055100 £54.94 £65.93
55 - SAFETY CLUTCH W.PINION MET-316054260.A15 316054260 £73.52 £88.23
57 - FAN W. DUST GUARD MET-316054850.A230 316054850 £5.62 £6.75
58 - CARBONBRUSH WITH BRUSHOLDER SET 230V MET-316067170.A110 316067170 £17.55 £21.06
59 - CLAMPING LEVER COMPL. MET-316066040.A89 316066040 £15.41 £18.49
61 - RETAINING RING MET-141156650.A21 141156650 £1.50 £1.80
62 - O-RING MET-143196000.A196 143196000 -
63 - PRESSURE SPRING MET-342003390.A380 342003390 £1.50 £1.80
64 - PUSH BUTTON MET-343433130.A213 343433130 £1.50 £1.80
65 - BOLT MET-341515640.A297 341515640 £2.94 £3.53
70 - TACHO DISC MET-343433060.A209 343433060 £3.82 £4.59
71 - PIVOTING SWITCH MET-343433090.A11 343433090 £1.50 £1.80
72 - WASHER MET-339007800.A94 339007800 £1.50 £1.80
73 - PART NOT NEEDED MET-399999990.A442 399999990 -
75 - O-RING MET-143192490.A43 143192490 £3.20 £3.84
92 - O-RING MET-143195640.A139 143195640 £2.94 £3.53
880 - GREASE 100G MET-344130920.A183 344130920 £19.18 £23.02
885 - GREASE SF 011 50GR 1.8oz MET-344130560.A386 344130560 £19.18 £23.02
1001 - DIAGRAM MET-338505780.A103 338505780 -
1005 - CABLE WITH SLEEVE MET-316067320.A20 316067320 £32.88 £39.45
