1 - ARMATURE COMPL. 230V
MET-310010990.A8
310010990
|
£68.35
|
£82.02
|
|
|
2 - FIELD COIL ASSEMBLY 230V
MET-311012980.A8
311012980
|
£42.65
|
£51.18
|
|
|
3 - SWITCH 2-POLE X2
MET-343410270.A47
343410270
|
£13.63
|
£16.36
|
|
|
4 - PART NOT NEEDED
MET-399999990.A2281
399999990
|
-
|
|
|
|
5 - PART NOT NEEDED
MET-399999990.A2282
399999990
|
-
|
|
|
|
6 - CABLE CLIP
MET-343362490.A1211
343362490
|
£3.20
|
£3.84
|
|
|
7 - MOTOR HOUSING
MET-315013790.A32
315013790
|
£13.63
|
£16.36
|
|
|
8 - BAFFLE
MET-339151180.A193
339151180
|
£2.94
|
£3.53
|
|
|
9 - BAFFLE
MET-339151200.A299
339151200
|
£2.94
|
£3.53
|
|
|
10 - ELECTRONIC UNIT W.SWITCH
MET-316064540.A4
316064540
|
-
|
|
|
|
11 - BALL BEARING 6X19X6
MET-143115690.A433
143115690
|
£3.82
|
£4.59
|
|
|
12 - RUBBER BUSHING
MET-344097870.A41
344097870
|
£1.50
|
£1.80
|
|
|
13 - WASHER
MET-339133060.A122
339133060
|
£1.50
|
£1.80
|
|
|
14 - BALL BEARING 8X22X7
MET-143115700.A239
143115700
|
£4.76
|
£5.71
|
|
|
15 - WASHER
MET-339006390.A43
339006390
|
£1.50
|
£1.80
|
|
|
16 - HEXAGON NUT W.RECESS
MET-341100940.A346
341100940
|
£3.20
|
£3.84
|
|
|
18 - HANDLE 2 PART
MET-343439030.A24
343439030
|
£13.63
|
£16.36
|
|
|
20 - SWITCH TRIGGER COMPL.
MET-316065300.A4
316065300
|
-
|
|
|
|
22 - CLAMPING FLANGE
MET-341031160.A78
341031160
|
£15.41
|
£18.49
|
|
|
23 - WHEEL GUARD D150
MET-339204510.A44
339204510
|
£13.63
|
£16.36
|
|
|
24 - ANTI-VIBRATION HANDLE M 8
MET-314000970.A256
314000970
|
£19.18
|
£23.02
|
|
|
26 - SPRING CLIP
MET-342022490.A16
342022490
|
£2.94
|
£3.53
|
|
|
30 - GASKET
MET-339011970.A159
339011970
|
£1.50
|
£1.80
|
|
|
31 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A309
141121640
|
£1.50
|
£1.80
|
|
|
32 - SELF-TAP. FILL. H. SCREW
MET-141116980.A18
141116980
|
£1.50
|
£1.80
|
|
|
33 - SELF-TAP. FILL. H. SCREW
MET-141117060.A155
141117060
|
£3.20
|
£3.84
|
|
|
34 - RATING PLATE
MET-338067420.A0
338067420
|
-
|
|
|
|
36 - PART NOT NEEDED
MET-399999990.A2280
399999990
|
-
|
|
|
|
40 - SPINDLE M14
MET-341604420.A116
341604420
|
£17.55
|
£21.06
|
|
|
41 - CLAMPING NUT COMPL. M14
MET-316055350.A101
316055350
|
£15.41
|
£18.49
|
|
|
42 - WASHER 10 2 X 14
MET-141151120.A398
141151120
|
£1.50
|
£1.80
|
|
|
43 - WASHER 10 2 X 14
MET-141152300.A40
141152300
|
£3.20
|
£3.84
|
|
|
44 - WASHER 10 2 X 14
MET-141153920.A421
141153920
|
£1.50
|
£1.80
|
|
|
50 - FLANGE COMPL.
MET-343433280.A12
343433280
|
£11.78
|
£14.13
|
|
|
51 - NUT
MET-341102460.A52
341102460
|
£3.82
|
£4.59
|
|
|
52 - BEVEL GEAR W.PINION
MET-316054980.A120
316054980
|
£22.61
|
£27.13
|
|
|
53 - FRICTION WASHER SET COMPL.
MET-316055080.A248
316055080
|
£17.55
|
£21.06
|
|
|
54 - GEAR HOUSING COMPL.
MET-316055100.A162
316055100
|
£54.94
|
£65.93
|
|
|
55 - SAFETY CLUTCH W.PINION
MET-316054260.A19
316054260
|
£73.52
|
£88.23
|
|
|
57 - FAN W. DUST GUARD
MET-316054850.A135
316054850
|
£5.62
|
£6.75
|
|
|
59 - CLAMPING LEVER COMPL.
MET-316066040.A263
316066040
|
£15.41
|
£18.49
|
|
|
61 - RETAINING RING
MET-141156650.A161
141156650
|
£1.50
|
£1.80
|
|
|
62 - O-RING
MET-143196000.A118
143196000
|
-
|
|
|
|
63 - PRESSURE SPRING
MET-342003390.A271
342003390
|
£1.50
|
£1.80
|
|
|
64 - PUSH BUTTON
MET-343433130.A32
343433130
|
£1.50
|
£1.80
|
|
|
65 - BOLT
MET-341515640.A120
341515640
|
£2.94
|
£3.53
|
|
|
70 - TACHO DISC
MET-343433060.A123
343433060
|
£3.82
|
£4.59
|
|
|
72 - WASHER
MET-339007800.A113
339007800
|
£1.50
|
£1.80
|
|
|
73 - PRESSURE SPRING
MET-342004190.A5
342004190
|
-
|
|
|
|
75 - O-RING
MET-143192490.A127
143192490
|
£3.20
|
£3.84
|
|
|
77 - BRUSH HOLDER SET
MET-316065420.A54
316065420
|
£17.55
|
£21.06
|
|
|
78 - CARBON BRUSH SET CUT-OFF
MET-316065450.A11
316065450
|
£15.41
|
£18.49
|
|
|
92 - O-RING
MET-143195640.A158
143195640
|
£2.94
|
£3.53
|
|
|
124 - CARBONBRUSH WITH BRUSHOLDER SET 230V
MET-316067170.A27
316067170
|
£17.55
|
£21.06
|
|
|
880 - GREASE 100G
MET-344130920.A465
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A129
344130560
|
£19.18
|
£23.02
|
|
|

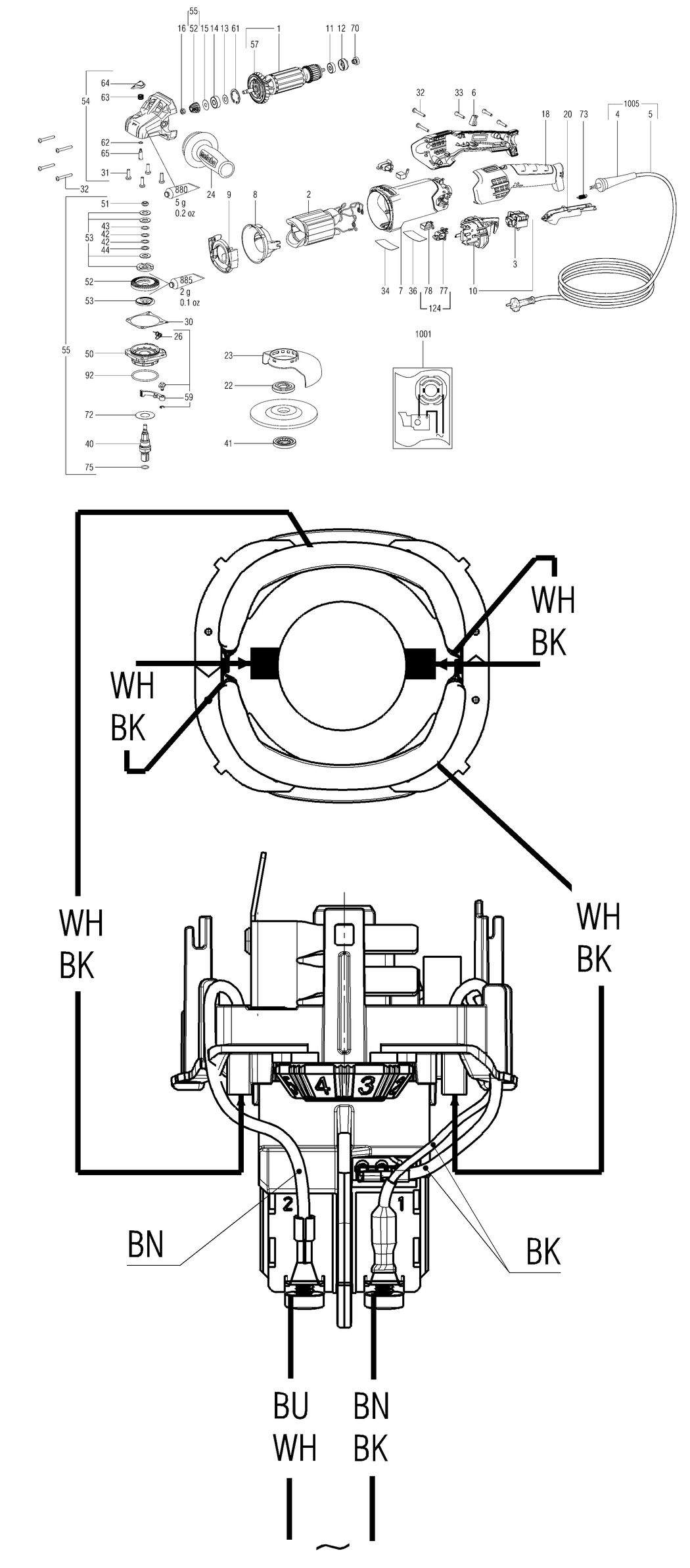

1001 - DIAGRAM
MET-338506170.A11
338506170
|
-
|
|
|
|
1005 - CABLE WITH SLEEVE
MET-316067320.A55
316067320
|
£32.88
|
£39.45
|
|
