1 - HEXAGON NUT W.RECESS
MET-341102140.A46
341102140
|
£2.94
|
£3.53
|
|
|
2 - BEVEL GEAR AND BEVEL GEAR
MET-316052140.A5
316052140
|
£42.65
|
£51.18
|
|
|
3 - WASHER
MET-339006390.A491
339006390
|
£1.50
|
£1.80
|
|
|
4 - BALL BEARING 8X22X7
MET-143115700.A232
143115700
|
£4.76
|
£5.71
|
|
|
5 - WASHER
MET-339132280.A46
339132280
|
£1.50
|
£1.80
|
|
|
6 - FAN W. PROT. GRID
MET-316041450.A75
316041450
|
£7.36
|
£8.83
|
|
|
7 - ARMATURE COMPL. 230V
MET-310009170.A11
310009170
|
£55.90
|
£67.08
|
|
|
8 - BALL BEARING 6X19X6
MET-143115690.A446
143115690
|
£3.82
|
£4.59
|
|
|
9 - RUBBER BUSHING
MET-344097870.A351
344097870
|
£1.50
|
£1.80
|
|
|
10 - PUSH BUTTON RED
MET-343393650.A69
343393650
|
£1.50
|
£1.80
|
|
|
11 - PRESSURE SPRING
MET-342003390.A536
342003390
|
£1.50
|
£1.80
|
|
|
12 - GEAR HOUSING COMPL.
MET-316041620.A51
316041620
|
£32.88
|
£39.45
|
|
|
13 - O-RING
MET-143193650.A23
143193650
|
£1.50
|
£1.80
|
|
|
14 - BOLT
MET-341515280.A10
341515280
|
£1.50
|
£1.80
|
|
|
15 - FILLISTER HEAD SCREW
MET-141123660.A77
141123660
|
£1.50
|
£1.80
|
|
|
16 - SELF-TAP FILL H SCREW
MET-141116020.A913
141116020
|
£3.20
|
£3.84
|
|
|
17 - FRICTION WASHER CPL.
MET-316041650.A39
316041650
|
£17.55
|
£21.06
|
|
|
19 - GASKET
MET-339011570.A97
339011570
|
£1.50
|
£1.80
|
|
|
20 - FLANGE W.CLAMPING LEVER CPL.
MET-316041720.A71
316041720
|
£32.88
|
£39.45
|
|
|
21 - SPINDLE SHAFT
MET-341161070.A2
341161070
|
£22.96
|
£27.55
|
|
|
22 - INTERMEDIATE GEAR
MET-316043580.A0
316043580
|
-
|
|
|
|
23 - WASHER 10 2 X 14
MET-141151120.A24
141151120
|
£1.50
|
£1.80
|
|
|
24 - WASHER 10 2 X 14
MET-141152300.A339
141152300
|
£3.20
|
£3.84
|
|
|
25 - WASHER 10 2 X 14
MET-141155550.A116
141155550
|
£1.50
|
£1.80
|
|
|
26 - SPRING CLIP
MET-342022040.A146
342022040
|
£1.50
|
£1.80
|
|
|
27 - LEVER
MET-341070440.A84
341070440
|
£4.76
|
£5.71
|
|
|
28 - CIRCLIP
MET-141181810.A116
141181810
|
£1.50
|
£1.80
|
|
|
29 - COMPRESSION SPRING
MET-342050840.A52
342050840
|
£2.94
|
£3.53
|
|
|
30 - WHEEL GUARD D150
MET-339203020.A12
339203020
|
£11.20
|
£13.44
|
|
|
31 - AUTOBALANCER
MET-341147870.A4
341147870
|
£54.94
|
£65.93
|
|
|
32 - CLAMPING NUT COMPL. M14
MET-316023660.A37
316023660
|
£22.61
|
£27.13
|
|
|
33 - ANTI-VIBRATION HANDLE M 8
MET-314000970.A157
314000970
|
£19.18
|
£23.02
|
|
|
34 - BAFFLE
MET-339151040.A20
339151040
|
£3.20
|
£3.84
|
|
|
35 - FIELD COIL ASSEMBLY W.FIELD COIL 230V
MET-311010750.A3
311010750
|
£73.52
|
£88.23
|
|
|
36 - MOTOR HOUSING
MET-315013230.A39
315013230
|
£11.78
|
£14.13
|
|
|
37 - BRUSH HOLDER COMPL. CUT OUT 230V
MET-316045170.A21
316045170
|
£13.63
|
£16.36
|
|
|
38 - CARBON BRUSH SET 230V
MET-316042070.A34
316042070
|
£13.63
|
£16.36
|
|
|
39 - SWITCH ROD
MET-343393530.A41
343393530
|
£1.50
|
£1.80
|
|
|
40 - SWITCH SLIDE
MET-343392980.A36
343392980
|
£1.50
|
£1.80
|
|
|
41 - HOUSING COVER
MET-343393460.A8
343393460
|
£7.36
|
£8.83
|
|
|
42 - M-LABEL 08 TR 49-52X22 WEA 14-150 PLUS
MET-338122910.A0
338122910
|
-
|
|
|
|
43 - CABLE CLIP
MET-343362490.A553
343362490
|
£3.20
|
£3.84
|
|
|
44 - SELF-TAP FILL H SCREW
MET-141116020.A904
141116020
|
£3.20
|
£3.84
|
|
|
45 - CABLE SLEEVE
MET-344100970.A323
344100970
|
£3.20
|
£3.84
|
|
|
47 - RATING PLATE
MET-338050670.A0
338050670
|
-
|
|
|
|
48 - PART NOT NEEDED
MET-399999990.A860
399999990
|
-
|
|
|
|
49 - ELECTRONIC UNIT 230V 50-60HZ
MET-343081050.A2
343081050
|
£68.35
|
£82.02
|
|
|
50 - SWITCH
MET-343409450.A53
343409450
|
£15.41
|
£18.49
|
|
|
51 - HOUSING BLACK
MET-343395630.A4
343395630
|
£5.62
|
£6.75
|
|
|
52 - FILLISTER HEAD SCREW
MET-141123490.A17
141123490
|
£1.50
|
£1.80
|
|
|
53 - CABLE WITH PLUG
MET-344497150.A23
344497150
|
£22.61
|
£27.13
|
|
|
55 - TACHO DISC
MET-343399850.A35
343399850
|
£3.20
|
£3.84
|
|
|
56 - TEMPERATURE SENSOR
MET-343081140.A3
343081140
|
£15.41
|
£18.49
|
|
|
57 - WASHER 10 2 X 14
MET-141153920.A65
141153920
|
£1.50
|
£1.80
|
|
|
62 - SELF-TAP. FILL. H. SCREW
MET-141118270.A52
141118270
|
£3.20
|
£3.84
|
|
|
880 - GREASE 100G
MET-344130920.A81
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A589
344130560
|
£19.18
|
£23.02
|
|
|

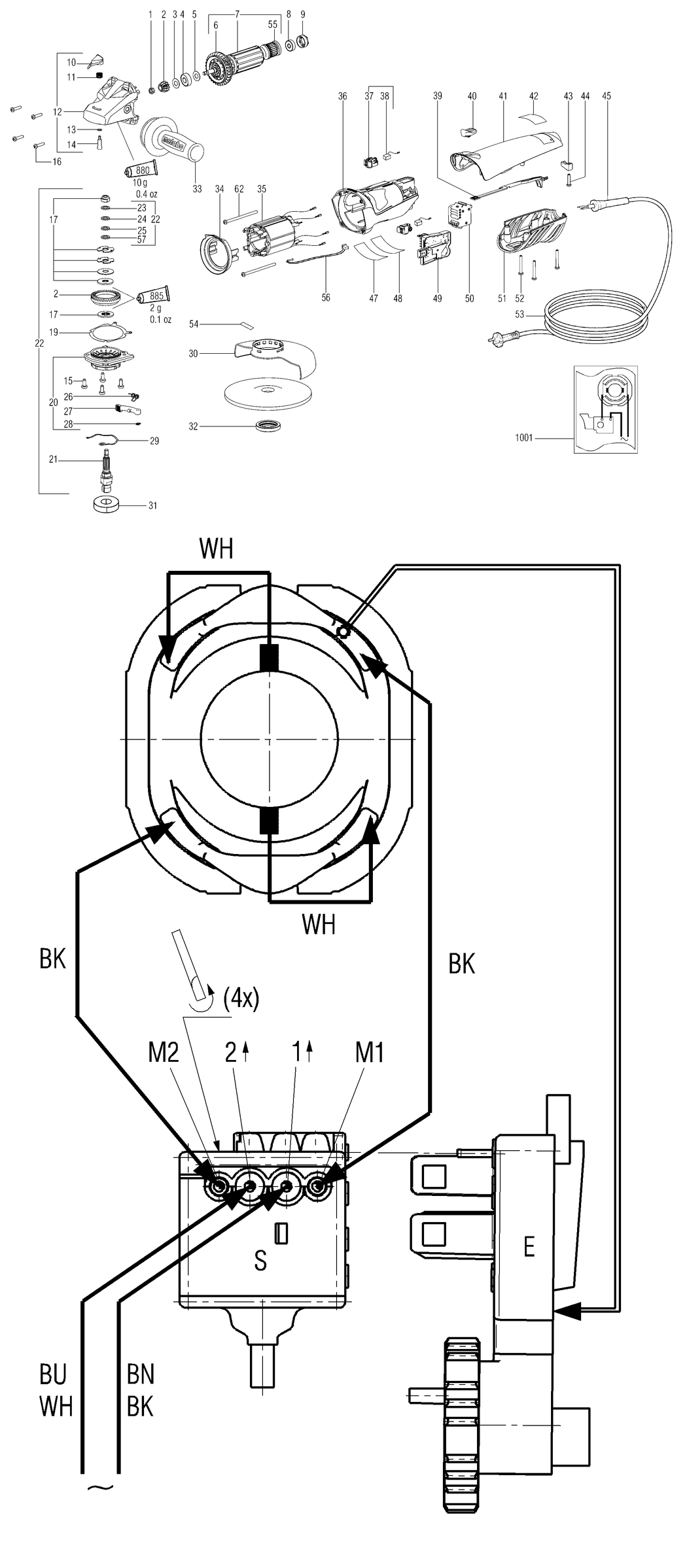

1001 - WIRING DIAGRAM 230V
MET-338504700.A16
338504700
|
-
|
|
|
