1 - SIDE SUPPORT HANDLE COMPL.
MET-316046590.A166
316046590
|
£11.78
|
£14.13
|
|
|
2 - SPINDLE STOP COMPL.
MET-316040610.A107
316040610
|
£4.76
|
£5.71
|
|
|
3 - GEAR HOUSING COMPL.
MET-316049660.A9
316049660
|
£32.88
|
£39.45
|
|
|
4 - HEXAGON NUT W.RECESS
MET-341100940.A206
341100940
|
£3.20
|
£3.84
|
|
|
5 - BEVEL GEAR AND PINION
MET-316052030.A9
316052030
|
-
|
|
|
|
6 - FILLISTER HEAD SCREW
MET-141110460.A26
141110460
|
£1.50
|
£1.80
|
|
|
7 - BALL BEARING 8X22X7
MET-143115420.A130
143115420
|
£8.37
|
£10.04
|
|
|
8 - COVER PLATE
MET-339135750.A19
339135750
|
-
|
|
|
|
9 - TACHO DISC
MET-343431690.A0
343431690
|
-
|
|
|
|
10 - BALL BEARING 6X19X6
MET-143115870.A10
143115870
|
£5.62
|
£6.75
|
|
|
11 - ARMATURE COMPL. 120V
MET-310010620.A5
310010620
|
£75.74
|
£90.89
|
|
|
12 - RUBBER BUSHING
MET-344095260.A123
344095260
|
£3.20
|
£3.84
|
|
|
13 - BAFFLE
MET-343430250.A49
343430250
|
-
|
|
|
|
14 - MOTOR HOUSING
MET-343431830.A11
343431830
|
-
|
|
|
|
15 - SELF-TAP. FILL. H. SCREW
MET-141123940.A45
141123940
|
-
|
|
|
|
16 - O-RING 48 X 1
MET-344097550.A22
344097550
|
£1.50
|
£1.80
|
|
|
17 - SPINDLE
MET-341161160.A29
341161160
|
-
|
|
|
|
18 - WHEEL GUARD D 150
MET-339204450.A0
339204450
|
£22.96
|
£27.55
|
|
|
19 - FLANGE COMPL.
MET-315203080.A1
315203080
|
-
|
|
|
|
20 - FILL. HEAD SCREW
MET-141120070.A22
141120070
|
£1.50
|
£1.80
|
|
|
21 - FLANGE NUT
MET-341101480.A73
341101480
|
£11.78
|
£14.13
|
|
|
22 - CLAMPING FLANGE
MET-341031290.A48
341031290
|
£9.62
|
£11.54
|
|
|
23 - ELECTRONIC UNIT 120V 50/60HZ
MET-343085480.A1
343085480
|
£36.59
|
£43.91
|
|
|
24 - PIN SPANNER
MET-344163920.A39
344163920
|
£4.76
|
£5.71
|
|
|
25 - HANDLE L
MET-343442060.A7
343442060
|
£11.78
|
£14.13
|
|
|
26 - COMPENSATING WASHER
MET-339060160.A67
339060160
|
£3.20
|
£3.84
|
|
|
27 - SWITCH TRIGGER
MET-343442100.A3
343442100
|
£22.96
|
£27.55
|
|
|
28 - CABLE CLIP
MET-343362490.A529
343362490
|
£3.20
|
£3.84
|
|
|
29 - FIELD COIL ASSEMBLY W.FIELD COIL 110V
MET-311012200.A1
311012200
|
£61.08
|
£73.30
|
|
|
30 - RATING PLATE 01244420 WEP 1500-150 RT
MET-338071890.A0
338071890
|
-
|
|
|
|
31 - M-LABEL 08 52X22
MET-338122160.A231
338122160
|
£1.50
|
£1.80
|
|
|
32 - CARBON BRUSH SET 120 V
MET-316051680.A14
316051680
|
£13.63
|
£16.36
|
|
|
33 - SELF-TAP FILL H SCREW
MET-141116020.A930
141116020
|
£3.20
|
£3.84
|
|
|
34 - BRUSH HOLDER
MET-343001240.A0
343001240
|
£6.38
|
£7.65
|
|
|
36 - CABLE SLEEVE
MET-344099380.A13
344099380
|
£2.94
|
£3.53
|
|
|
37 - CABLE W.UL/CSA-PLUG
MET-344530340.A3
344530340
|
-
|
|
|
|
38 - FLANGE
MET-343442930.A10
343442930
|
-
|
|
|
|
39 - FILLISTER HEAD SCREW DUO-TAPTITE
MET-141123920.A20
141123920
|
£2.94
|
£3.53
|
|
|
40 - LEVER
MET-341071870.A10
341071870
|
£3.20
|
£3.84
|
|
|
41 - SPRING CLIP
MET-342022220.A6
342022220
|
£2.94
|
£3.53
|
|
|
42 - BEARING SLEEVE
MET-341005860.A0
341005860
|
£3.20
|
£3.84
|
|
|
44 - O-RING
MET-143195910.A10
143195910
|
£2.94
|
£3.53
|
|
|
45 - WASHER
MET-339007790.A68
339007790
|
-
|
|
|
|
880 - GREASE 100G
MET-344130910.A370
344130910
|
£19.18
|
£23.02
|
|
|

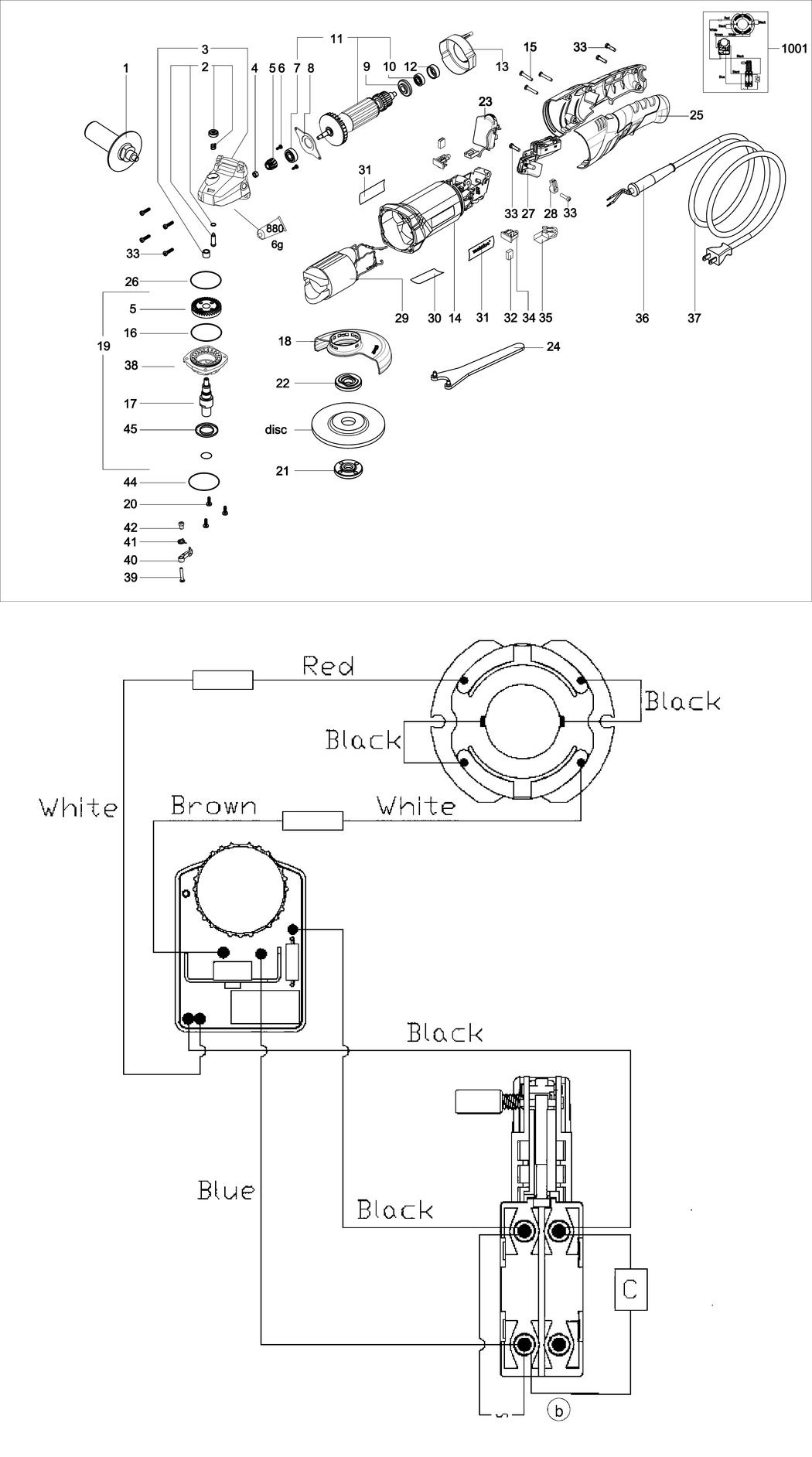

1001 - DIAGRAM
MET-338505720.A3
338505720
|
-
|
|
|
