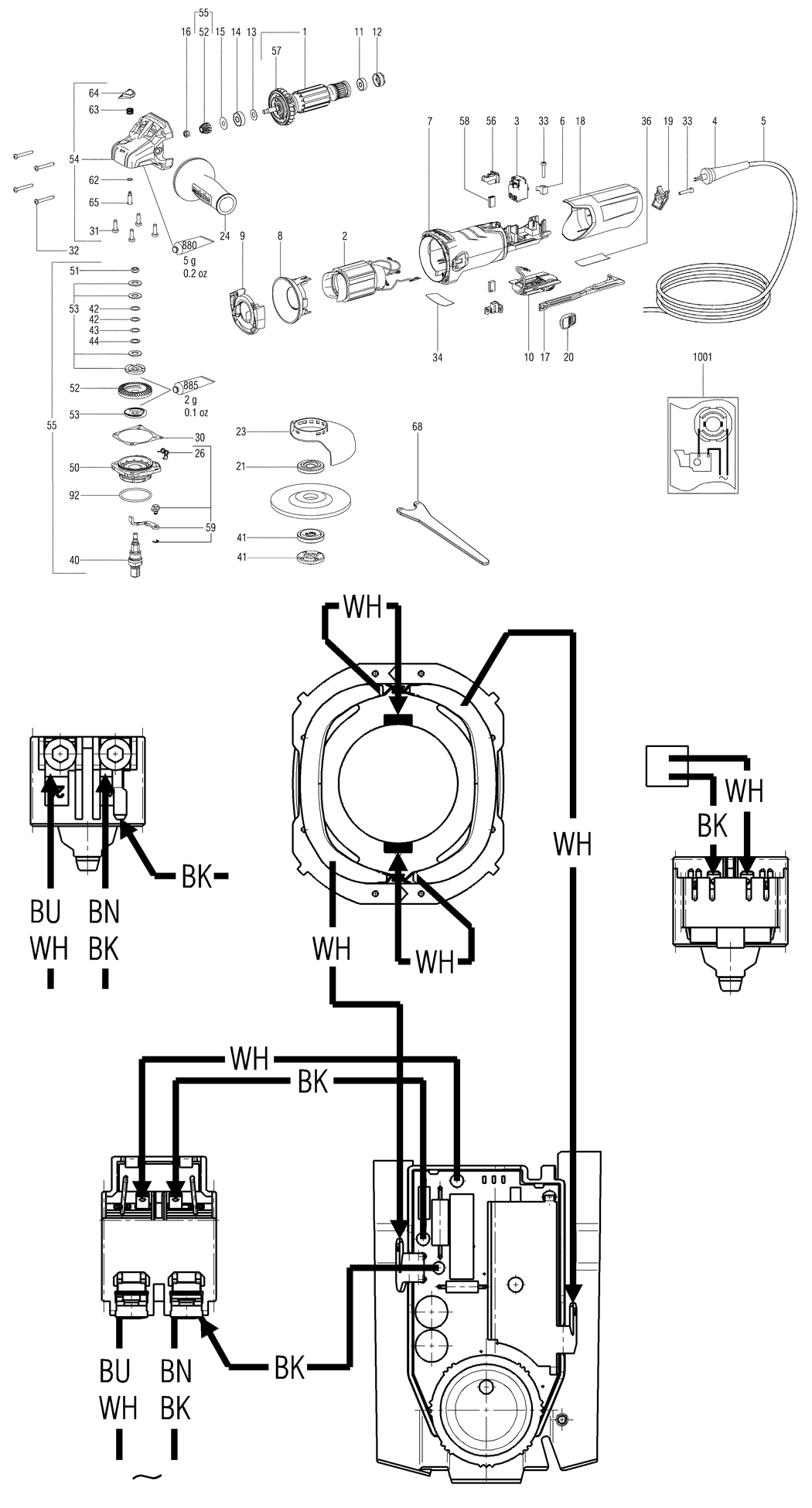

1 - ARMATURE COMPL. 120V
MET-310010960.A5
310010960
|
£63.36
|
£76.03
|
|
|
2 - FIELD COIL W.FIELD COIL 120 V
MET-311011960.A5
311011960
|
£48.88
|
£58.66
|
|
|
3 - SWITCH 1-POLE X2
MET-343410240.A13
343410240
|
£7.36
|
£8.83
|
|
|
4 - CABLE SLEEVE
MET-344100970.A163
344100970
|
£3.20
|
£3.84
|
|
|
5 - CABLE W.UL/CSA-PLUG 110V
MET-344499600.A12
344499600
|
-
|
|
|
|
6 - CABLE CLIP
MET-343362490.A937
343362490
|
£3.20
|
£3.84
|
|
|
7 - MOTOR HOUSING
MET-315013530.A6
315013530
|
£11.78
|
£14.13
|
|
|
8 - BAFFLE
MET-339151190.A9
339151190
|
£15.41
|
£18.49
|
|
|
9 - BAFFLE
MET-339151200.A186
339151200
|
£2.94
|
£3.53
|
|
|
10 - ELECTRONIC UNIT 120V 50/60HZ
MET-343083570.A2
343083570
|
£42.65
|
£51.18
|
|
|
11 - BALL BEARING 6X19X6
MET-143115690.A123
143115690
|
£3.82
|
£4.59
|
|
|
12 - RUBBER BUSHING
MET-344097870.A246
344097870
|
£1.50
|
£1.80
|
|
|
13 - WASHER
MET-339133060.A80
339133060
|
£1.50
|
£1.80
|
|
|
14 - BALL BEARING 8X22X7
MET-143115700.A5
143115700
|
£4.76
|
£5.71
|
|
|
15 - WASHER
MET-339006390.A146
339006390
|
£1.50
|
£1.80
|
|
|
16 - HEXAGON NUT W.RECESS
MET-341100940.A411
341100940
|
£3.20
|
£3.84
|
|
|
17 - SWITCH ROD
MET-343433080.A6
343433080
|
£1.50
|
£1.80
|
|
|
18 - CAP
MET-343433040.A36
343433040
|
£5.62
|
£6.75
|
|
|
19 - END CAP
MET-343433100.A80
343433100
|
£2.94
|
£3.53
|
|
|
20 - SWITCH SLIDE
MET-343437100.A128
343437100
|
£2.94
|
£3.53
|
|
|
21 - CLAMPING FLANGE
MET-341031290.A114
341031290
|
£9.62
|
£11.54
|
|
|
23 - WHEEL GUARD D125
MET-339204500.A21
339204500
|
£11.78
|
£14.13
|
|
|
24 - SIDE SUPPORT HANDLE COMPL.
MET-316046590.A59
316046590
|
£11.78
|
£14.13
|
|
|
26 - SPRING CLIP
MET-342022490.A62
342022490
|
£2.94
|
£3.53
|
|
|
30 - GASKET
MET-339011970.A34
339011970
|
£1.50
|
£1.80
|
|
|
31 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A515
141121640
|
£1.50
|
£1.80
|
|
|
32 - SELF-TAP. FILL. H. SCREW
MET-141116980.A113
141116980
|
£1.50
|
£1.80
|
|
|
33 - SELF-TAP. FILL. H. SCREW
MET-141117060.A296
141117060
|
£3.20
|
£3.84
|
|
|
34 - RATING PLATE
MET-338059880.A0
338059880
|
-
|
|
|
|
36 - WARNING LABEL 52X22
MET-338122090.A184
338122090
|
-
|
|
|
|
40 - SPINDLE SHAFT 5/8
MET-341604440.A13
341604440
|
-
|
|
|
|
41 - FLANGE NUT
MET-341101480.A34
341101480
|
£11.78
|
£14.13
|
|
|
42 - WASHER 10 2 X 14
MET-141151120.A262
141151120
|
£1.50
|
£1.80
|
|
|
43 - WASHER 10 2 X 14
MET-141152300.A118
141152300
|
£3.20
|
£3.84
|
|
|
44 - WASHER 10 2 X 14
MET-141153920.A253
141153920
|
£1.50
|
£1.80
|
|
|
50 - FLANGE COMPL.
MET-343433280.A137
343433280
|
£11.78
|
£14.13
|
|
|
51 - NUT
MET-341102460.A100
341102460
|
£3.82
|
£4.59
|
|
|
52 - BEVEL GEAR W.PINION
MET-316054980.A45
316054980
|
£22.61
|
£27.13
|
|
|
53 - FRICTION WASHER SET COMPL.
MET-316055080.A166
316055080
|
£17.55
|
£21.06
|
|
|
54 - GEAR HOUSING COMPL.
MET-316055100.A264
316055100
|
£54.94
|
£65.93
|
|
|
55 - SAFETY CLUTCH W.PINION
MET-316054230.A4
316054230
|
£73.52
|
£88.23
|
|
|
56 - BRUSH HOLDER COMPL.
MET-316055230.A52
316055230
|
£17.55
|
£21.06
|
|
|
57 - FAN W. DUST GUARD
MET-316054860.A47
316054860
|
£5.62
|
£6.75
|
|
|
58 - CARBON BRUSH SET CUT-OFF
MET-316055200.A4
316055200
|
£11.78
|
£14.13
|
|
|
59 - CLAMPING LEVER COMPL.
MET-316066040.A206
316066040
|
£15.41
|
£18.49
|
|
|
62 - O-RING
MET-143196000.A27
143196000
|
-
|
|
|
|
63 - PRESSURE SPRING
MET-342003390.A69
342003390
|
£1.50
|
£1.80
|
|
|
64 - PUSH BUTTON
MET-343433640.A45
343433640
|
£1.50
|
£1.80
|
|
|
65 - BOLT
MET-341515640.A26
341515640
|
£2.94
|
£3.53
|
|
|
68 - PIN SPANNER
MET-344163920.A200
344163920
|
£4.76
|
£5.71
|
|
|
92 - O-RING
MET-143195640.A283
143195640
|
£2.94
|
£3.53
|
|
|
880 - GREASE 100G
MET-344130920.A362
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A224
344130560
|
£19.18
|
£23.02
|
|
|
1001 - DIAGRAM
MET-338505690.A9
338505690
|
-
|
|
|
