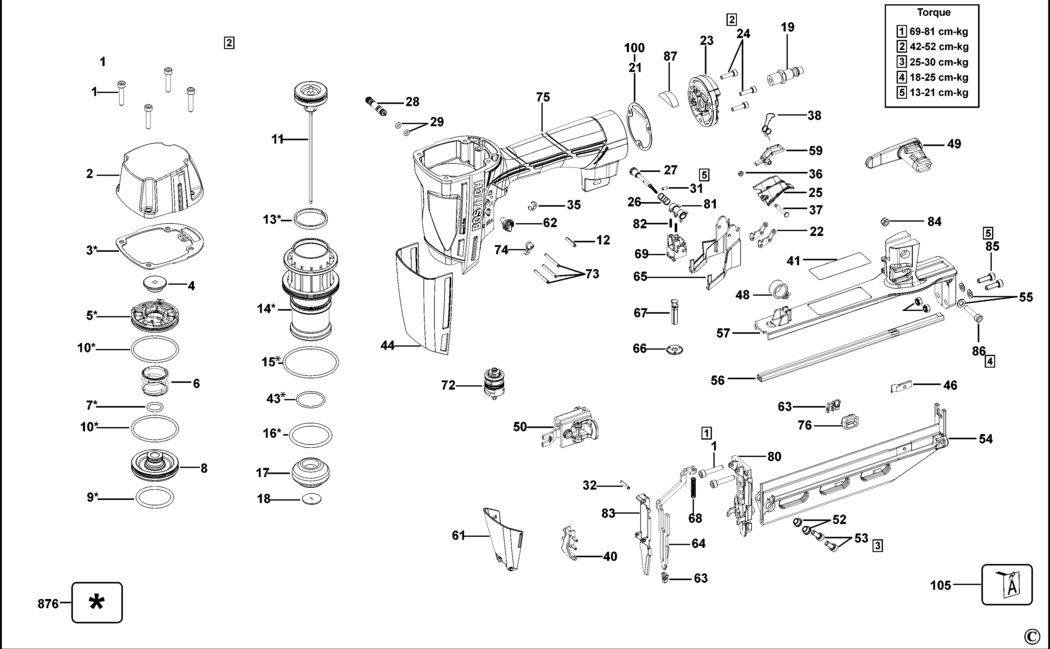

1 - SCREW
BDE-MSC5080-25.A6
MSC5080-25
|
£1.50
|
£1.80
|
|
2 - CAP
BDE-9R198749
9R198749
|
£17.48
|
£20.97
|
|
3 - GASKET
BDE-9R198753
9R198753
|
£2.26
|
£2.71
|
|
4 - SEAL
BDE-180533.A3
180533
|
£1.50
|
£1.80
|
|
5 - SEAL
BDE-180230.A3
180230
|
£1.50
|
£1.80
|
|
6 - SPRING
BDE-180532.A6
180532
|
£1.50
|
£1.80
|
|
7 - O RING
BDE-100843.A3
100843
|
£1.50
|
£1.80
|
|
8 - VALVE
BDE-180537.A0
180537
|
£1.82
|
£2.19
|
|
9 - O RING
BDE-182253.A0
182253
|
£1.50
|
£1.80
|
|
10 - O RING
BDE-850605.A3
850605
|
£1.50
|
£1.80
|
|
11 - PISTON SA
BDE-9R204250.A3
9R204250
|
£17.48
|
£20.97
|
|
12 - SPIROL PIN
BDE-107583.A8
107583
|
£1.50
|
£1.80
|
|
13 - PISTON RING
BDE-180543.A3
180543
|
£1.50
|
£1.80
|
|
14 - SLEEVE
BDE-180538.A3
180538
|
£4.69
|
£5.63
|
|
15 - O RING
BDE-166047.A3
166047
|
£1.50
|
£1.80
|
|
16 - O RING
BDE-180540.A0
180540
|
£1.50
|
£1.80
|
|
17 - BUMPER
BDE-180549.A0
180549
|
£2.78
|
£3.34
|
|
18 - GUIDE
BDE-180293.A0
180293
|
£1.50
|
£1.80
|
|
21 - GASKET
BDE-180463.A8
180463
|
£1.50
|
£1.80
|
|
22 - BRACKET
BDE-9R201812.A3
9R201812
|
£1.50
|
£1.80
|
|
23 - CAP
BDE-180465.A4
180465
|
£5.88
|
£7.06
|
|
24 - SCREW
BDE-MSC4070-16.A13
MSC4070-16
|
£1.50
|
£1.80
|
|
25 - TRIGGER
BDE-9R205611.A7
9R205611
|
£7.18
|
£8.62
|
|
26 - SPRING
BDE-180481.A4
180481
|
£1.50
|
£1.80
|
|
27 - PIN
BDE-9R195255.A5
9R195255
|
£2.26
|
£2.71
|
|
28 - PIN
BDE-9R196671.A0
9R196671
|
£2.71
|
£3.25
|
|
29 - O RING
BDE-9R196690.A2
9R196690
|
£1.50
|
£1.80
|
|
31 - GRUB SCREW
BDE-9R198788.A1
9R198788
|
£1.50
|
£1.80
|
|
32 - PIN
BDE-181920.A6
181920
|
£1.50
|
£1.80
|
|
35 - CIRCLIP
BDE-9R200515.A0
9R200515
|
£1.50
|
£1.80
|
|
36 - GROMMET
BDE-391814-C3D1.A5
391814-C3D1
|
£1.50
|
£1.80
|
|
37 - PIN
BDE-9R196682.A0
9R196682
|
£1.50
|
£1.80
|
|
38 - SPRING
BDE-9R205607.A2
9R205607
|
£1.50
|
£1.80
|
|
40 - LATCH
BDE-9R196742.A3
9R196742
|
£9.41
|
£11.29
|
|
43 - O RING
BDE-180544.A0
180544
|
£1.50
|
£1.80
|
|
44 - COVER
BDE-9R198752
9R198752
|
£1.50
|
£1.80
|
|
46 - STOP
BDE-180564.A3
180564
|
£1.50
|
£1.80
|
|
48 - SPRING
BDE-9R205585.A1
9R205585
|
£2.78
|
£3.34
|
|
49 - HOOK SA
BDE-180515.A1
180515
|
£7.18
|
£8.62
|
|
50 - PUSHER
BDE-9R205613.A0
9R205613
|
£5.88
|
£7.06
|
|
52 - BUSHING
BDE-180235.A3
180235
|
£1.50
|
£1.80
|
|
53 - SCREW
BDE-9R199720.A23
9R199720
|
£1.50
|
£1.80
|
|
54 - BOTTOM PLATE
BDE-181916.A0
181916
|
£10.85
|
£13.02
|
|
55 - WASHER
BDE-180569.A1
180569
|
£1.50
|
£1.80
|
|
56 - LINER
BDE-180560.A3
180560
|
£5.88
|
£7.06
|
|
57 - CASING UPPER
BDE-180236.A0
180236
|
£10.85
|
£13.02
|
|
59 - ROCKER
BDE-9R205614.A4
9R205614
|
£7.18
|
£8.62
|
|
61 - COVER
BDE-9R198750
9R198750
|
£1.50
|
£1.80
|
|
62 - BUTTON
BDE-9R195254.A0
9R195254
|
£1.50
|
£1.80
|
|
63 - FOOT
BDE-9R198756
9R198756
|
£1.50
|
£1.80
|
|
64 - CONTACT
BDE-9R198754.A0
9R198754
|
£9.41
|
£11.29
|
|
65 - COVER
BDE-9R198751
9R198751
|
£1.50
|
£1.80
|
|
66 - WHEEL ADJUSTER
BDE-9R198779.A3
9R198779
|
£1.50
|
£1.80
|
|
67 - CONTACT
BDE-9R205583.A0
9R205583
|
£9.41
|
£11.29
|
|
68 - SPRING
BDE-9R205580.A0
9R205580
|
£1.50
|
£1.80
|
|
69 - GUIDE
BDE-9R205579.A2
9R205579
|
£1.50
|
£1.80
|
|
72 - VALVE
BDE-9R196764.A1
9R196764
|
£9.41
|
£11.29
|
|
73 - PIN
BDE-174345.A18
174345
|
£1.50
|
£1.80
|
|
74 - BUTTON LOCK-ON
BDE-184518.A8
184518
|
£1.50
|
£1.80
|
|
75 - FRAME
BDE-9R198748
9R198748
|
£87.82
|
£105.39
|
|
76 - ADAPTOR
BDE-9R205581.A1
9R205581
|
£1.50
|
£1.80
|
|
80 - NOSE
BDE-9R198726.A1
9R198726
|
£37.35
|
£44.82
|
|
81 - PAWL
BDE-9R201813.A4
9R201813
|
£5.88
|
£7.06
|
|
82 - SPRING
BDE-9R201809.A3
9R201809
|
£1.50
|
£1.80
|
|
83 - DOOR
BDE-9R198730.A0
9R198730
|
£17.48
|
£20.97
|
|
84 - LOCK-NUT
BDE-MHE5080-100.A6
MHE5080-100
|
£1.50
|
£1.80
|
|
85 - SCREW
BDE-MSC5080-16.A0
MSC5080-16
|
£1.50
|
£1.80
|
|
86 - SCREW
BDE-MSC5080-22.A1
MSC5080-22
|
£1.50
|
£1.80
|
|
87 - MUFFLER
BDE-180577.A5
180577
|
£1.50
|
£1.80
|
|
105 - VALVE KIT
BDE-TVA17.A0
TVA17
|
£19.90
|
£23.88
|
|
876 - SERVICE KIT Rebuild kit
BDE-FN1664-RK.A1
FN1664-RK
|
£17.48
|
£20.97
|
|
