Elu MH265 Type 2 Circ. Saw Spare Parts

Home Details Reviews Delivery

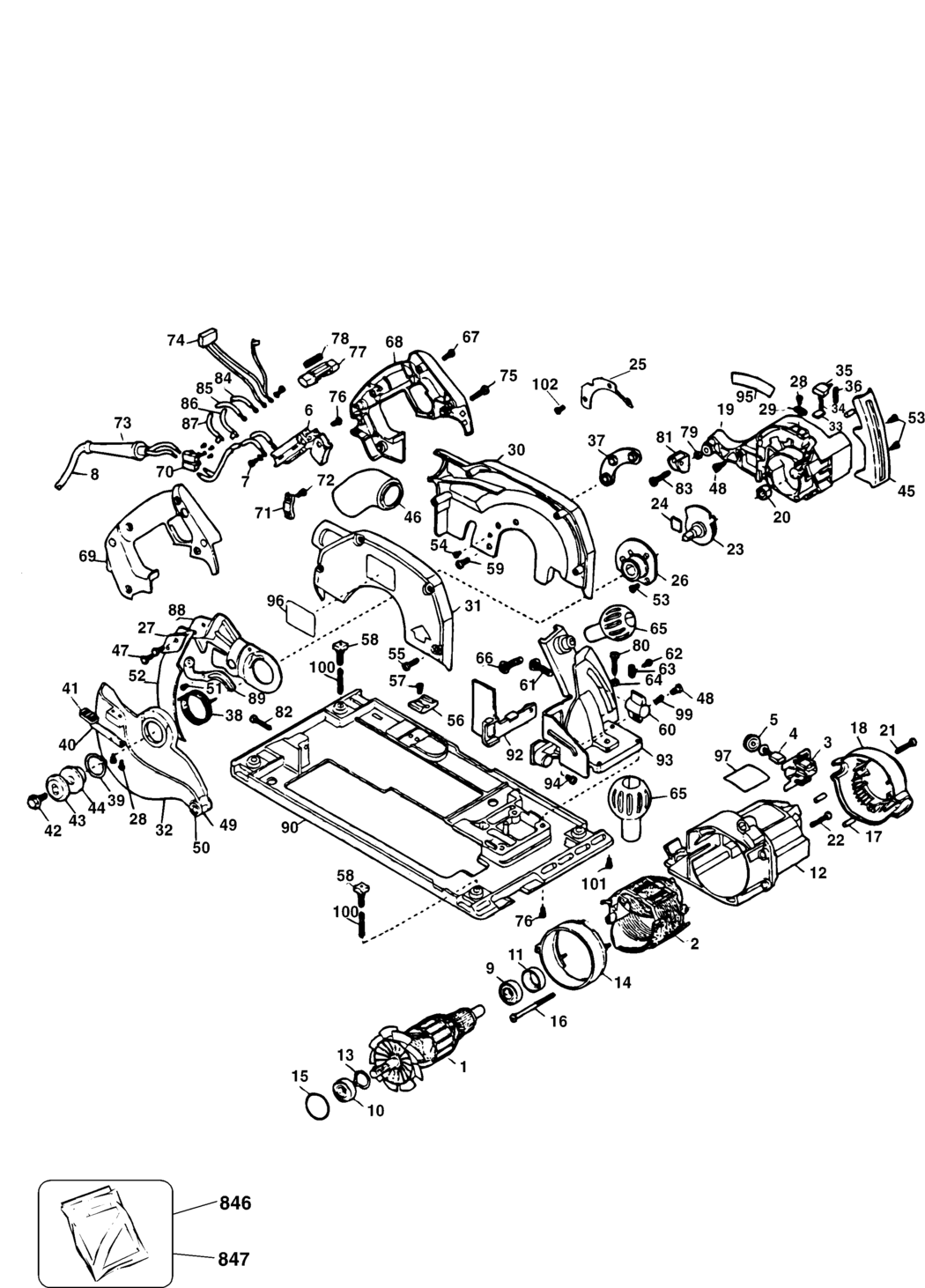

An exploded drawing and spare parts listing for the Elu MH265 Type 2 Circ. Saw

	Ex VAT	Inc VAT
1 - ARMATURE & FAN GB 240V BDE-144785-10SV.A3 144785-10SV	-
1 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116974 000000-00	-
2 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116975 000000-00	-
2 - FIELD SA GB 240V BDE-N078042SV.A0 N078042SV	£78.95	£94.74
3 - BRUSH HOLDER SA GB 240V BDE-147097-09.A19 147097-09	£16.03	£19.24
3 - BRUSH HOLDER SA GB 115V BDE-147097-09.A20 147097-09	£16.03	£19.24
4 - BRUSH SA BDE-145323-06.A10 145323-06	£5.88	£7.06
5 - BRUSH CAP BDE-448084-01.A4 448084-01	-
6 - NO LONGER AVAILABLE BDE-000000-00.A116976 000000-00	-
7 - SCREW BDE-384127-01.A18 384127-01	£1.50	£1.80
8 - CORDSET (M/PLUG) GB 240V BDE-330060-44.A8 330060-44	£14.57	£17.48
8 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116977 000000-00	-
9 - BEARING BDE-605040-20.A14 605040-20	£4.69	£5.63
10 - BEARING BDE-868768-07.A115 868768-07	£7.85	£9.42
11 - SLEEVE BDE-137382-00.A3 137382-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A116978 000000-00	-
13 - CIRCLIP BDE-144803-00.A20 144803-00	£1.50	£1.80
14 - NO LONGER AVAILABLE BDE-000000-00.A116979 000000-00	-
15 - SEAL BDE-701297-00.A13 701297-00	£1.50	£1.80
16 - SCREW BDE-330019-19.A204 330019-19	£1.50	£1.80
17 - PLUG BDE-87205-00.A35 87205-00	£1.50	£1.80
18 - NO LONGER AVAILABLE BDE-000000-00.A116980 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A116981 000000-00	-
20 - BEARING NEEDLE BDE-330004-06.A135 330004-06	£1.50	£1.80
21 - SCREW BDE-330019-20.A4 330019-20	£1.50	£1.80
22 - SCREW.TEMP BDE-330045-19.A12 330045-19	£1.50	£1.80
23 - NO LONGER AVAILABLE BDE-000000-00.A116982 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A116983 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A116984 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A116985 000000-00	-
28 - SCREW BDE-330045-05.A162 330045-05	£1.50	£1.80
29 - NO LONGER AVAILABLE BDE-000000-00.A116986 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A116987 000000-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A116988 000000-00	-
32 - NO LONGER AVAILABLE BDE-000000-00.A116989 000000-00	-
33 - WIPER BDE-145351-00.A8 145351-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A116996 000000-00	-
35 - BUTTON BDE-145350-00.A11 145350-00	£1.50	£1.80
36 - NO LONGER AVAILABLE BDE-000000-00.A116990 000000-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A116991 000000-00	-
38 - NO LONGER AVAILABLE BDE-000000-00.A116992 000000-00	-
39 - NO LONGER AVAILABLE BDE-000000-00.A116993 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A116994 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A116995 000000-00	-
42 - SCREW.SPECIAL BDE-145344-00.A28 145344-00	£1.88	£2.25
43 - WASHER OUTER CLAMP BDE-145446-00.A14 145446-00	£3.30	£3.96
44 - WASHER INNER CLAMP BDE-145442-03.A1 145442-03	£3.80	£4.56
45 - NO LONGER AVAILABLE BDE-000000-00.A116997 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A116998 000000-00	-
47 - SCREW.TEMP BDE-98113-12.A5 98113-12	-
48 - SCREW.SPECIAL BDE-144949-00.A7 144949-00	-
49 - NO LONGER AVAILABLE BDE-000000-00.A117003 000000-00	-
50 - NUT BDE-148460-00.A6 148460-00	-
51 - NO LONGER AVAILABLE BDE-000000-00.A116999 000000-00	-
52 - NO LONGER AVAILABLE BDE-000000-00.A117000 000000-00	-
53 - NO LONGER AVAILABLE BDE-000000-00.A117001 000000-00	-
54 - NO LONGER AVAILABLE BDE-000000-00.A117002 000000-00	-
55 - SCREW BDE-330045-06.A73 330045-06	£1.50	£1.80
56 - CLIP BDE-147190-01.A8 147190-01	£1.78	£2.13
57 - SCREW.TEMP BDE-98102-10.A23 98102-10	£1.50	£1.80
58 - SCREW WING BDE-326573-01.A77 326573-01	£1.82	£2.19
59 - SCREW BDE-616001-00.A5 616001-00	£1.50	£1.80
60 - KNOB BDE-147107-00.A13 147107-00	£1.82	£2.19
61 - NO LONGER AVAILABLE BDE-000000-00.A117004 000000-00	-
62 - SCREW.TEMP BDE-330045-04.A6 330045-04	£1.50	£1.80
63 - NO LONGER AVAILABLE BDE-000000-00.A117005 000000-00	-
64 - NUT BDE-330015-04.A1 330015-04	£1.50	£1.80
65 - NO LONGER AVAILABLE BDE-000000-00.A117021 000000-00	-
66 - NO LONGER AVAILABLE BDE-000000-00.A117022 000000-00	-
67 - SCREW BDE-330019-14.A0 330019-14	£1.50	£1.80
68 - NO LONGER AVAILABLE BDE-000000-00.A117023 000000-00	-
69 - COVER BDE-152041-10 152041-10	-
70 - TERMINAL BLOCK BDE-320078-00.A65 320078-00	£2.26	£2.71
71 - CORD CLAMP BDE-003618-00.A8 003618-00	£1.50	£1.80
72 - NO LONGER AVAILABLE BDE-000000-00.A117024 000000-00	-
73 - CORD PROTECTOR BDE-445338-00.A8 445338-00	£1.50	£1.80
74 - CAPACITOR BDE-148679-02.A14 148679-02	-
75 - SCREW.TEMP BDE-330019-21.A35 330019-21	£1.50	£1.80
76 - SCREW.TEMP BDE-98102-10.A24 98102-10	£1.50	£1.80
77 - NO LONGER AVAILABLE BDE-000000-00.A117006 000000-00	-
78 - NO LONGER AVAILABLE BDE-000000-00.A117007 000000-00	-
79 - NO LONGER AVAILABLE BDE-000000-00.A117008 000000-00	-
80 - NO LONGER AVAILABLE BDE-000000-00.A117009 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A117010 000000-00	-
82 - NO LONGER AVAILABLE BDE-000000-00.A117011 000000-00	-
83 - NO LONGER AVAILABLE BDE-000000-00.A117012 000000-00	-
85 - NO LONGER AVAILABLE BDE-000000-00.A117013 000000-00	-
86 - NO LONGER AVAILABLE BDE-000000-00.A117014 000000-00	-
87 - NO LONGER AVAILABLE BDE-000000-00.A117015 000000-00	-
88 - NO LONGER AVAILABLE BDE-000000-00.A117016 000000-00	-
89 - NO LONGER AVAILABLE BDE-000000-00.A117017 000000-00	-
90 - NO LONGER AVAILABLE BDE-000000-00.A117018 000000-00	-
92 - NO LONGER AVAILABLE BDE-000000-00.A117019 000000-00	-
93 - NO LONGER AVAILABLE BDE-000000-00.A117020 000000-00	-
94 - SCREW.TEMP BDE-330019-01.A103 330019-01	£1.50	£1.80
95 - NO LONGER AVAILABLE BDE-000000-00.A117025 000000-00	-
97 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A117026 000000-00	-
97 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A117027 000000-00	-
99 - NO LONGER AVAILABLE BDE-000000-00.A117028 000000-00	-
100 - SPRING BDE-448136-00.A8 448136-00	-
101 - NO LONGER AVAILABLE BDE-000000-00.A117029 000000-00	-
102 - SCREW BDE-098102-08.A4 098102-08	£1.42	£1.70
846 - WRENCH BDE-145378-01.A38 145378-01	£1.50	£1.80
847 - NO LONGER AVAILABLE BDE-000000-00.A117030 000000-00	-

Attribute Name	Value
Brand	Elu
