Bosch 180 WATT-SERIE / 0607453441 / --- Spare Parts

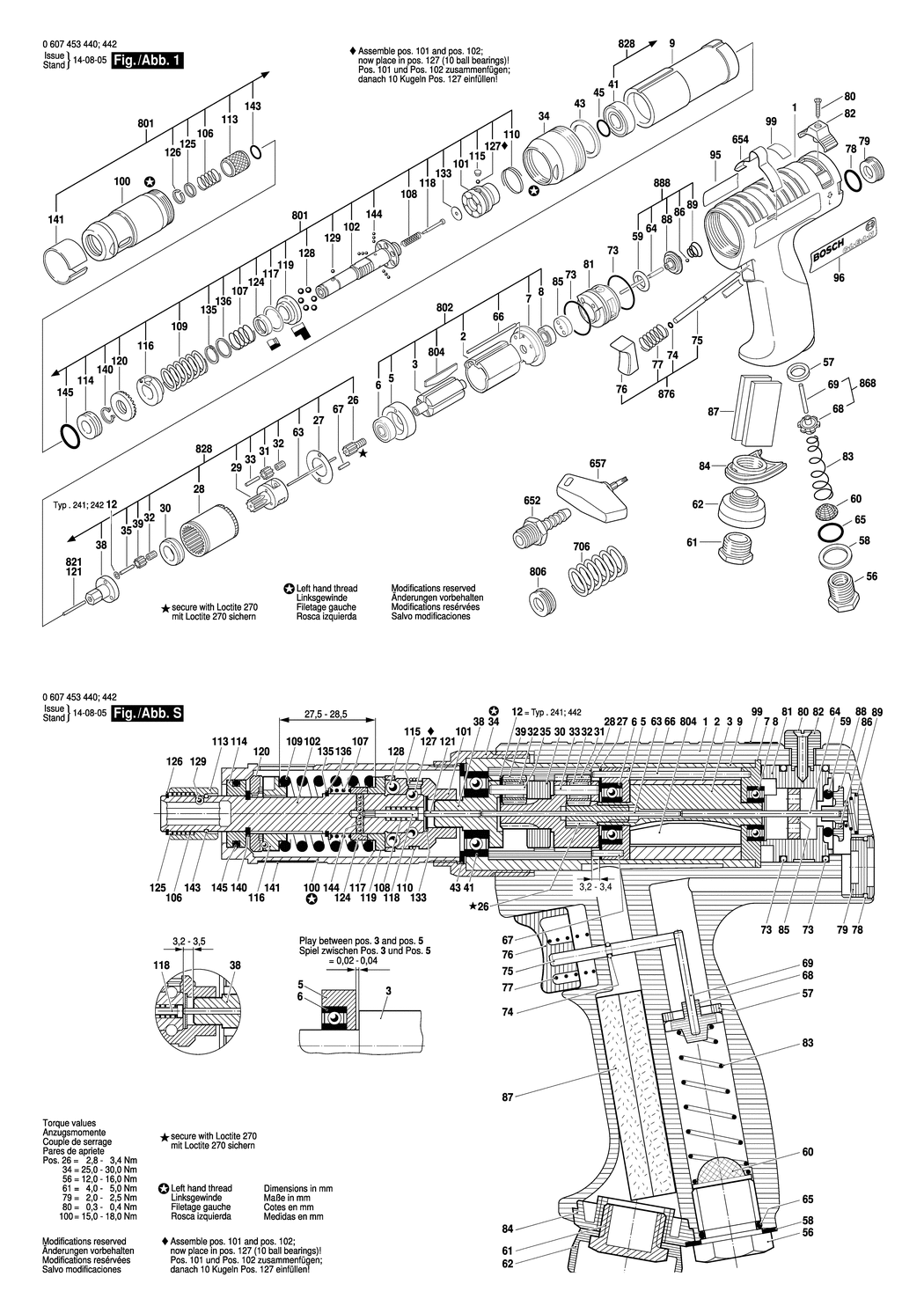

An exploded drawing and listing for the Bosch 180 WATT-SERIE / 0607453441 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108177.A19 3605108177	£31.64	£37.97
2 - STATOR 180W BSD-3604090050.A3 3604090050	£93.88	£112.65
3 - ROTOR BSD-3604220104.A1 3604220104	£179.37	£215.24
5 - BEARING FLANGE BSD-3605700107.A75 3605700107	£37.27	£44.72
6 - GROOVE BALL BEARING 7x19x6 BSD-1900905044.A90 1900905044	£7.36	£8.83
7 - BEARING FLANGE BSD-3605700148.A1 3605700148	£59.53	£71.44
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A166 1900905028	£33.74	£40.49
9 - INSERT PIPE BSD-3600700200.A10 3600700200	£93.88	£112.65
12 - SHIM BSD-3600100030.A11 3600100030	£1.75	£2.10
26 - PINION Z=12 BSD-3606300014.A11 3606300014	£14.75	£17.70
27 - STOP DISC BSD-3600101047.A163 3600101047	£2.16	£2.59
28 - RING GEAR dia19.5 MM BSD-3606334085.A47 3606334085	£8.67	£10.41
29 - PLANETARY-GEAR CARRIER BSD-3606337056.A17 3606337056	£48.38	£58.06
30 - SPACER RING BSD-3600209013.A34 3600209013	£5.58	£6.70
31 - CYLINDRICAL GEAR Z=14 BSD-3606316093.A52 3606316093	£2.61	£3.13
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A205 3600913000	£4.26	£5.11
33 - NEEDLE ROLLER BSD-3603201000.A411 3603201000	£1.75	£2.10
34 - INTERMEDIATE HOUSING BSD-3600700050.A8 3600700050	£23.86	£28.63
35 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A281 1903201042	£2.16	£2.59
38 - PLANETARY-GEAR CARRIER BSD-3606337197.A1 3606337197	£72.18	£86.62
39 - CYLINDRICAL GEAR Z=14 BSD-3606316093.A53 3606316093	£2.61	£3.13
41 - GROOVE BALL BEARING BSD-3600905023.A3 3600905023	£21.52	£25.83
43 - SUPPORTING DISC BSD-3600100084.A1 3600100084	£3.72	£4.47
45 - O-RING 8x2.5 MM BSD-1900210105.A51 1900210105	£1.75	£2.10
56 - FITTING BSD-3603462007.A27 3603462007	£7.36	£8.83
57 - SEALING DISK BSD-3600206005.A28 3600206005	£5.30	£6.36
58 - SHIM WASHER BSD-3600105001.A13 3600105001	£1.75	£2.10
59 - O-RING 10.82x1.78 MM BSD-2600210004.A13 2600210004	£4.26	£5.11
60 - STRAINER BSD-3600002006.A73 3600002006	£3.72	£4.47
61 - SILENCER BSD-3603462000.A173 3603462000	£16.41	£19.69
62 - SCREENING RING BSD-3600521002.A19 3600521002	£2.80	£3.36
63 - STRAIGHT PIN 75 MM BSD-3603201006.A29 3603201006	£3.72	£4.47
64 - CONNECTING ROD BSD-3603100038.A1 3603100038	£12.04	£14.45
65 - O-RING 15x2 MM BSD-1900210112.A97 1900210112	£2.61	£3.13
66 - STRAIGHT PIN BSD-3603201009.A43 3603201009	£5.58	£6.70
67 - HALF-LENGTH GROOVED PIN ISO 8741-2x10-ST BSD-2917690036.A0 2917690036	£1.75	£2.10
68 - VALVE CONE BSD-3608750021.A2 3608750021	£4.26	£5.11
69 - STRAIGHT PIN DIN 6325-3M6x32 BSD-2917550088.A12 2917550088	£1.75	£2.10
73 - O-RING 25.0x2.0 MM BSD-3600210122.A3 3600210122	£4.26	£5.11
74 - O-RING 1.8x1.2 MM BSD-3600210105.A9 3600210105	£2.61	£3.13
75 - STRAIGHT PIN BSD-3603100029.A13 3603100029	£18.96	£22.75
76 - PUSH-BUTTON BSD-3602033005.A2 3602033005	£3.72	£4.47
77 - COMPRESSION SPRING BSD-3604610016.A7 3604610016	£10.10	£12.12
78 - O-RING 16.0x1.0 MM BSD-3600210104.A18 3600210104	£1.75	£2.10
79 - SCREW PLUG BSD-3600313011.A18 3600313011	£3.72	£4.47
80 - TAPPING SCREW DIN 7982-ST2.9x16-F-Z BSD-2912411407.A3 2912411407	£1.75	£2.10
81 - HOUSING BSD-3608750049.A2 3608750049	£14.91	£17.89
82 - CHANGEOVER LEVER BSD-3602000002.A11 3602000002	£3.72	£4.47
83 - COMPRESSION SPRING BSD-3604619017.A11 3604619017	£1.75	£2.10
84 - HOUSING COVER BSD-3605500147.A9 3605500147	£6.52	£7.83
85 - GUIDE PIECE BSD-3600921002.A9 3600921002	£10.10	£12.12
86 - BALL 1.5 MMIIIDIN 5401-ST BSD-1903230026.A2 1903230026	£1.75	£2.10
87 - SILENCER BSD-3601010010.A14 3601010010	£2.16	£2.59
88 - VALVE CONE BSD-3608750040.A1 3608750040	£3.72	£4.47
89 - COMPRESSION SPRING BSD-3604643010.A4 3604643010	£2.61	£3.13
92 - REFERENCE PLATE BSD-3601110574.A14 3601110574	£2.61	£3.13
95 - NAMEPLATE BSD-160111A3HF.A407 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601119136.A8 3601119136	£4.26	£5.11
99 - STICKER BSD-3601110572.A2 3601110572	-
100 - HOUSING BSD-3605125054.A18 3605125054	£45.67	£54.80
101 - CLUTCH ELEMENT BSD-3606445043.A146 3606445043	£102.57	£123.08
102 - OUTPUT SHAFT BSD-3603124022.A10 3603124022	£102.57	£123.08
106 - COMPRESSION SPRING BSD-3604610011.A13 3604610011	£2.80	£3.36
107 - COMPRESSION SPRING BSD-3604615004.A58 3604615004	£1.75	£2.10
108 - COMPRESSION SPRING BSD-3604610057.A27 3604610057	£2.16	£2.59
109 - COMPRESSION SPRING BSD-3604619003.A120 3604619003	£5.58	£6.70
110 - RETAINING RING BSD-3600224053.A42 3600224053	£1.75	£2.10
113 - CLAMP BUSHING BSD-3600499023.A69 3600499023	£18.96	£22.75
114 - PLAIN BEARING BSD-3600921001.A107 3600921001	£10.10	£12.12
115 - SEALING PLATE BSD-3601023011.A117 3601023011	£2.61	£3.13
116 - SETTING RING BSD-3600134014.A91 3600134014	£31.64	£37.97
117 - PLAIN WASHER 0.5 MM BSD-1600101023.A29 1600101023	£1.75	£2.10
118 - ROD BSD-3603003005.A24 3603003005	£13.12	£15.75
119 - SUPPORT DISC BSD-3600190038.A57 3600190038	£18.96	£22.75
120 - CATCH DISK BSD-3603344047.A32 3603344047	£23.86	£28.63
121 - STRAIGHT PIN BSD-3604710063.A0 3604710063	£3.72	£4.47
121 - STRAIGHT PIN BSD-3604710064.A8 3604710064	£3.72	£4.47
121 - STRAIGHT PIN BSD-3604710065.A0 3604710065	£3.72	£4.47
124 - RING BSD-3600250004.A23 3600250004	£8.67	£10.41
125 - BACKUP RING BSD-3600202020.A23 3600202020	£8.67	£10.41
126 - RETAINING RING BSD-3600224006.A168 3600224006	£2.80	£3.36
127 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A182 1903230006	£2.16	£2.59
128 - BALL 4.5 MM III DIN 5401-ST BSD-1903230008.A70 1903230008	£1.75	£2.10
129 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A212 1903230003	£2.61	£3.13
133 - WASHER BSD-3600190024.A1 3600190024	£2.16	£2.59
135 - RETAINING RING BSD-3600224059.A3 3600224059	£3.72	£4.47
136 - PLAIN WASHER BSD-2600101513.A7 2600101513	£1.75	£2.10
140 - LOCKING WASHER DIN 6799-9-FSt BSD-2916080012.A85 2916080012	£1.75	£2.10
141 - PROTECTION SLEEVE BSD-3600400022.A25 3600400022	£18.96	£22.75
143 - O-RING 9.0x1.2 MM BSD-3600210038.A127 3600210038	£2.61	£3.13
144 - BALL 2 MM III DIN 5401 ST BSD-1903230002.A82 1903230002	£2.16	£2.59
145 - O-RING BSD-3600210116.A23 3600210116	£2.80	£3.36
652 - HOSE FITTING BSD-3603386066.A76 3603386066	£14.91	£17.89
654 - SUSPENSION LOOP BSD-3601923019.A4 3601923019	£13.12	£15.75
657 - SCREWDRIVER BSD-3607950027.A125 3607950027	£14.91	£17.89
706 - COMPRESSION SPRING BSD-3604618003.A85 3604618003	£7.36	£8.83
801 - CUTOFF COUPLING SP SET BSD-3607031509.A2 3607031509	£500.46	£600.55
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031504.A7 3607031504	£458.51	£550.21
804 - ASSEMBLY OF SERVICE PARTS BSD-3607031304.A56 3607031304	£27.23	£32.68
806 - SCREW PLUG BSD-3609202745.A2 3609202745	-
821 - ASSEMBLY OF SERVICE PARTS BSD-3603201080.A27 3603201080	£48.38	£58.06
828 - ASSEMBLY OF SERVICE PARTS BSD-3607031644.A4 3607031644	-
868 - VALVE CONE BSD-3608750042.A38 3608750042	£6.52	£7.83
876 - ASSEMBLY OF SERVICE PARTS BSD-3607030332.A16 3607030332	£33.74	£40.49
888 - ASSEMBLY OF SERVICE PARTS BSD-3607031726.A2 3607031726	£37.27	£44.72
