Bosch ---- / 1608180005 / --- Spare Parts

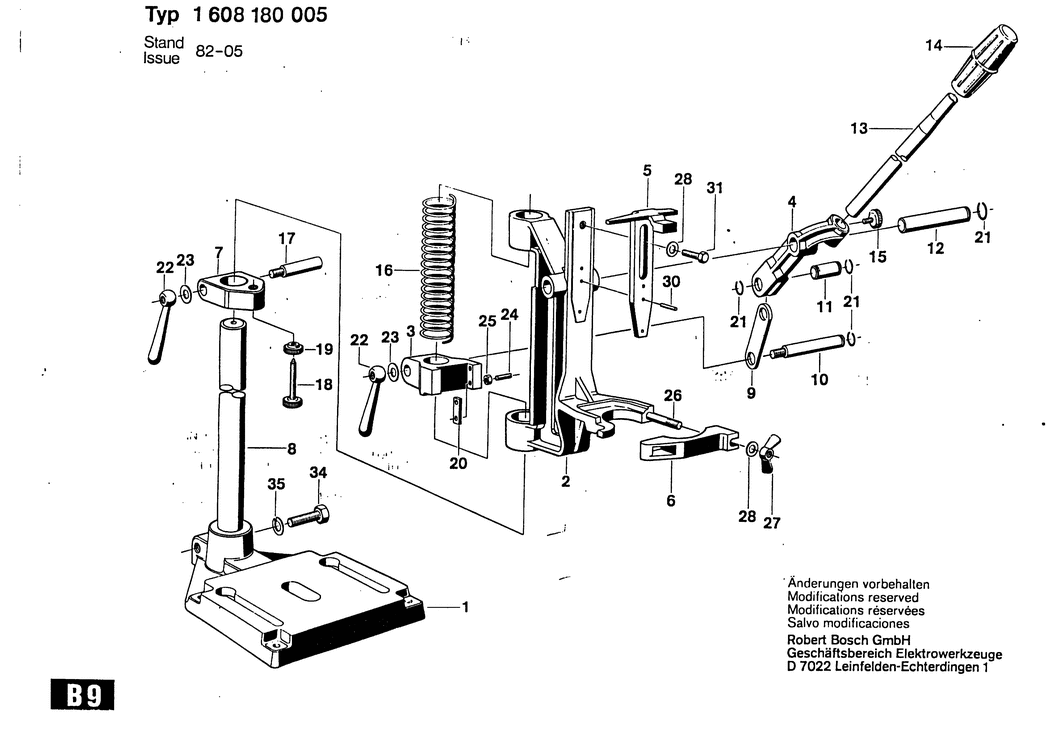

An exploded drawing and listing for the Bosch ---- / 1608180005 / ---

	Ex VAT	Inc VAT
1 - BASE PLATE BSD-1608000011.A3 1608000011	-
2 - GUIDE BLOCK BSD-1609280040.A0 1609280040	-
3 - PUSHER BSD-1609280041.A0 1609280041	-
4 - LEVER BSD-1609223012.A0 1609223012	-
5 - GUSSET BSD-1609280042.A0 1609280042	-
6 - CLAMPING SADDLE BSD-1602329002.A2 1602329002	-
7 - END STOP BSD-1609223014.A0 1609223014	-
8 - PIPE BSD-1609230002.A0 1609230002	-
9 - STRAP BSD-1602316000.A3 1602316000	-
10 - BOLT BSD-1609235003.A0 1609235003	-
11 - PIVOT PIN BSD-1603105003.A3 1603105003	-
12 - PIVOT PIN BSD-1603105003.A4 1603105003	-
13 - FEED LEVER BSD-1601901002.A0 1601901002	-
14 - HANDLE BSD-1609205008.A0 1609205008	-
15 - KNURLED THUMBSCREW BSD-1609234025.A0 1609234025	-
16 - COMPRESSION SPRING BSD-1609246011.A0 1609246011	-
17 - BOLT BSD-1609235004.A0 1609235004	-
18 - KNURLED THUMBSCREW BSD-1609234024.A0 1609234024	-
19 - KNURLED NUT M 8 DIN 467-5 BSD-2915111112.A0 2915111112	-
20 - PLATE BSD-1609210012.A0 1609210012	-
21 - LOCKING WASHER DIN 6799-9-FSt BSD-2916080012.A102 2916080012	£1.75	£2.10
22 - BALL HANDLE BSD-1902026001.A0 1902026001	-
23 - PLAIN WASHER DIN 125-A10.5-ST BSD-2916012018.A1 2916012018	-
24 - SET SCREW DIN 916-M5x18-45H BSD-2912061160.A0 2912061160	-
25 - HEX NUT DIN 934-M 5-m-8 BSD-2915011006.A167 2915011006	-
26 - STUD DIN 939-M8x65-5.6 BSD-2912091259.A0 2912091259	-
27 - WING NUT DIN 315-M8-GT-C BSD-2915191007.A157 2915191007	£3.72	£4.47
28 - PLAIN WASHER DIN 125-A 8.4-ST BSD-2916011016.A81 2916011016	£1.75	£2.10
29 - STRAIGHT PIN DIN 7-6h8x14-C 35K-RIKO BSD-2917500146.A0 2917500146	-
30 - STRAIGHT PIN 4 H 8x14 DIN 7-C35K BSD-2917500096.A0 2917500096	-
31 - HEX SCREW DIN 933-M8x20-8.8 BSD-2911061242.A5 2911061242	-
34 - HEX SCREW DIN 933-M12x35-8.8 BSD-2911062344.A0 2911062344	-
35 - PLAIN WASHER DIN 125-A13-ST BSD-2916011020.A0 2916011020	-
