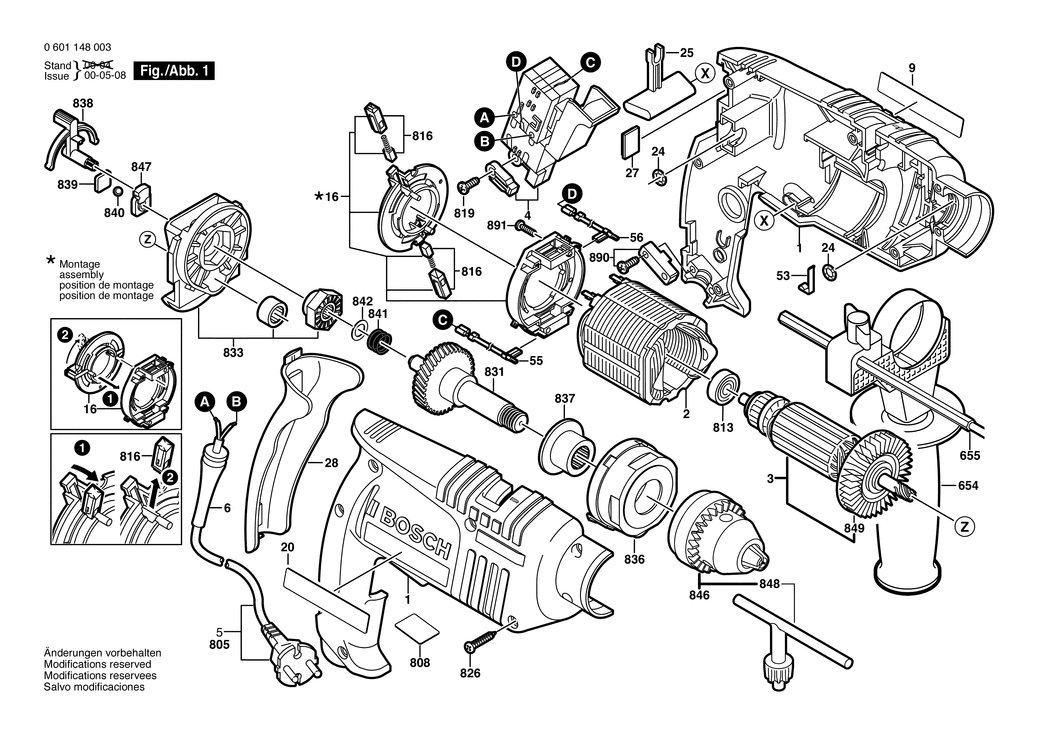

1 - HOUSING SECTION
BSD-2605104711.A4
2605104711
|
£31.64
|
£37.97
|
|
2 - FIELD 220-240V
BSD-2604220688.A57
2604220688
|
£27.23
|
£32.68
|
|
3 - ARMATURE 230-240V
BSD-2604011254.A0
2604011254
|
£37.72
|
£45.27
|
|
4 - SWITCH
BSD-2607200526.A55
2607200526
|
-
|
|
|
6 - GROMMET dia6.2-dia6.9x90 MM
BSD-2600707066.A171
2600707066
|
£2.48
|
£2.97
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601116654.A0
2601116654
|
£3.34
|
£4.01
|
|
16 - BRUSH PLATE
BSD-2604337115.A4
2604337115
|
-
|
|
|
20 - REFERENCE PLATE
BSD-2601117612.A0
2601117612
|
-
|
|
|
24 - O-RING 5.0x1.5 MM
BSD-1900210000.A157
1900210000
|
£1.75
|
£2.10
|
|
25 - DUMMY PLUG
BSD-2601099104.A0
2601099104
|
-
|
|
|
27 - DAMPING ELEMENT
BSD-2603239024.A88
2603239024
|
£1.75
|
£2.10
|
|
28 - HANDLE COVER
BSD-2608040177.A23
2608040177
|
£5.87
|
£7.04
|
|
53 - CONTACT STRAP
BSD-2601329043.A111
2601329043
|
£1.32
|
£1.58
|
|
55 - PVC-INSULATED CABLE L=95 MM
BSD-1614431025.A190
1614431025
|
£2.61
|
£3.13
|
|
56 - PVC-INSULATED CABLE L=120 MM
BSD-2604448228.A22
2604448228
|
£2.16
|
£2.59
|
|
654 - AUXILIARY HANDLE dia43 MM
BSD-2602025118.A93
2602025118
|
£14.91
|
£17.89
|
|
655 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001009.A465
1613001009
|
£3.72
|
£4.47
|
|
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm
BSD-1607000385.A88
1607000385
|
£14.91
|
£17.89
|
|
808 - MARKING PLATE
BSD-2601117445.A0
2601117445
|
-
|
|
|
813 - BALL BEARING 7x19x6
BSD-2600905032.A2162
2600905032
|
£5.30
|
£6.36
|
|
816 - CARBON-BRUSH SET
BSD-2604321946.A3
2604321946
|
£10.82
|
£12.99
|
|
819 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A277
2910611006
|
£1.75
|
£2.10
|
|
826 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A483
2912401020
|
£2.16
|
£2.59
|
|
831 - DRILLING SPINDLE
BSD-2606135932.A5
2606135932
|
-
|
|
|
833 - BEARING BRACKET
BSD-2605807937.A14
2605807937
|
£21.52
|
£25.83
|
|
836 - GEAR COVER
BSD-2605808084.A7
2605808084
|
£3.72
|
£4.47
|
|
837 - FLANGED BEARING
BSD-2605805009.A0
2605805009
|
-
|
|
|
838 - INDEXING DISK
BSD-2601990027.A12
2601990027
|
£1.75
|
£2.10
|
|
839 - PRESSURE PLATE
BSD-2601074004.A3
2601074004
|
£1.75
|
£2.10
|
|
840 - BALL DIN 5401-5 G28
BSD-1903230009.A826
1903230009
|
£1.75
|
£2.10
|
|
841 - COMPRESSION SPRING
BSD-2604616006.A323
2604616006
|
£1.75
|
£2.10
|
|
842 - SHIM 0.3 MM
BSD-2600101047.A189
2600101047
|
£1.75
|
£2.10
|
|
846 - KEY CHUCK
BSD-2608571065.A4
2608571065
|
£37.27
|
£44.72
|
|
847 - FRAME
BSD-2608040120.A161
2608040120
|
£2.61
|
£3.13
|
|
848 - CHUCK WRENCH SG2
BSD-2607950007.A14
2607950007
|
£6.52
|
£7.83
|
|
849 - FAN
BSD-2606610093.A73
2606610093
|
£2.80
|
£3.36
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A254
2607001305
|
£4.26
|
£5.11
|
|
891 - CROSS RECESSED-HEAD SCREW M3x5
BSD-2603410046.A82
2603410046
|
£2.16
|
£2.59
|
|
