Bosch GBH 8-45 DV / 3611B65060 / GB 110 Volt Spare Parts

Home Details Reviews Delivery

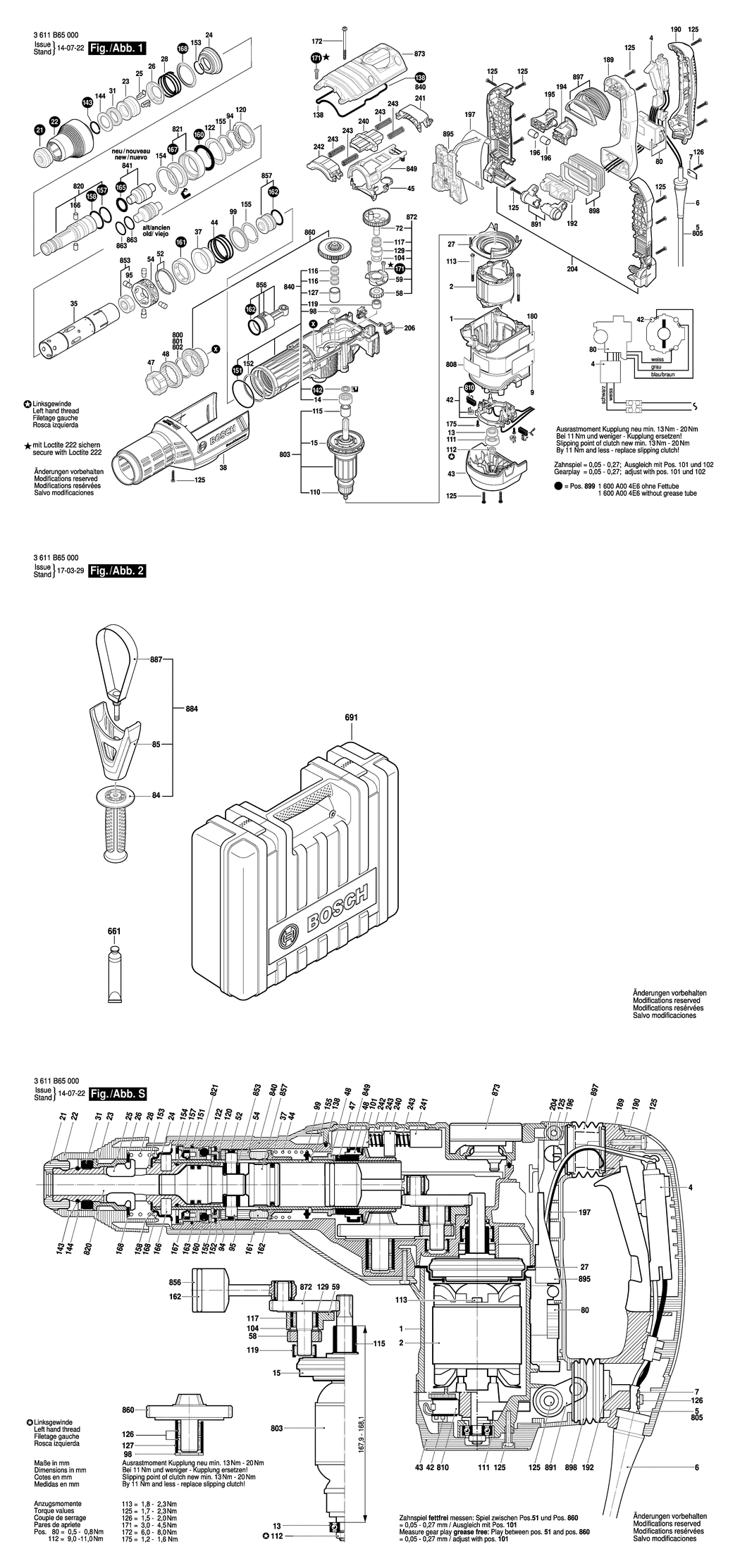

An exploded drawing and listing for the Bosch GBH 8-45 DV / 3611B65060 / GB 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615108165.A14 1615108165	£31.64	£37.97
2 - FIELD 100-110V BSD-1614220140.A2 1614220140	£33.74	£40.49
4 - SWITCH BSD-1617200130.A2 1617200130	£39.17	£47.00
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.5mm H07 RN-F BSD-1604460201.A17 1604460201	£37.27	£44.72
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A31 1610703053	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302018.A135 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-160111C0U7.A2 160111C0U7	£3.72	£4.47
13 - GROOVE BALL BEARING 8x24x8 BSD-1610900026.A79 1610900026	£12.04	£14.45
14 - NEEDLE-ROLLER BEARING BSD-1610910089.A3 1610910089	-
15 - FAN BSD-1616610109.A12 1616610109	£16.41	£19.69
21 - PROTECTIVE CAP BSD-1610508038.A54 1610508038	£8.13	£9.76
22 - PROTECTION SLEEVE BSD-1610591051.A12 1610591051	£12.04	£14.45
23 - STOP SLEEVE BSD-1610520006.A16 1610520006	£18.96	£22.75
24 - HEADED BUSH BSD-1610500025.A12 1610500025	£10.10	£12.12
25 - STOPPING DEVICE BSD-1612300027.A7 1612300027	£11.30	£13.56
26 - INDEXING DISK BSD-1600A019WL.A1 1600A019WL	£5.01	£6.01
27 - AIR-DEFLECTOR RING BSD-160059105C.A4 160059105C	£2.61	£3.13
28 - COMPRESSION SPRING BSD-1614621010.A13 1614621010	£4.26	£5.11
31 - DAMPING RING BSD-1610290129.A7 1610290129	£6.52	£7.83
35 - HAMMER PIPE BSD-1615806249.A13 1615806249	£98.11	£117.73
37 - CONTROL BUSHING BSD-1610322018.A13 1610322018	£7.36	£8.83
38 - COVERING HOOD BSD-1615190177.A11 1615190177	£31.64	£37.97
42 - BRUSH HOLDER BSD-1614336090.A4 1614336090	£45.67	£54.80
43 - BRUSH-COVER BSD-1615500435.A15 1615500435	£11.30	£13.56
44 - COMPRESSION SPRING BSD-1614621020.A7 1614621020	£2.61	£3.13
45 - HOLDING-DOWN-APPLIANCE BSD-1610591052.A4 1610591052	£2.16	£2.59
47 - GEAR SLEEVE BSD-1610300076.A8 1610300076	£8.67	£10.41
48 - CLUTCH SLEEVE BSD-1619990177.A8 1619990177	£10.10	£12.12
52 - RETAINING SNAP RING BSD-1610224015.A13 1610224015	£1.75	£2.10
54 - SPACER TUBE BSD-1610190071.A15 1610190071	£5.87	£7.04
58 - CYLINDRICAL GEAR BSD-1616317620.A3 1616317620	£13.12	£15.75
59 - BEARING PEDESTAL BSD-1615805074.A14 1615805074	£10.10	£12.12
72 - ECCENTRIC COG WHEEL BSD-1616317090.A13 1616317090	£68.42	£82.10
80 - SPEED GOVERNOR BSD-16072335R3.A1 16072335R3	£63.51	£76.21
84 - AUXILIARY HANDLE BSD-160202507H.A433 160202507H	£11.30	£13.56
85 - SUPPORT CLAMP BSD-1618040095.A8 1618040095	£5.58	£6.70
94 - SUPPORTING DISC BSD-1610290111.A15 1610290111	£2.16	£2.59
95 - DRIVING PIN BSD-1613120023.A7 1613120023	£4.26	£5.11
98 - SHIM RING 1.0 MM BSD-1610101015.A37 1610101015	£1.75	£2.10
99 - BACKUP RING BSD-1600220029.A6 1600220029	£2.80	£3.36
104 - STOP DISC BSD-1610190027.A22 1610190027	£5.58	£6.70
110 - SEAL RING BSD-1610190073.A1 1610190073	£1.75	£2.10
111 - BUSHING BSD-1610290046.A15 1610290046	£2.80	£3.36
112 - HEX NUT BSD-1613300007.A4 1613300007	£1.75	£2.10
113 - TAPPING SCREW B 4.8x68 MM BSD-1613412001.A112 1613412001	£1.75	£2.10
115 - BUSHING BSD-1610300086.A3 1610300086	£5.58	£6.70
116 - NEEDLE-ROLLER ASSEMBLY BSD-1610913029.A12 1610913029	£4.26	£5.11
117 - NEEDLE-ROLLER ASSEMBLY BSD-1610913023.A12 1610913023	£18.96	£22.75
119 - NEEDLE-ROLLER BEARING BSD-1610910081.A4 1610910081	£14.91	£17.89
120 - SPACER TUBE BSD-1610190080.A7 1610190080	£12.04	£14.45
122 - SPACER RING BSD-1610290128.A9 1610290128	£7.36	£8.83
125 - TORX OVAL-HEAD SCREW BSD-1613435040.A20 1613435040	£2.16	£2.59
126 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1018 2603490023	£1.75	£2.10
127 - BUSHING BSD-1610300079.A0 1610300079	£4.26	£5.11
129 - BUSHING BSD-1610300080.A8 1610300080	£4.26	£5.11
138 - SEALING FRAME BSD-1611015064.A12 1611015064	£6.52	£7.83
142 - ROTARY SHAFT LIP SEAL BSD-1610290112.A1 1610290112	£4.26	£5.11
143 - RETAINING RING BSD-1614601072.A15 1614601072	£2.61	£3.13
144 - SUPPORTING DISC BSD-1610103025.A7 1610103025	£3.72	£4.47
151 - O-RING BSD-1610210222.A9 1610210222	£1.75	£2.10
152 - RETAINING RING BSD-1614601073.A1 1614601073	£1.75	£2.10
153 - RETAINING RING DIN 7993 A 30 BSD-2916540017.A12 2916540017	£2.16	£2.59
154 - SPRING RETAINING RING DIN 472 62x2 MM BSD-2916660027.A16 2916660027	£4.26	£5.11
155 - RETAINING RING BSD-1614601074.A15 1614601074	£1.75	£2.10
157 - O-RING 33.0x2.0 MM BSD-1610210103.A48 1610210103	£2.61	£3.13
158 - O-RING BSD-1610210224.A7 1610210224	£1.75	£2.10
160 - O-RING BSD-1610210246.A12 1610210246	£1.75	£2.10
161 - DAMPING RING BSD-1610210227.A9 1610210227	£8.67	£10.41
162 - O-RING BSD-1600210080.A12 1600210080	£2.61	£3.13
165 - SEAL RING BSD-1610290125.A7 1610290125	£11.30	£13.56
166 - CYLINDRICAL ROLLER BSD-1613200020.A8 1613200020	£2.80	£3.36
167 - ROTARY SHAFT LIP SEAL BSD-161029012A.A8 161029012A	£4.26	£5.11
168 - PACKING WASHER BSD-1610206027.A3 1610206027	£2.61	£3.13
171 - TORX SOCKET BUTTON SCREW BSD-1613414026.A15 1613414026	£2.61	£3.13
172 - TORX OVAL-HEAD SCREW BSD-1613435041.A9 1613435041	£1.75	£2.10
175 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A355 2603490021	£1.75	£2.10
189 - HANDLE BSD-1615133038.A8 1615133038	£14.91	£17.89
190 - HANDLE COVER BSD-1615500438.A2 1615500438	£16.41	£19.69
192 - ROCKER FOOT BSD-1614611028.A17 1614611028	£5.58	£6.70
194 - SCREW PLATE BSD-1610099018.A1 1610099018	£2.16	£2.59
195 - SCREW PLATE BSD-1610099019.A11 1610099019	£2.16	£2.59
196 - DAMPING RUBBER BSD-1610026004.A3 1610026004	£1.75	£2.10
197 - LEAF SPRING BSD-1616232000.A9 1616232000	£11.30	£13.56
204 - REAR HOUSING SECTION BSD-1615102162.A0 1615102162	£21.52	£25.83
206 - HOLDING STRIP BSD-1612386006.A0 1612386006	£1.75	£2.10
240 - COUNTERWEIGHT BSD-1600A000K3.A2 1600A000K3	£10.10	£12.12
241 - GUIDE PIECE BSD-1615190181.A2 1615190181	£2.61	£3.13
242 - GUIDE PIECE BSD-1615190182.A2 1615190182	£2.61	£3.13
243 - COMPRESSION SPRING BSD-1614621013.A1 1614621013	£2.61	£3.13
661 - GREASE TUBE 30 ML BSD-1615430010.A250 1615430010	£6.52	£7.83
691 - CARRYING CASE BSD-161543851A.A10 161543851A	£45.67	£54.80
800 - SHIM 0.2 MM BSD-1600A0037C.A8 1600A0037C	-
801 - SHIM 0.45 MM BSD-1610102096.A0 1610102096	£1.75	£2.10
802 - SHIM 0.30 MM BSD-1610102095.A8 1610102095	£1.75	£2.10
803 - ARMATURE 110V BSD-1614010279.A2 1614010279	£179.37	£215.24
808 - NAMEPLATE BSD-160111A3H5.A410 160111A3H5	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1617014145.A4 1617014145	£18.96	£22.75
820 - TOOLHOLDER BSD-1618597102.A4 1618597102	£120.11	£144.13
821 - PLAIN BEARING BSD-1610508058.A0 1610508058	£27.23	£32.68
840 - IMPACT MECHANISM HOUSING BSD-1617000A29.A4 1617000A29	£179.37	£215.24
841 - STRIKER PIN BSD-1617000A4R.A4 1617000A4R	£54.42	£65.30
849 - CONTROL FORK BSD-1617000A31.A4 1617000A31	£7.36	£8.83
853 - GUIDE BUSHING BSD-1610231004.A5 1610231004	£27.23	£32.68
856 - HAMMER PISTON BSD-1617000A32.A12 1617000A32	£48.38	£58.06
857 - STRIKER BSD-1617000A33.A4 1617000A33	£27.23	£32.68
860 - SPUR WHEEL CLUTCH BSD-1607000C3S.A2 1607000C3S	£171.57	£205.88
863 - O-RING BSD-1610210229.A3 1610210229	£2.16	£2.59
872 - ECCENTRIC BSD-1617000A35.A12 1617000A35	£103.14	£123.77
873 - HOUSING COVER BSD-1617000A36.A4 1617000A36	£48.38	£58.06
884 - AUXILIARY HANDLE BSD-1612025004.A7 1612025004	£45.67	£54.80
887 - CLAMPING BAND dia87 MM BSD-1617000807.A17 1617000807	£18.96	£22.75
891 - ROCKER ARM BSD-1612099005.A1 1612099005	£11.30	£13.56
895 - DIAPHRAGM BSD-1613120024.A5 1613120024	£31.64	£37.97
897 - BELLOWS BSD-1610415005.A2 1610415005	£10.10	£12.12
898 - BELLOWS BSD-1610415004.A10 1610415004	£10.10	£12.12
899 - SERVICE PACKAGE BSD-1600A004E6.A0 1600A004E6	£59.53	£71.44
