Dewalt DDF5120550 Type 1 Nailer Spare Parts

Home Details Reviews Delivery

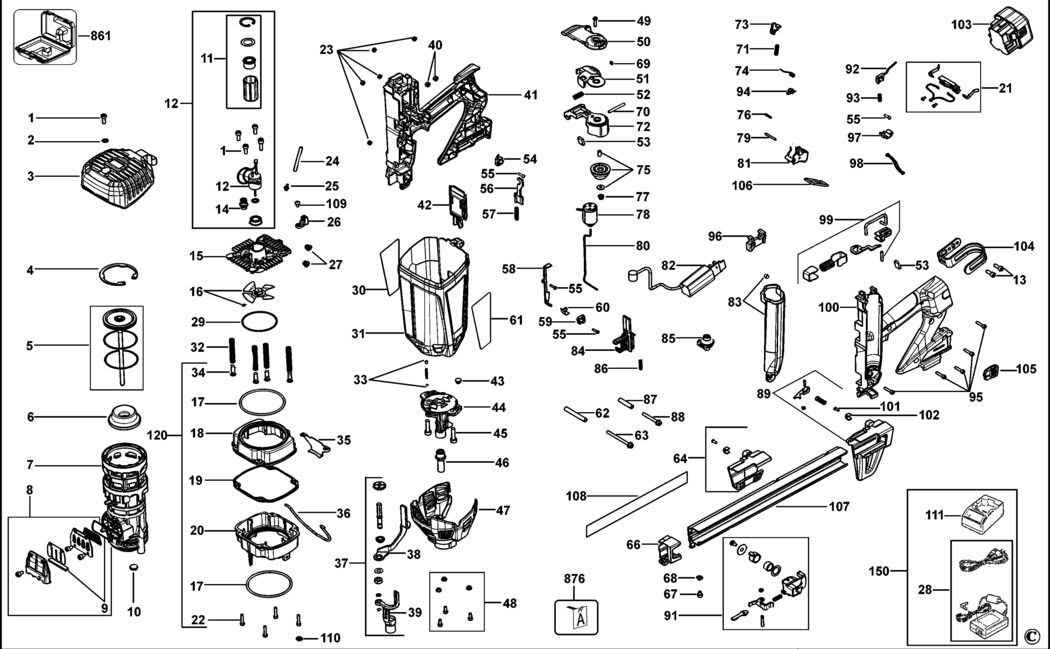

An exploded drawing and spare parts listing for the Dewalt DDF5120550 Type 1 Nailer

	Ex VAT	Inc VAT
1 - BOLT BDE-56100-PWR.A1 56100-PWR	£1.50	£1.80
2 - WASHER BDE-56101-PWR.A1 56101-PWR	£5.88	£7.06
3 - END CAP BDE-56103-PWR.A1 56103-PWR	£34.00	£40.80
4 - RING BDE-55807-PWR.A2 55807-PWR	£9.41	£11.29
5 - PISTON SA BDE-56361-PWR.A0 56361-PWR	£174.63	£209.56
6 - BUMPER BDE-56150-PWR.A1 56150-PWR	£24.39	£29.27
7 - CYLINDER BDE-56152-PWR.A1 56152-PWR	£192.14	£230.57
8 - VALVE REED BDE-56362-PWR.A2 56362-PWR	£37.35	£44.82
9 - VALVE REED BDE-56360-PWR.A2 56360-PWR	£10.85	£13.02
10 - BUMPER BDE-56192-PWR.A2 56192-PWR	£1.50	£1.80
11 - BUFFER BDE-56367-PWR.A1 56367-PWR	£19.90	£23.88
12 - MOTOR SA BDE-56356-PWR.A0 56356-PWR	£245.11	£294.13
13 - SCREW BDE-56245-PWR.A1 56245-PWR	£1.50	£1.80
14 - PLUG BDE-56114-PWR.A1 56114-PWR	£17.48	£20.97
15 - CYLINDER HEAD BDE-56115-PWR.A1 56115-PWR	£41.24	£49.49
16 - FAN SA BDE-56369-PWR.A1 56369-PWR	£30.08	£36.10
17 - O RING BDE-56132-PWR.A2 56132-PWR	£34.00	£40.80
18 - HOUSING UPPER BDE-56134-PWR.A0 56134-PWR	£135.36	£162.43
19 - SEAL BDE-56136-PWR.A2 56136-PWR	£37.35	£44.82
20 - HOUSING LOWER BDE-56500-PWR.A1 56500-PWR	£414.90	£497.88
21 - BATTERY CONNECTOR BDE-56354-PWR.A0 56354-PWR	£30.08	£36.10
22 - SCREW BDE-56140-PWR.A0 56140-PWR	£1.50	£1.80
23 - NUT M4 BDE-56380-PWR.A1 56380-PWR	£1.50	£1.80
24 - TUBE BDE-56119-PWR.A1 56119-PWR	£9.41	£11.29
25 - CONNECTOR BDE-56120-PWR.A1 56120-PWR	£3.30	£3.96
26 - HOLDER BDE-56126-PWR.A0 56126-PWR	£2.26	£2.71
27 - NUT M5 BDE-56174-PWR.A1 56174-PWR	£1.50	£1.80
29 - O RING BDE-56122-PWR.A0 56122-PWR	£4.69	£5.63
31 - HOUSING BDE-DW56502.A0 DW56502	£99.47	£119.36
32 - SPRING BDE-56358-PWR.A2 56358-PWR	£9.41	£11.29
33 - STOP BDE-56355-PWR.A2 56355-PWR	£7.18	£8.62
34 - SPRING GUIDE BDE-56359-PWR.A0 56359-PWR	£24.39	£29.27
35 - ADJUSTER PLATE BDE-56144-PWR.A1 56144-PWR	£7.18	£8.62
36 - ARM BDE-56501-PWR.A1 56501-PWR	£7.85	£9.42
37 - ADJUSTER DEPTH BDE-DW56511.A0 DW56511	£55.30	£66.36
38 - ACTUATION ARM BDE-56270-PWR.A1 56270-PWR	£14.57	£17.48
39 - ACTUATION ARM BDE-56278-PWR.A1 56278-PWR	£37.35	£44.82
40 - NUT M5 BDE-56166-PWR.A1 56166-PWR	£1.50	£1.80
41 - HANDLE RH BDE-56167-PWR.A1 56167-PWR	£44.14	£52.97
42 - GUIDE BDE-56170-PWR.A0 56170-PWR	£4.69	£5.63
43 - BUFFER BDE-56184-PWR.A1 56184-PWR	£1.50	£1.80
44 - NOSE BDE-56186-PWR.A1 56186-PWR	£192.14	£230.57
45 - BOLT BDE-56188-PWR.A1 56188-PWR	£1.50	£1.80
46 - NOSE BDE-56190-PWR.A1 56190-PWR	£84.42	£101.30
47 - COVER BDE-56194-PWR.A1 56194-PWR	£44.14	£52.97
48 - SCREW KIT BDE-56368-PWR.A1 56368-PWR	£18.91	£22.69
49 - SCREW BDE-56279-PWR.A1 56279-PWR	£14.57	£17.48
50 - CAP BDE-56281-PWR.A1 56281-PWR	£16.03	£19.24
51 - LATCH BDE-DW56504.A1 DW56504	£24.39	£29.27
52 - SPRING COMPRESSION BDE-56285-PWR.A1 56285-PWR	£3.80	£4.56
53 - PROTECTOR BDE-56239-PWR.A1 56239-PWR	£1.50	£1.80
54 - COVER BDE-56299-PWR.A1 56299-PWR	£25.70	£30.84
55 - SCREW BDE-56208-PWR.A1 56208-PWR	£1.50	£1.80
56 - LEVER BDE-56209-PWR.A2 56209-PWR	£3.80	£4.56
57 - SPRING COMPRESSION BDE-56211-PWR.A1 56211-PWR	£3.30	£3.96
58 - COVER BDE-56201-PWR.A1 56201-PWR	£2.78	£3.34
59 - SWITCH BDE-56213-PWR.A1 56213-PWR	£25.70	£30.84
60 - LEVER BDE-56212-PWR.A1 56212-PWR	£1.50	£1.80
62 - SHAFT BDE-56193-PWR.A0 56193-PWR	£14.57	£17.48
63 - SCREW BDE-56331-PWR.A1 56331-PWR	£3.30	£3.96
64 - MAGAZINE INTERFACE BDE-56312-PWR.A1 56312-PWR	£19.90	£23.88
66 - PLATE BDE-56371-PWR.A1 56371-PWR	£10.85	£13.02
67 - SCREW BDE-56326-PWR.A1 56326-PWR	£1.50	£1.80
68 - NUT M5 BDE-56324-PWR.A1 56324-PWR	£1.50	£1.80
69 - O RING BDE-56185-PWR.A1 56185-PWR	£1.50	£1.80
70 - PIN BDE-56287-PWR.A1 56287-PWR	£3.80	£4.56
71 - SPRING COMPRESSION BDE-56224-PWR.A1 56224-PWR	£1.50	£1.80
72 - CAP BDE-56289-PWR.A1 56289-PWR	£17.48	£20.97
73 - LEVER BDE-56222-PWR.A2 56222-PWR	£5.88	£7.06
74 - SPRING TORSION BDE-56230-PWR.A1 56230-PWR	£1.50	£1.80
75 - MOUNT BDE-56293-PWR.A1 56293-PWR	£10.85	£13.02
76 - PIN BDE-56236-PWR.A1 56236-PWR	£1.82	£2.19
77 - VALVE BDE-56297-PWR.A1 56297-PWR	£1.50	£1.80
78 - SOLENOID ASSEMBLY BDE-56200-PWR.A1 56200-PWR	£258.10	£309.72
79 - PIN BDE-56251-PWR.A1 56251-PWR	£3.80	£4.56
80 - PIPE BDE-56327-PWR.A1 56327-PWR	£37.35	£44.82
81 - TRIGGER BDE-56232-PWR.A1 56232-PWR	£7.85	£9.42
82 - CONTROL SA BDE-56241-PWR.A1 56241-PWR	£232.38	£278.85
83 - COVER BDE-56515-PWR.A1 56515-PWR	£10.85	£13.02
84 - CONTACT PLATE BDE-56215-PWR.A1 56215-PWR	£12.17	£14.60
85 - CONNECTOR BDE-56204-PWR.A1 56204-PWR	£80.98	£97.18
86 - SPRING COMPRESSION BDE-56329-PWR.A1 56329-PWR	£3.80	£4.56
87 - SPACER BDE-56181-PWR.A1 56181-PWR	£12.17	£14.60
88 - SCREW BDE-56183-PWR.A1 56183-PWR	£1.50	£1.80
89 - FOOT SA BDE-56352-PWR.A0 56352-PWR	£58.69	£70.43
91 - FOLLOWER BDE-56353-PWR.A2 56353-PWR	£60.94	£73.13
92 - TRIGGER BDE-56216-PWR.A2 56216-PWR	£25.70	£30.84
93 - SPRING COMPRESSION BDE-56218-PWR.A2 56218-PWR	£1.50	£1.80
94 - SPRING TORSION BDE-56226-PWR.A1 56226-PWR	£1.50	£1.80
95 - SCREW BDE-56248-PWR.A1 56248-PWR	£1.50	£1.80
96 - LATCH BDE-56253-PWR.A1 56253-PWR	£4.69	£5.63
97 - TRIGGER BDE-56220-PWR.A1 56220-PWR	£1.50	£1.80
98 - CONNECTING WIRE BDE-56238-PWR.A1 56238-PWR	£5.88	£7.06
99 - LOCKING DEVICE BDE-56363-PWR.A0 56363-PWR	£24.39	£29.27
100 - HANDLE LH BDE-56249-PWR.A1 56249-PWR	£51.90	£62.28
101 - SCREW BDE-56308-PWR.A1 56308-PWR	£1.50	£1.80
102 - STOP BDE-56310-PWR.A1 56310-PWR	£2.26	£2.71
104 - HOOK BDE-56247-PWR.A1 56247-PWR	£14.57	£17.48
105 - COVER BDE-DW56508.A0 DW56508	£7.18	£8.62
106 - BAR LOCKING BDE-56237-PWR.A1 56237-PWR	£3.80	£4.56
107 - MAGAZINE SA BDE-56346-PWR.A1 56346-PWR	£108.20	£129.84
108 - LABEL BDE-56393-PWR.A1 56393-PWR	£5.88	£7.06
109 - LOCKING SCREW BDE-56124-PWR.A2 56124-PWR	£1.50	£1.80
110 - COVER BDE-56370-PWR.A1 56370-PWR	£7.85	£9.42
111 - BASE Charger Base BDE-DW56509.A1 DW56509	£126.63	£151.96
861 - KITBOX BDE-DW56514.A1 DW56514	£71.44	£85.73
876 - RUBBER PAD BDE-56516-PWR.A1 56516-PWR	£7.18	£8.62
