Dewalt DW702 Type 1 Mitre Saw Spare Parts

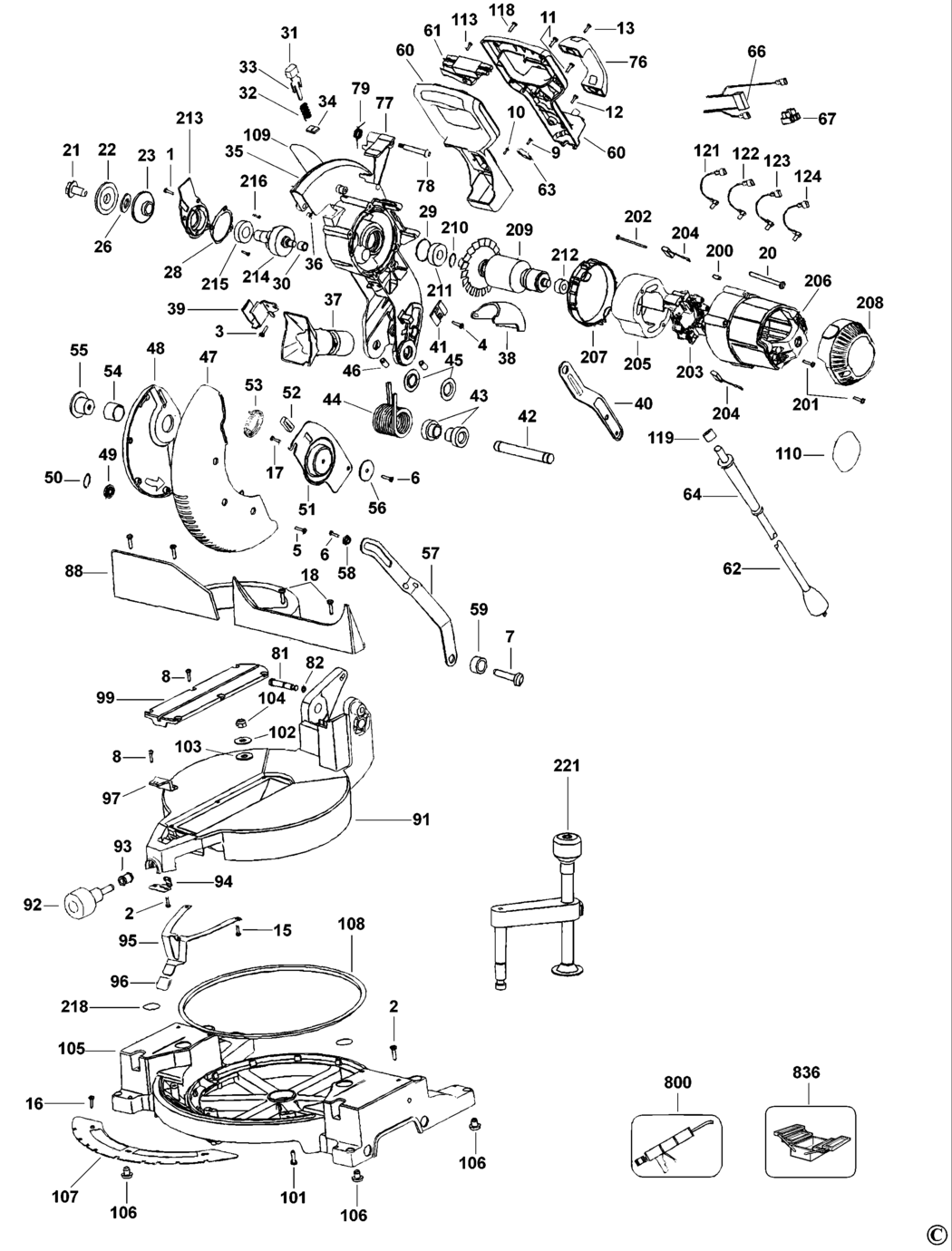

An exploded drawing and spare parts listing for the Dewalt DW702 Type 1 Mitre Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-330045-14.A90 330045-14	£1.50	£1.80
2 - SCREW.SPECIAL BDE-330045-23.A73 330045-23	£1.50	£1.80
3 - SCREW BDE-330045-13.A49 330045-13	£1.50	£1.80
4 - SCREW BDE-098102-08.A10 098102-08	£1.42	£1.70
5 - SCREW BDE-394211-00.A5 394211-00	£1.42	£1.70
6 - SCREW BDE-151891-00.A15 151891-00	£1.50	£1.80
7 - SCREW BDE-330045-32.A33 330045-32	£1.50	£1.80
8 - SCREW BDE-330045-05.A77 330045-05	£1.50	£1.80
9 - SCREW BDE-330019-02.A142 330019-02	£1.50	£1.80
10 - SCREW BDE-330045-44.A51 330045-44	£1.50	£1.80
11 - SCREW BDE-330019-32.A108 330019-32	£1.50	£1.80
12 - SCREW BDE-330045-08.A39 330045-08	£1.50	£1.80
13 - SCREW BDE-330019-22.A52 330019-22	£1.50	£1.80
15 - SCREW BDE-330045-22.A6 330045-22	£1.50	£1.80
16 - SCREW BDE-604410-00.A4 604410-00	£1.50	£1.80
17 - SCREW BDE-394589-01.A44 394589-01	£1.50	£1.80
18 - SCREW BDE-330045-26.A24 330045-26	£1.82	£2.19
20 - SCREW BDE-98094-55.A34 98094-55	£1.50	£1.80
21 - BLADE BOLT BDE-869245-00.A33 869245-00	£3.54	£4.25
22 - CLAMP OUTER BDE-151962-01.A9 151962-01	£3.80	£4.56
23 - WASHER INNER CLAMP BDE-141987-06.A0 141987-06	£10.85	£13.02
26 - ADAPTOR BDE-393868-00.A14 393868-00	£5.88	£7.06
28 - GASKET BDE-391632-00.A6 391632-00	£1.50	£1.80
29 - SEAL BDE-701297-00.A36 701297-00	£1.50	£1.80
30 - BEARING NEEDLE BDE-330004-06.A30 330004-06	£1.50	£1.80
31 - BUTTON BDE-145350-03.A6 145350-03	£1.50	£1.80
32 - SPRING BDE-398736-00.A6 398736-00	£1.50	£1.80
33 - LOCK BDE-146714-00.A10 146714-00	£1.50	£1.80
34 - WIPER BDE-146710-00.A9 146710-00	£1.50	£1.80
35 - NO LONGER AVAILABLE BDE-000000-00.A23719 000000-00	-
36 - INSERT BDE-148608-00.A5 148608-00	£1.50	£1.80
37 - CHUTE BDE-394496-00.A6 394496-00	£5.88	£7.06
38 - DEFLECTOR BDE-148520-00.A17 148520-00	£1.66	£1.99
39 - GUARD BDE-393731-00.A10 393731-00	£2.78	£3.34
40 - WRENCH BDE-145378-01.A17 145378-01	£1.50	£1.80
41 - CLIP BDE-147190-01.A5 147190-01	£1.78	£2.13
42 - SHAFT BDE-146751-00.A8 146751-00	£3.30	£3.96
43 - SPACER BDE-398251-00.A9 398251-00	£1.50	£1.80
44 - SPRING BDE-391606-00.A6 391606-00	£24.39	£29.27
45 - WASHER BDE-148296-00.A54 148296-00	£1.50	£1.80
46 - SCREW BDE-150075-00.A4 150075-00	£1.50	£1.80
47 - GUARD BDE-391612-01.A5 391612-01	-
48 - NO LONGER AVAILABLE BDE-000000-00.A23720 000000-00	-
49 - ROLLER BDE-146774-00.A59 146774-00	£1.82	£2.19
50 - CIRCLIP BDE-603232-00.A6 603232-00	£1.50	£1.80
51 - PIVOT BDE-399139-00.A3 399139-00	£12.17	£14.60
52 - BUMPER BDE-146768-00.A7 146768-00	£1.66	£1.99
53 - SPRING BDE-398735-00.A4 398735-00	£1.78	£2.13
54 - SLEEVE BDE-148295-00.A24 148295-00	£1.66	£1.99
55 - RETAINING PLATE BDE-146750-01.A0 146750-01	£9.41	£11.29
56 - WASHER BDE-148612-00.A11 148612-00	-
57 - LINK BDE-391630-00.A6 391630-00	£16.03	£19.24
58 - BUSH BDE-146740-01.A33 146740-01	£3.80	£4.56
59 - BUSHING BDE-399042-00.A12 399042-00	£3.80	£4.56
60 - HANDLE SA BDE-393960-00.A5 393960-00	£25.70	£30.84
61 - SWITCH BDE-391926-01.A7 391926-01	£25.70	£30.84
62 - CORDSET LX BDE-330061-20.A44 330061-20	£50.60	£60.72
62 - NO LONGER AVAILABLE GB BDE-000000-00.A23721 000000-00	-
63 - CORD CLAMP BDE-003618-00.A16 003618-00	£1.50	£1.80
64 - CORD PROTECTOR BDE-445338-00.A27 445338-00	£1.50	£1.80
66 - NO LONGER AVAILABLE BDE-000000-00.A23722 000000-00	-
67 - TERMINAL BLOCK BDE-393520-00.A1 393520-00	£5.88	£7.06
76 - HANDLE BDE-396375-00.A1 396375-00	£3.30	£3.96
77 - LEVER BDE-392363-00.A0 392363-00	-
78 - BOLT BDE-152852-00.A28 152852-00	£1.82	£2.19
79 - SPRING BDE-386196-00.A30 386196-00	£1.66	£1.99
81 - LOCKING PIN BDE-387130-00.A56 387130-00	£4.69	£5.63
82 - SEAL BDE-34158-00.A34 34158-00	£1.50	£1.80
88 - FENCE BDE-394562-00.A2 394562-00	-
91 - NO LONGER AVAILABLE BDE-000000-00.A23723 000000-00	-
92 - KNOB BDE-145439-10.A8 145439-10	£3.80	£4.56
93 - BUSHING BDE-398256-00.A0 398256-00	-
94 - CLAMP BDE-391357-00.A8 391357-00	-
95 - SPRING BDE-146745-00.A2 146745-00	-
96 - COVER BDE-148611-00.A11 148611-00	£1.50	£1.80
97 - POINTER BDE-391634-00.A1 391634-00	£2.78	£3.34
99 - PLATE BDE-146726-02.A21 146726-02	£7.85	£9.42
101 - SCREW BDE-98025-25.A1 98025-25	£1.50	£1.80
102 - WASHER BDE-153792-00.A12 153792-00	£1.50	£1.80
103 - WASHER BDE-153781-00.A53 153781-00	£1.50	£1.80
104 - NUT BDE-330021-02.A14 330021-02	£1.50	£1.80
105 - NO LONGER AVAILABLE BDE-000000-00.A89997 000000-00	-
106 - FOOT BDE-153612-00.A10 153612-00	£1.50	£1.80
107 - NO LONGER AVAILABLE BDE-000000-00.A90000 000000-00	-
108 - RING BDE-391635-00.A9 391635-00	-
109 - LABEL BDE-395021-00.A2 395021-00	£3.30	£3.96
110 - NO LONGER AVAILABLE BDE-000000-00.A89998 000000-00	-
113 - SCREW BDE-330019-03.A222 330019-03	£1.50	£1.80
118 - SCREW BDE-90611830.A185 90611830	£1.50	£1.80
119 - BUSH BDE-388414-01.A45 388414-01	£1.50	£1.80
121 - LEAD YELLOW BDE-398562-00.A1 398562-00	£1.42	£1.70
122 - LEAD BLACK BDE-398563-00.A2 398563-00	£1.42	£1.70
123 - LEAD WHITE BDE-398565-00.A1 398565-00	£1.42	£1.70
124 - NO LONGER AVAILABLE BDE-000000-00.A89999 000000-00	-
200 - PLUG BDE-145312-00.A1 145312-00	£1.50	£1.80
201 - SCREW BDE-330019-13.A432 330019-13	£1.50	£1.80
202 - SCREW BDE-330019-19.A142 330019-19	£1.50	£1.80
203 - BRUSH PLATE BDE-389512-01.A32 389512-01	£16.03	£19.24
204 - BRUSH & LEAD LX BDE-381028-08.A49 381028-08	£7.18	£8.62
204 - BRUSH & LEAD GB BDE-381028-08.A50 381028-08	£7.18	£8.62
205 - NO LONGER AVAILABLE LX BDE-000000-00.A90001 000000-00	-
205 - FIELD GB BDE-391318-01SV.A3 391318-01SV	-
206 - FIELD CASE BDE-391317-04.A3 391317-04	£16.03	£19.24
207 - BAFFLE FAN BDE-391375-00.A62 391375-00	-
208 - END CAP BDE-391933-00.A11 391933-00	£4.69	£5.63
209 - NO LONGER AVAILABLE LX BDE-000000-00.A90002 000000-00	-
209 - ARMATURE GB BDE-604290-00SV.A1 604290-00SV	-
210 - CIRCLIP BDE-144803-00.A44 144803-00	£1.50	£1.80
211 - BEARING BDE-868768-07.A147 868768-07	£7.85	£9.42
212 - BEARING BDE-330003-60.A97 330003-60	£2.78	£3.34
213 - GEARCASE COVER BDE-391573-00.A7 391573-00	£7.85	£9.42
214 - NO LONGER AVAILABLE BDE-000000-00.A90003 000000-00	-
215 - BEARING BALL BDE-330003-29.A3 330003-29	£16.03	£19.24
216 - SCREW BDE-330045-13.A9 330045-13	£1.50	£1.80
218 - LABEL BDE-394976-00.A37 394976-00	£1.82	£2.19
221 - CLAMP BDE-153650-00.A1 153650-00	-
800 - GREASE BDE-93488-00.A20 93488-00	£17.48	£20.97
836 - S.T.SQUARE BDE-559606-99.A11 559606-99	£74.15	£88.98
