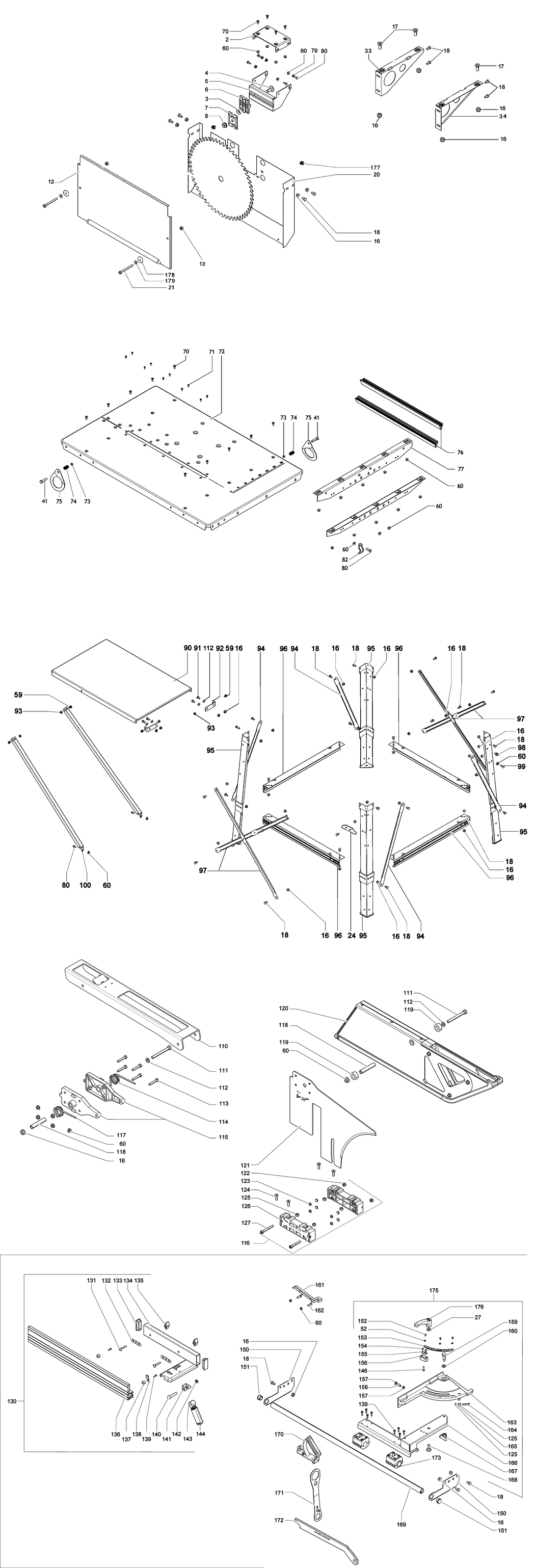

An exploded diagram and spare parts listing for the Metabo BKS 400 Plus / 0100400000 11 / -
Ex VAT Inc VAT
2 - BRACKET BL 2 5X195X100 MET-1382206289.A8 1382206289 -
2 - BRACKET BL 2 5X195X100 MET-1382206289.A9 1382206289 -
3 - CUP SPRING MET-7053063343.A2 7053063343 £1.50 £1.80
3 - CUP SPRING MET-7053063343.A3 7053063343 £1.50 £1.80
4 - CUP SQUARE NECK SCREW M 12X40 VERZ. MET-6110149253.A2 6110149253 -
4 - CUP SQUARE NECK SCREW M 12X40 VERZ. MET-6110149253.A3 6110149253 -
5 - TABLE PANEL BL 2 50X736X1071 MET-1382731987.A10 1382731987 -
5 - TABLE PANEL BL 2 50X736X1071 MET-1382731987.A11 1382731987 -
6 - RIVING KNIFE CARRIER MET-2380075353.A45 2380075353 £13.63 £16.36
6 - RIVING KNIFE CARRIER MET-2380075353.A46 2380075353 £13.63 £16.36
7 - PRESSURE PLATE BL 2 99X80X60 MET-1382213749.A55 1382213749 £3.20 £3.84
7 - PRESSURE PLATE BL 2 99X80X60 MET-1382213749.A56 1382213749 £3.20 £3.84
8 - FLANGE NUT MET-6209002432.A72 6209002432 £3.82 £4.59
8 - FLANGE NUT MET-6209002432.A73 6209002432 £3.82 £4.59
12 - CHIP CASE COVER BL 1 5X684X391 MET-1382206327.A48 1382206327 £42.65 £51.18
12 - CHIP CASE COVER BL 1 5X684X391 MET-1382206327.A49 1382206327 £42.65 £51.18
13 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A178 6202002305 £1.50 £1.80
13 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A179 6202002305 £1.50 £1.80
16 - FLANGE NUT MET-6209110995.A119 6209110995 £1.50 £1.80
16 - FLANGE NUT MET-6209110995.A120 6209110995 £1.50 £1.80
17 - CROSS RECESSED FLAT HEAD SCREW MET-6131009460.A51 6131009460 -
17 - CROSS RECESSED FLAT HEAD SCREW MET-6131009460.A52 6131009460 -
18 - HEX HEAD SCREW MET-6103001178.A102 6103001178 £1.50 £1.80
18 - HEX HEAD SCREW MET-6103001178.A103 6103001178 £1.50 £1.80
20 - CHIP CASE BL 1 5X812X410 MET-1382206319.A6 1382206319 -
20 - CHIP CASE BL 1 5X812X410 MET-1382206319.A7 1382206319 -
21 - HEXAGON HEAD SCREW M 8X90 VERZ. MET-6101022046.A52 6101022046 £3.20 £3.84
21 - HEXAGON HEAD SCREW M 8X90 VERZ. MET-6101022046.A53 6101022046 £3.20 £3.84
24 - SAFETY LEVER BL 2 50X30X100 MET-1392205418.A11 1392205418 -
24 - SAFETY LEVER BL 2 50X30X100 MET-1392205418.A12 1392205418 -
27 - WASHER MET-141150050.A109 141150050 £1.50 £1.80
27 - WASHER MET-141150050.A110 141150050 £1.50 £1.80
33 - SUPPORT PLATE BL 2X321X168 VORNE MET-1382206300.A28 1382206300 £15.41 £18.49
33 - SUPPORT PLATE BL 2X321X168 VORNE MET-1382206300.A29 1382206300 £15.41 £18.49
34 - SUPPORT PLATE BL 2X321X168 HINTEN MET-1382206335.A6 1382206335 £15.41 £18.49
34 - SUPPORT PLATE BL 2X321X168 HINTEN MET-1382206335.A7 1382206335 £15.41 £18.49
41 - HEXAGON HEAD SCREW MET-141113330.A68 141113330 £3.20 £3.84
41 - HEXAGON HEAD SCREW MET-141113330.A69 141113330 £3.20 £3.84
52 - WASHER MET-141150010.A87 141150010 £1.50 £1.80
52 - WASHER MET-141150010.A88 141150010 £1.50 £1.80
59 - HEXAGON HEAD SCREW M 10X20 VERZ. MET-6103005270.A72 6103005270 -
59 - HEXAGON HEAD SCREW M 10X20 VERZ. MET-6103005270.A73 6103005270 -
60 - FLANGE NUT MET-6209114230.A133 6209114230 £1.50 £1.80
60 - FLANGE NUT MET-6209114230.A134 6209114230 £1.50 £1.80
70 - CROSS RECESSED FLAT HEAD SCREW M 6X16 VE MET-6131047582.A6 6131047582 £1.50 £1.80
70 - CROSS RECESSED FLAT HEAD SCREW M 6X16 VE MET-6131047582.A7 6131047582 £1.50 £1.80
71 - SELF-TAPP. COUNTERS. SCREW MET-141123420.A2 141123420 £1.50 £1.80
71 - SELF-TAPP. COUNTERS. SCREW MET-141123420.A3 141123420 £1.50 £1.80
72 - TABLE PANEL BL 2 50X736X1071 MET-1382731405.A46 1382731405 -
72 - TABLE PANEL BL 2 50X736X1071 MET-1382731405.A47 1382731405 -
73 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A180 6202002305 £1.50 £1.80
73 - HEXAGON NUT PREV. TORQUE TYPE MET-6202002305.A181 6202002305 £1.50 £1.80
74 - PRESSURE SPRING MET-7051207240.A11 7051207240 £1.50 £1.80
74 - PRESSURE SPRING MET-7051207240.A12 7051207240 £1.50 £1.80
75 - LIFTING EYE 2 99X90X112 MET-1492103230.A13 1492103230 -
75 - LIFTING EYE 2 99X90X112 MET-1492103230.A14 1492103230 -
76 - TABLE INSERT EXTRUSION 549 MET-1393205551.A6 1393205551 £22.61 £27.13
76 - TABLE INSERT EXTRUSION 549 MET-1393205551.A7 1393205551 £22.61 £27.13
77 - CROSSHEAD BL 2 50X86X656 MET-1392205035.A2 1392205035 -
77 - CROSSHEAD BL 2 50X86X656 MET-1392205035.A3 1392205035 -
79 - WASHER MET-141150130.A76 141150130 £1.50 £1.80
79 - WASHER MET-141150130.A77 141150130 £1.50 £1.80
80 - HEXAGON HEAD SCREW MET-141113290.A35 141113290 £1.50 £1.80
80 - HEXAGON HEAD SCREW MET-141113290.A36 141113290 £1.50 £1.80
82 - CABLE CLIP MET-8242051328.A65 8242051328 £3.82 £4.59
82 - CABLE CLIP MET-8242051328.A66 8242051328 £3.82 £4.59
90 - EXTENSION PLATE BL 2 00X572X832 TKHS315M MET-1382693309.A67 1382693309 £60.03 £72.04
90 - EXTENSION PLATE BL 2 00X572X832 TKHS315M MET-1382693309.A68 1382693309 £60.03 £72.04
91 - HEXAGON HEAD SCREW MET-141114860.A24 141114860 £3.20 £3.84
91 - HEXAGON HEAD SCREW MET-141114860.A25 141114860 £3.20 £3.84
92 - ANGLE BRACKET BL 2 50X30X116 MET-1382693856.A19 1382693856 £17.55 £21.06
92 - ANGLE BRACKET BL 2 50X30X116 MET-1382693856.A20 1382693856 £17.55 £21.06
93 - HEX NUT MET-141132030.A165 141132030 £2.94 £3.53
93 - HEX NUT MET-141132030.A166 141132030 £2.94 £3.53
94 - DIAGONAL STRUT BL 2 5X30X591 MET-1382641074.A53 1382641074 -
94 - DIAGONAL STRUT BL 2 5X30X591 MET-1382641074.A54 1382641074 -
95 - BEIN BKH/BKS MET-1010730674.A45 1010730674 -
95 - BEIN BKH/BKS MET-1010730674.A46 1010730674 -
96 - STANCHION BL 1 5X118X703 MET-1382641031.A53 1382641031 £22.61 £27.13
96 - STANCHION BL 1 5X118X703 MET-1382641031.A54 1382641031 £22.61 £27.13
97 - DIAGONAL STRUT BL 2 5X30X830 MET-1382641058.A4 1382641058 £22.96 £27.55
97 - DIAGONAL STRUT BL 2 5X30X830 MET-1382641058.A5 1382641058 £22.96 £27.55
98 - SCREW 6KT 17X30 M 8 MET-1395205516.A45 1395205516 -
98 - SCREW 6KT 17X30 M 8 MET-1395205516.A46 1395205516 -
99 - CAP SCREW MET-6127059207.A70 6127059207 £1.50 £1.80
99 - CAP SCREW MET-6127059207.A71 6127059207 £1.50 £1.80
100 - SUPPORT BL 1 00X70X885 TVL-BKH/BKS MET-1382706559.A37 1382706559 -
100 - SUPPORT BL 1 00X70X885 TVL-BKH/BKS MET-1382706559.A38 1382706559 -
110 - TABLE PANEL CPL. MET-1382731340.A43 1382731340 £42.65 £51.18
110 - TABLE PANEL CPL. MET-1382731340.A44 1382731340 £42.65 £51.18
111 - HEXAGON HEAD SCREW M 8X80 VERZ. MET-6103030259.A37 6103030259 £1.50 £1.80
111 - HEXAGON HEAD SCREW M 8X80 VERZ. MET-6103030259.A38 6103030259 £1.50 £1.80
112 - WASHER MET-141151340.A155 141151340 £1.50 £1.80
112 - WASHER MET-141151340.A134 141151340 £1.50 £1.80
113 - HEXAGON HEAD SCREW M 6X35 VERZ. MET-6103004916.A4 6103004916 £1.50 £1.80
113 - HEXAGON HEAD SCREW M 6X35 VERZ. MET-6103004916.A5 6103004916 £1.50 £1.80
114 - LEG SPRING D=1 5 X 180 MET-7051731284.A18 7051731284 £11.78 £14.13
114 - LEG SPRING D=1 5 X 180 MET-7051731284.A19 7051731284 £11.78 £14.13
115 - BEARING BLOCK KPL. BKH/BKS-PLUS MET-1010731972.A16 1010731972 £22.61 £27.13
115 - BEARING BLOCK KPL. BKH/BKS-PLUS MET-1010731972.A17 1010731972 £22.61 £27.13
116 - RIP FENCE MET-1010731964.A41 1010731964 £73.52 £88.23
116 - RIP FENCE MET-1010731964.A42 1010731964 £73.52 £88.23
117 - LEG SPRING D=1 5 X 180 MET-7051731292.A39 7051731292 £11.78 £14.13
117 - LEG SPRING D=1 5 X 180 MET-7051731292.A40 7051731292 £11.78 £14.13
118 - BUSHING RD 18X5 MET-1485731306.A57 1485731306 £6.38 £7.65
118 - BUSHING RD 18X5 MET-1485731306.A58 1485731306 £6.38 £7.65
119 - BUSHING RD 18X5 MET-1381731312.A4 1381731312 £2.94 £3.53
119 - BUSHING RD 18X5 MET-1381731312.A5 1381731312 £2.94 £3.53
120 - WHEEL GUARD KPL BKH/BKS PLUS MET-1010731956.A20 1010731956 £86.42 £103.71
120 - WHEEL GUARD KPL BKH/BKS PLUS MET-1010731956.A21 1010731956 £86.42 £103.71
121 - SPLITTING BLADE BL 3 00X214X304 BKH/BKS4 MET-1482731367.A28 1482731367 -
121 - SPLITTING BLADE BL 3 00X214X304 BKH/BKS4 MET-1482731367.A29 1482731367 -
122 - HEXAGONAL LOCK NUT MET-141130650.A207 141130650 £3.20 £3.84
122 - HEXAGONAL LOCK NUT MET-141130650.A208 141130650 £3.20 £3.84
123 - GLIDE PIECE MET-2391202772.A53 2391202772 £1.50 £1.80
123 - GLIDE PIECE MET-2391202772.A54 2391202772 £1.50 £1.80
124 - SLOTTED FLAT HEAD SCREW M 6X20 VERZ. MET-6130019585.A72 6130019585 £1.50 £1.80
124 - SLOTTED FLAT HEAD SCREW M 6X20 VERZ. MET-6130019585.A73 6130019585 £1.50 £1.80
125 - HEXAGONAL NUT MET-141130100.A152 141130100 £1.50 £1.80
125 - HEXAGONAL NUT MET-141130100.A153 141130100 £1.50 £1.80
126 - SUPPORTBLOCK 140X30X53 MET-1381730669.A4 1381730669 -
126 - SUPPORTBLOCK 140X30X53 MET-1381730669.A5 1381730669 -
127 - CAP SCREW MET-141113940.A2 141113940 £1.50 £1.80
127 - CAP SCREW MET-141113940.A3 141113940 £1.50 £1.80
130 - RIP FENCE MET-1010731743.A37 1010731743 £100.42 £120.50
130 - RIP FENCE MET-1010731743.A38 1010731743 £100.42 £120.50
131 - CUP SQUARE NECK SCREW M 6X40 VERZ. MET-6110000616.A4 6110000616 £1.50 £1.80
131 - CUP SQUARE NECK SCREW M 6X40 VERZ. MET-6110000616.A5 6110000616 £1.50 £1.80
132 - GUIDE PLATE FLIPSTOP MET-1392201587.A38 1392201587 £1.50 £1.80
132 - GUIDE PLATE FLIPSTOP MET-1392201587.A39 1392201587 £1.50 £1.80
133 - LAMELLAR PLUG 60X25 VL SCHWARZ MET-1391019971.A22 1391019971 £3.20 £3.84
133 - LAMELLAR PLUG 60X25 VL SCHWARZ MET-1391019971.A23 1391019971 £3.20 £3.84
134 - RIP FENCE MET-1010731450.A20 1010731450 -
134 - RIP FENCE MET-1010731450.A21 1010731450 -
135 - WING NUT MET-7005658068.A22 7005658068 £3.20 £3.84
135 - WING NUT MET-7005658068.A23 7005658068 £3.20 £3.84
136 - AUXILIARY FENCE EXTRUSION MET-1383730720.A2 1383730720 -
136 - AUXILIARY FENCE EXTRUSION MET-1383730720.A3 1383730720 -
137 - SPACER SLEEVE RD 15/6X12 MET-6442100576.A2 6442100576 -
137 - SPACER SLEEVE RD 15/6X12 MET-6442100576.A3 6442100576 -
138 - CABLE CLIP MET-7052078118.A2 7052078118 £1.50 £1.80
138 - CABLE CLIP MET-7052078118.A3 7052078118 £1.50 £1.80
139 - SELF-TAP. FILL. H. SCREW MET-141122870.A5 141122870 -
139 - SELF-TAP. FILL. H. SCREW MET-141122870.A6 141122870 -
140 - BOLT WITH HEAD MET-6632111175.A101 6632111175 £3.82 £4.59
140 - BOLT WITH HEAD MET-6632111175.A102 6632111175 £3.82 £4.59
141 - CLAMPING PLATE BL 1X26X91 MET-1392205620.A96 1392205620 £3.20 £3.84
141 - CLAMPING PLATE BL 1X26X91 MET-1392205620.A97 1392205620 £3.20 £3.84
142 - STARLOCK MET-7016050711.A7 7016050711 £1.50 £1.80
142 - STARLOCK MET-7016050711.A8 7016050711 £1.50 £1.80
143 - CAM-LOCK LEVER MET-1380731386.A16 1380731386 -
143 - CAM-LOCK LEVER MET-1380731386.A17 1380731386 -
144 - HANDLE WITH RED INSERT MET-1381731843.A55 1381731843 -
144 - HANDLE WITH RED INSERT MET-1381731843.A56 1381731843 -
145 - CUP SQUARE NECK SCREW M 8X25 VERZ. MET-6110000640.A59 6110000640 £1.50 £1.80
145 - CUP SQUARE NECK SCREW M 8X25 VERZ. MET-6110000640.A60 6110000640 £1.50 £1.80
146 - CROSS RECD PAN HEAD TAP.SCREW MET-6172015687.A19 6172015687 £1.50 £1.80
146 - CROSS RECD PAN HEAD TAP.SCREW MET-6172015687.A20 6172015687 £1.50 £1.80
147 - END PIECE BL 2X26X35 MET-1492091649.A51 1492091649 £1.50 £1.80
147 - END PIECE BL 2X26X35 MET-1492091649.A52 1492091649 £1.50 £1.80
148 - FENCE GUIDE EXTRUSION 543 5 MM MET-1383731590.A53 1383731590 £42.65 £51.18
148 - FENCE GUIDE EXTRUSION 543 5 MM MET-1383731590.A54 1383731590 £42.65 £51.18
150 - HALTER BL 2 99X79X207 MET-1482730767.A14 1482730767 -
150 - HALTER BL 2 99X79X207 MET-1482730767.A15 1482730767 -
151 - LAMELLENSTOPFEN RD 25 1-3 MET-1381730715.A53 1381730715 -
151 - LAMELLENSTOPFEN RD 25 1-3 MET-1381730715.A54 1381730715 -
152 - FILLISTER HEAD SCREW MET-6172028215.A34 6172028215 £1.50 £1.80
152 - FILLISTER HEAD SCREW MET-6172028215.A35 6172028215 £1.50 £1.80
153 - ANGLE SCALE MET-1110205593.A51 1110205593 -
153 - ANGLE SCALE MET-1110205593.A52 1110205593 -
154 - FILLISTER HEAD SCREW MET-6172091014.A73 6172091014 £1.50 £1.80
154 - FILLISTER HEAD SCREW MET-6172091014.A74 6172091014 £1.50 £1.80
155 - VERNIER SCALE 1 MET-1110205607.A6 1110205607 -
155 - VERNIER SCALE 1 MET-1110205607.A7 1110205607 -
156 - CARRIER VERNIER SCALE MET-2391205615.A16 2391205615 -
156 - CARRIER VERNIER SCALE MET-2391205615.A17 2391205615 -
157 - HEXAGON THIN NUT MET-6205029131.A60 6205029131 £1.50 £1.80
157 - HEXAGON THIN NUT MET-6205029131.A61 6205029131 £1.50 £1.80
158 - GRUB SCREW MET-6161029309.A6 6161029309 £1.50 £1.80
158 - GRUB SCREW MET-6161029309.A7 6161029309 £1.50 £1.80
159 - HEXAGON FIT BOLT SW 19X42 MET-1395205400.A0 1395205400 £7.36 £8.83
159 - HEXAGON FIT BOLT SW 19X42 MET-1395205400.A1 1395205400 £7.36 £8.83
160 - WAVE SPRING WASHER B 12 VERZ. MET-6302085941.A37 6302085941 £1.50 £1.80
160 - WAVE SPRING WASHER B 12 VERZ. MET-6302085941.A38 6302085941 £1.50 £1.80
161 - EXTENTION MITRE FENCE MET-2380730793.A4 2380730793 -
161 - EXTENTION MITRE FENCE MET-2380730793.A5 2380730793 -
162 - HEXAGON HEAD SCREW MET-6103121416.A12 6103121416 £1.54 £1.85
162 - HEXAGON HEAD SCREW MET-6103121416.A13 6103121416 £1.54 £1.85
163 - MITRE FENCE MET-1390205739.A41 1390205739 -
163 - MITRE FENCE MET-1390205739.A42 1390205739 -
164 - HEXAGON HEAD SCREW MET-141110290.A56 141110290 £3.20 £3.84
164 - HEXAGON HEAD SCREW MET-141110290.A57 141110290 £3.20 £3.84
165 - WASHER MET-141151940.A185 141151940 £1.50 £1.80
165 - WASHER MET-141151940.A186 141151940 £1.50 £1.80
166 - MITRE FENCE MET-2010200922.A41 2010200922 -
166 - MITRE FENCE MET-2010200922.A42 2010200922 -
167 - GLIDE PIEC MET-2391205470.A41 2391205470 -
167 - GLIDE PIEC MET-2391205470.A42 2391205470 -
168 - CUP SQUARE NECK SCREW M 10X30 VERZ. MET-6110091603.A41 6110091603 £1.50 £1.80
168 - CUP SQUARE NECK SCREW M 10X30 VERZ. MET-6110091603.A42 6110091603 £1.50 £1.80
169 - FUEHRUNG QUERANSCHLAG RD 25X2 0X1040 MET-1485730741.A0 1485730741 -
169 - FUEHRUNG QUERANSCHLAG RD 25X2 0X1040 MET-1485730741.A1 1485730741 -
170 - SLIDING HANDLE RED MET-1388680470.A64 1388680470 £42.65 £51.18
170 - SLIDING HANDLE RED MET-1388680470.A65 1388680470 £42.65 £51.18
171 - KEY MET-1492102829.A61 1492102829 £11.78 £14.13
171 - KEY MET-1492102829.A62 1492102829 £11.78 £14.13
172 - PUSH STICK MET-1394201630.A24 1394201630 £9.62 £11.54
172 - PUSH STICK MET-1394201630.A25 1394201630 £9.62 £11.54
173 - GUIDE PIECE MET-2391205283.A37 2391205283 £9.62 £11.54
173 - GUIDE PIECE MET-2391205283.A38 2391205283 £9.62 £11.54
175 - MITRE FENC MET-1010014146.A14 1010014146 £79.10 £94.92
175 - MITRE FENC MET-1010014146.A15 1010014146 £79.10 £94.92
176 - RATCHET LOCK LEVER FEMALE M 10 IG 18 MM MET-7006073730.A4 7006073730 £13.63 £16.36
176 - RATCHET LOCK LEVER FEMALE M 10 IG 18 MM MET-7006073730.A5 7006073730 £13.63 £16.36
177 - CAGE NUT M 8 BLECHSTÄRKE 1 MET-6264139374.A20 6264139374 £3.20 £3.84
177 - CAGE NUT M 8 BLECHSTÄRKE 1 MET-6264139374.A21 6264139374 £3.20 £3.84
178 - CUP SPRING MET-7053075104.A30 7053075104 £1.50 £1.80
178 - CUP SPRING MET-7053075104.A31 7053075104 £1.50 £1.80
179 - WASHER MET-6305002486.A12 6305002486 -
179 - WASHER MET-6305002486.A13 6305002486 -

Recently Viewed


x
Powered by kartris
