Stanley STHM10K Type 1 Demolition Hammer Spare Parts

Home Details Reviews Delivery

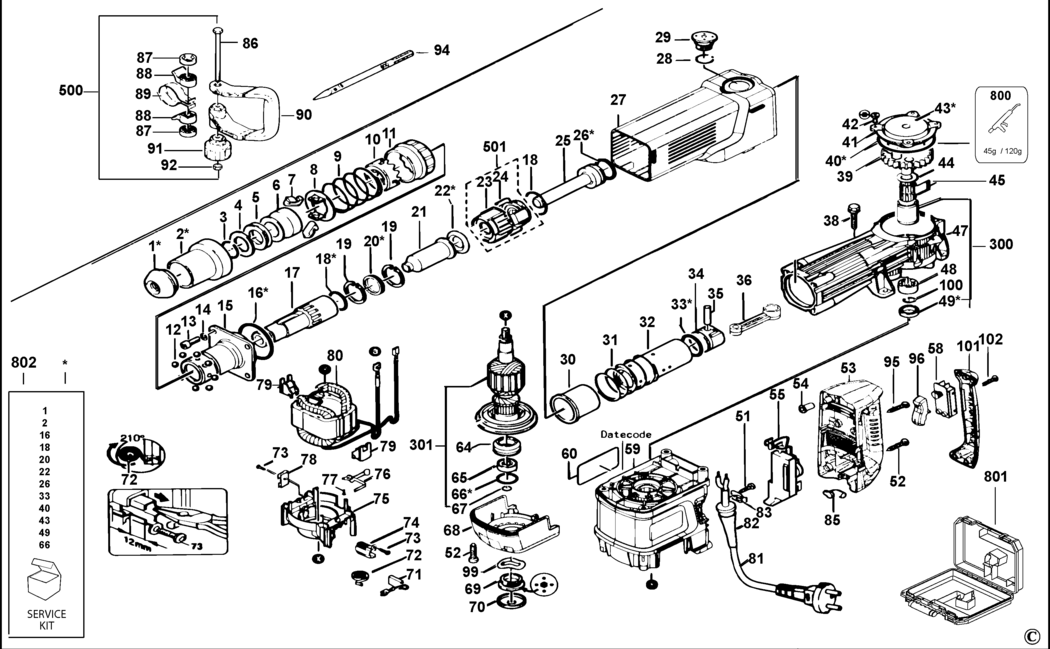

An exploded drawing and spare parts listing for the Stanley STHM10K Type 1 Demolition Hammer

	Ex VAT	Inc VAT
1 - DUST GUARD BDE-4050103011 4050103011	£3.30	£3.96
2 - SLEEVE BDE-4050101020 4050101020	£1.82	£2.19
3 - RING BDE-4050104008 4050104008	£1.50	£1.80
4 - WASHER BDE-4050104006 4050104006	£1.50	£1.80
5 - BUFFER BDE-4050103010 4050103010	£1.50	£1.80
6 - SLEEVE BDE-4050104028 4050104028	£12.17	£14.60
7 - VICE JAW BDE-4050104018 4050104018	£5.88	£7.06
8 - COLLAR BDE-4050104017 4050104017	£1.50	£1.80
9 - SPRING BDE-4050108001 4050108001	£1.50	£1.80
10 - LOCKING RING BDE-4050104027 4050104027	£2.78	£3.34
11 - SLEEVE BDE-4050101028 4050101028	£1.50	£1.80
12 - BALL STEEL BDE-4050104010 4050104010	£1.50	£1.80
13 - SCREW BDE-49201049 49201049	£1.50	£1.80
14 - WASHER SPRING BDE-49209005 49209005	£1.50	£1.80
15 - FLANGE BDE-4050104013 4050104013	£37.35	£44.82
16 - O RING BDE-4050103006 4050103006	£1.50	£1.80
17 - SPINDLE BDE-4050104020 4050104020	£37.35	£44.82
18 - O RING BDE-4050103004 4050103004	£1.50	£1.80
19 - CIRCLIP BDE-49207010 49207010	£1.50	£1.80
20 - SEAL BDE-4050103009 4050103009	£3.30	£3.96
21 - RAM BDE-4050104004 4050104004	£16.03	£19.24
22 - O RING BDE-4050103005 4050103005	£2.26	£2.71
23 - CONTROL PANEL BDE-4050101037 4050101037	£1.50	£1.80
24 - TUBE SA BDE-4050104033 4050104033	£3.80	£4.56
25 - IMPACTOR BDE-4050104005 4050104005	£24.39	£29.27
26 - O RING BDE-4050103001 4050103001	£1.82	£2.19
27 - GEARCASE COVER BDE-4050801601 4050801601	£12.17	£14.60
28 - O RING BDE-4240203001.A8 4240203001	£1.50	£1.80
29 - CAP BDE-4050801607 4050801607	£1.50	£1.80
30 - BUSHING BDE-4050104019 4050104019	£7.85	£9.42
31 - SPRING BDE-4050108002 4050108002	£1.50	£1.80
32 - SLEEVE BDE-4050104009 4050104009	£24.39	£29.27
33 - O RING BDE-4050103003 4050103003	£2.26	£2.71
34 - PISTON BDE-4050801002 4050801002	£5.88	£7.06
35 - PIN BDE-4050104012 4050104012	£1.50	£1.80
36 - CON ROD BDE-4050801003 4050801003	£10.85	£13.02
38 - SCREW BDE-49202005 49202005	£1.50	£1.80
39 - GEAR BDE-4050110003 4050110003	£25.70	£30.84
40 - O RING BDE-4050103007 4050103007	£1.50	£1.80
40 - O RING BDE-N549505 N549505	£1.50	£1.80
41 - COVER HOUSING BDE-4050104030 4050104030	£5.88	£7.06
42 - SCREW BDE-49201032 49201032	£1.50	£1.80
43 - FELT SEAL BDE-4050101036 4050101036	£1.50	£1.80
44 - WASHER THRUST BDE-4050104025 4050104025	£1.50	£1.80
45 - BEARING NEEDLE BDE-49101028 49101028	£2.78	£3.34
47 - GEARCASE BDE-4050802601 4050802601	£38.80	£46.56
48 - BEARING NEEDLE BDE-49101048 49101048	£9.41	£11.29
49 - SEAL BDE-4050103013 4050103013	£3.30	£3.96
51 - SCREW BDE-49206020.A1 49206020	£1.50	£1.80
51 - SCREW BDE-49206020.A2 49206020	£1.50	£1.80
52 - SCREW BDE-49206608 49206608	£1.50	£1.80
53 - SWITCH HANDLE BDE-4050801602 4050801602	£14.57	£17.48
54 - LOCK PIN BDE-4050104002 4050104002	£1.50	£1.80
55 - SPEED REGULATOR BDE-4050805001 4050805001	£24.39	£29.27
58 - SWITCH BDE-4050305601.A2 4050305601	£12.17	£14.60
59 - HOUSING BDE-4050801603 4050801603	£17.48	£20.97
64 - BUSHING BDE-4050104003 4050104003	£4.69	£5.63
65 - BEARING BDE-49106025 49106025	£2.78	£3.34
66 - O RING BDE-4050103002 4050103002	£1.50	£1.80
67 - CIRCLIP BDE-49207026.A4 49207026	£1.50	£1.80
68 - COVER REAR BDE-4050801604 4050801604	£7.18	£8.62
69 - PIVOT BLOCK BDE-4050104022 4050104022	£3.80	£4.56
70 - END CAP BDE-4050101001 4050101001	£1.50	£1.80
71 - BRUSH PAIR BDE-4050106005 4050106005	£7.18	£8.62
72 - BRUSH SPRING PAIR BDE-4050108003 4050108003	£1.50	£1.80
73 - SCREW BDE-49206016.A7 49206016	£1.50	£1.80
74 - BRUSH HOLDER BDE-4050807601 4050807601	£1.50	£1.80
75 - BRUSH HOLDER SA BDE-4050804001 4050804001	£2.26	£2.71
76 - CONTACT PLATE BDE-4050104016 4050104016	£1.50	£1.80
77 - SCREW BDE-49206047 49206047	£1.50	£1.80
78 - CONTACT PLATE BDE-4050804603 4050804603	£1.50	£1.80
79 - BLOCK BDE-4050101008.A0 4050101008	£1.50	£1.80
79 - BLOCK BDE-4050101008.A1 4050101008	£1.50	£1.80
80 - STATOR BDE-60305019 60305019	£38.80	£46.56
82 - CORD PROTECTOR BDE-49303013 49303013	£1.50	£1.80
83 - CORD CLAMP BDE-4050101033 4050101033	£1.50	£1.80
85 - LED LIGHT BDE-4050101034 4050101034	£1.50	£1.80
86 - BOLT BDE-49202019 49202019	£1.50	£1.80
87 - RATCHET BDE-4050101071 4050101071	£1.50	£1.80
88 - CLAMPING INSERT BDE-4050101072.A0 4050101072	£1.50	£1.80
88 - CLAMPING INSERT BDE-4050101072.A1 4050101072	£1.50	£1.80
89 - CLAMPS BDE-4050104007 4050104007	£1.50	£1.80
90 - SIDE HANDLE BDE-4050101002 4050101002	£7.85	£9.42
91 - LOWER HANDLE BDE-4050101073 4050101073	£1.50	£1.80
92 - NUT BDE-49205014.A2 49205014	£1.50	£1.80
94 - BIT BDE-4050304032.A2 4050304032	£12.17	£14.60
95 - SCREW BDE-49201605 49201605	£1.50	£1.80
96 - SWITCH COVER BDE-4050301602.A1 4050301602	£1.50	£1.80
99 - WASHER BOW BDE-4050104031 4050104031	£1.50	£1.80
100 - CIRCLIP BDE-49207055 49207055	£1.50	£1.80
101 - HANDLE COVER BDE-4050801605 4050801605	£4.69	£5.63
102 - SCREW BDE-49206605.A2 49206605	£1.50	£1.80
300 - GEARCASE SA BDE-4050831001 4050831001	£51.90	£62.28
301 - ARMATURE SA BDE-4050831002 4050831002	£74.15	£88.98
500 - HANDLE SIDE SA BDE-4050131004 4050131004	£14.57	£17.48
501 - SUPPORT SA BDE-4050131002 4050131002	£3.80	£4.56
800 - GREASE BDE-N488820 N488820	-
800 - GREASE 12.5G BDE-901187 901187	£78.12	£93.74
802 - SERVICE KIT BDE-4050831003 4050831003	£25.70	£30.84
861 - KITBOX BDE-4050812601 4050812601	£41.24	£49.49

Attribute Name	Value
Brand	Stanley
