Stanley SXPW16PE Type 1 Pressure Washer Spare Parts

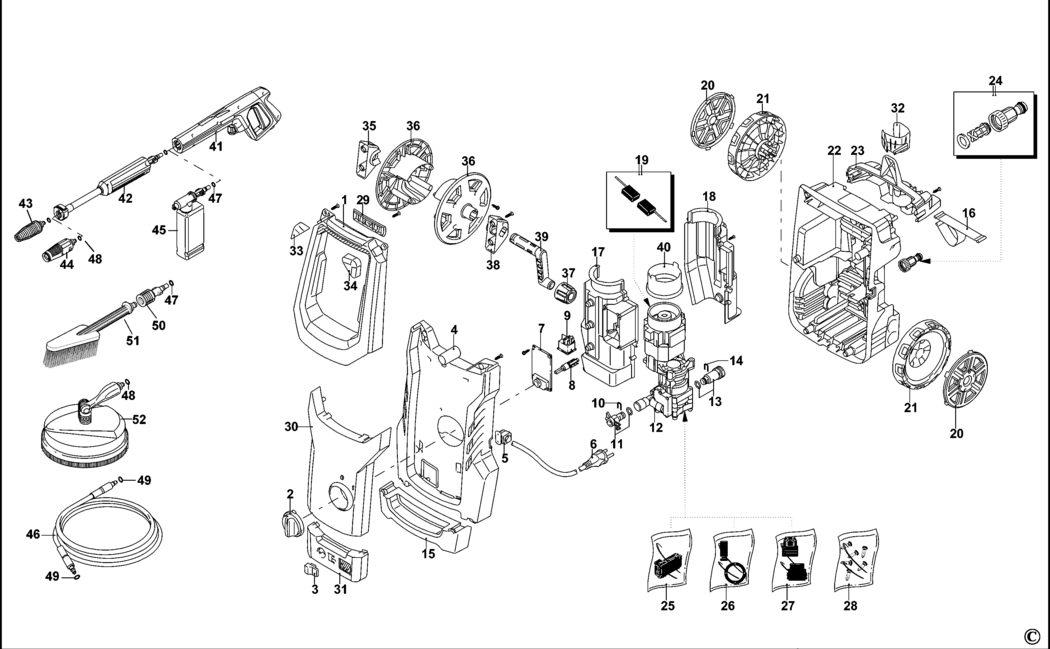

An exploded drawing and spare parts listing for the Stanley SXPW16PE Type 1 Pressure Washer

	Ex VAT	Inc VAT
1 - HANDLE SA BDE-4380930.A0 4380930	£18.91	£22.69
2 - KNOB BDE-4380251.A5 4380251	£2.26	£2.71
3 - LEVER BDE-4380391.A9 4380391	£1.82	£2.19
4 - CASING BDE-4380900.A0 4380900	£24.39	£29.27
5 - GLAND BDE-3080580.A10 3080580	£1.50	£1.80
7 - COVER BDE-1004700-65.A28 1004700-65	£2.78	£3.34
8 - PIN BDE-1004700-66.A4 1004700-66	£1.50	£1.80
10 - FORK BDE-1004512-08.A42 1004512-08	£5.95	£7.14
11 - CONNECTOR BDE-4383200.A5 4383200	£10.82	£12.99
13 - SUCTION GROUP BDE-1004512-17.A15 1004512-17	£12.17	£14.60
14 - FORK BDE-1004512-19.A16 1004512-19	£1.50	£1.80
15 - FOOT SA BDE-4380870.A0 4380870	£10.85	£13.02
16 - HOOK SA BDE-4380810.A5 4380810	£3.30	£3.96
17 - CONVEYOR BDE-4380160.A20 4380160	£14.57	£17.48
18 - CONVEYOR BDE-4380170.A7 4380170	£14.57	£17.48
20 - GUARD BDE-4380860.A3 4380860	£7.18	£8.62
21 - WHEEL BDE-4380340.A6 4380340	£14.57	£17.48
22 - BASE SA BDE-4380960.A18 4380960	£47.08	£56.49
23 - CARRIER BDE-4380230.A22 4380230	£12.17	£14.60
24 - COUPLING SA BDE-1004712-93.A49 1004712-93	£7.88	£9.45
25 - KIT BDE-3480130.A3 3480130	£14.57	£17.48
26 - PISTONS & SEALS KIT BDE-3480150.A3 3480150	£25.70	£30.84
27 - VALVES & SEALS KIT BDE-3480140.A8 3480140	£5.88	£7.06
28 - SCREW KIT BDE-4381470.A4 4381470	£7.18	£8.62
29 - KNOB BDE-4381300.A1 4381300	£10.85	£13.02
30 - GUARD FRONT BDE-4380910.A3 4380910	£17.48	£20.97
31 - GUARD LOWER BDE-4380880.A3 4380880	£4.69	£5.63
32 - CLIP SA BDE-4381280.A32 4381280	£3.80	£4.56
33 - COVER BDE-4380940.A3 4380940	£5.88	£7.06
34 - COVER BDE-4380950.A0 4380950	£5.88	£7.06
35 - BRACKET BDE-4380470.A21 4380470	£5.88	£7.06
36 - PLATE BDE-3080200.A17 3080200	£14.57	£17.48
37 - KNOB BDE-4380451.A11 4380451	£2.26	£2.71
38 - BRACKET BDE-4380460.A1 4380460	£5.88	£7.06
39 - LEVER BDE-4380560.A5 4380560	£7.18	£8.62
40 - GUARD BDE-4380180.A9 4380180	£4.69	£5.63
41 - HANDLE SA BDE-4381480.A11 4381480	£34.00	£40.80
42 - EXTENSION BDE-4381490.A17 4381490	£25.70	£30.84
43 - HEAD SA BDE-4100800.A10 4100800	£24.39	£29.27
44 - HEAD SA BDE-4381810.A9 4381810	£17.48	£20.97
45 - TANK BDE-4381500.A29 4381500	£7.85	£9.42
46 - HOSE SA BDE-4381540.A4 4381540	£58.69	£70.43
47 - O RING BDE-5140193-41.A19 5140193-41	£1.50	£1.80
48 - O RING BDE-3083370.A39 3083370	£1.50	£1.80
49 - O RING BDE-3083400.A7 3083400	£1.50	£1.80
50 - ADAPTOR BDE-40788.A10 40788	-
51 - BRUSH SA BDE-40787.A5 40787	£14.57	£17.48
52 - BRUSH SA BDE-3084355.A0 3084355	£37.35	£44.82
