Stanley SBI201 Type 1 Cordless Drill 18v Li-ion Spare Parts

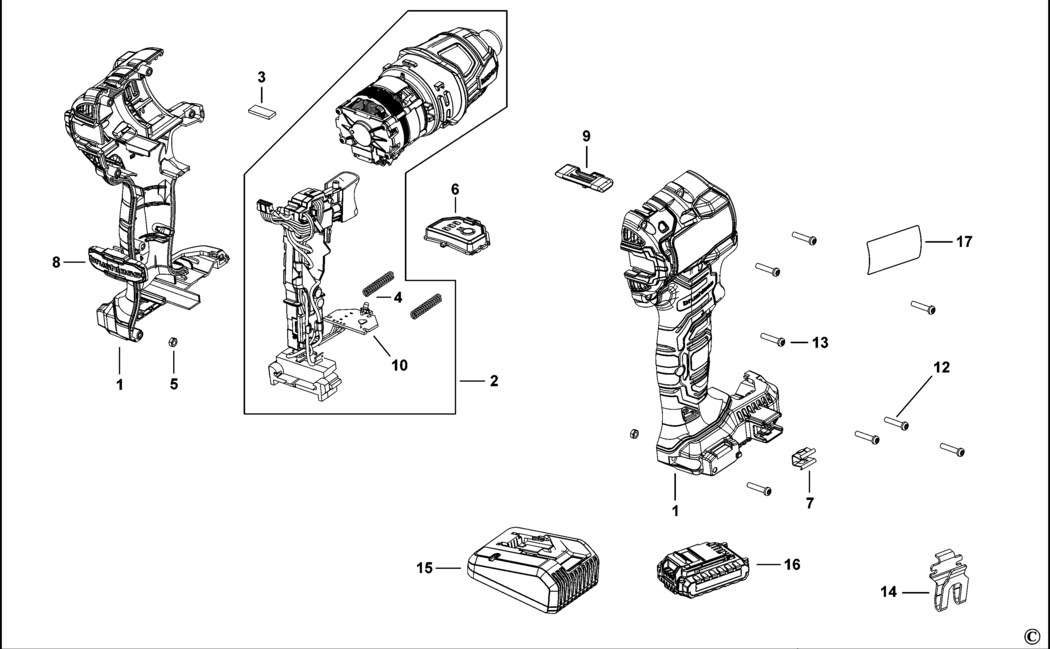

An exploded drawing and spare parts listing for the Stanley SBI201 Type 1 Cordless Drill 18v Li-ion

	Ex VAT	Inc VAT
1 - HOUSING SA BDE-N500120 N500120	£12.17	£14.60
2 - MODULE BDE-90632838-01 90632838-01	-
2 - TRANSMISSION SA BDE-N595614 N595614	£245.11	£294.13
3 - MAGNET BDE-90556563-01.A20 90556563-01	£2.26	£2.71
4 - SPRING BDE-5100035-03.A73 5100035-03	£1.50	£1.80
4 - SPRING BDE-5100035-03.A74 5100035-03	£1.50	£1.80
5 - NUT BDE-90556571.A26 90556571	£1.50	£1.80
5 - NUT BDE-90556571.A27 90556571	£1.50	£1.80
6 - BEZEL BDE-90627916 90627916	£1.50	£1.80
7 - HOLDER BDE-148354-03.A474 148354-03	£1.50	£1.80
7 - BACKPLATE BDE-90628279.A1 90628279	£1.50	£1.80
8 - ACTUATOR FWD/REV BDE-90629054-01.A6 90629054-01	£1.50	£1.80
8 - BACKPLATE BDE-90628279.A0 90628279	£1.50	£1.80
9 - PCB SA BDE-90627915.A2 90627915	£10.85	£13.02
9 - ACTUATOR FWD/REV BDE-90629054-01.A7 90629054-01	£1.50	£1.80
10 - HOLDER BDE-148354-03.A475 148354-03	£1.50	£1.80
10 - PCB SA BDE-90627915.A3 90627915	£10.85	£13.02
11 - SCREW BDE-90637196.A7 90637196	£1.50	£1.80
12 - SCREW BDE-90637197.A4 90637197	£1.50	£1.80
12 - SCREW BDE-90637197.A5 90637197	£1.50	£1.80
13 - GEARCASE BDE-90622491 90622491	-
13 - SCREW BDE-90637196.A8 90637196	£1.50	£1.80
14 - BEARING NEEDLE BDE-90616242 90616242	-
14 - HOOK BDE-N493090.A0 N493090	£1.50	£1.80
15 - SEAL BDE-90616243 90616243	-
17 - WASHER BDE-90616245 90616245	-
18 - SPRING BDE-90616246 90616246	-
19 - BALL STEEL BDE-90616247 90616247	-
20 - SLEEVE BDE-90616252 90616252	-
21 - SPRING BDE-90616253 90616253	-
22 - WASHER BDE-90616254 90616254	-
23 - RING BDE-90616255 90616255	-
24 - BEARING BALL BDE-90616257-01 90616257-01	-
25 - RING BDE-90616260 90616260	-
26 - GEAR BDE-90626770 90626770	-
27 - SHAFT SA BDE-N521925 N521925	-
28 - SLEEVE BDE-90627919 90627919	-
29 - MOTOR SA BDE-90632599 90632599	-
