Bostitch 416SIC-MG/30 Type REV 0 Stapler Spare Parts

Home Details Reviews Delivery

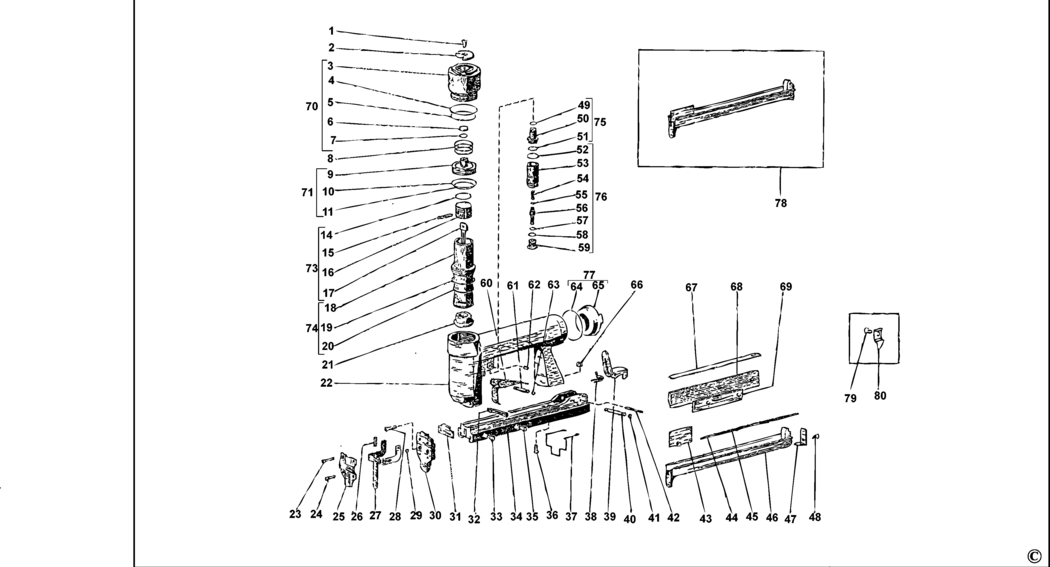

An exploded drawing and spare parts listing for the Bostitch 416SIC-MG/30 Type REV 0 Stapler

	Ex VAT	Inc VAT
1 - SCREW BDE-B000028A04.A7 B000028A04	-
2 - DEFLECTOR BDE-C416100A01.A6 C416100A01	-
3 - NO LONGER AVAILABLE BDE-000000-00.A129859 000000-00	-
4 - O RING BDE-B000020A36.A7 B000020A36	-
6 - INSERT BDE-C216160A01.A0 C216160A01	-
7 - O RING BDE-B000020A19.A14 B000020A19	£3.30	£3.96
8 - SPRING BDE-C016200A01.A4 C016200A01	-
11 - O RING BDE-B000020A31.A3 B000020A31	£2.71	£3.25
14 - O RING BDE-B000020A29.A4 B000020A29	-
15 - PIN BDE-B000025A06.A3 B000025A06	-
17 - NO LONGER AVAILABLE BDE-000000-00.A129860 000000-00	-
18 - NO LONGER AVAILABLE BDE-000000-00.A129861 000000-00	-
19 - O RING BDE-B000020A35.A4 B000020A35	£2.21	£2.65
20 - O RING BDE-B000020A22.A5 B000020A22	£2.71	£3.25
21 - BUMPER BDE-C016244A01.A2 C016244A01	-
22 - NO LONGER AVAILABLE BDE-000000-00.A129862 000000-00	-
23 - SCREW BDE-B000028B06.A2 B000028B06	-
24 - SCREW BDE-B000028B01.A4 B000028B01	£10.85	£13.02
25 - NO LONGER AVAILABLE BDE-000000-00.A129863 000000-00	-
26 - SPRING BDE-C216661B01.A4 C216661B01	-
27 - NO LONGER AVAILABLE BDE-000000-00.A129864 000000-00	-
28 - SCREW BDE-B000028B04.A0 B000028B04	£12.17	£14.60
29 - RING BDE-B000021C01.A13 B000021C01	£1.50	£1.80
30 - NO LONGER AVAILABLE BDE-000000-00.A129869 000000-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A129870 000000-00	-
32 - PLATE BDE-C016483B01.A2 C016483B01	-
33 - NO LONGER AVAILABLE BDE-000000-00.A129865 000000-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A129866 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A129867 000000-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A129868 000000-00	-
38 - SPRING BDE-C016761A01.A0 C016761A01	£10.57	£12.68
39 - NO LONGER AVAILABLE BDE-000000-00.A129871 000000-00	-
40 - PIN BDE-C416763A01.A1 C416763A01	£3.70	£4.44
41 - RING BDE-B000021C01.A14 B000021C01	£1.50	£1.80
42 - SPIROL PIN BDE-B000026A05.A6 B000026A05	£3.30	£3.96
43 - NO LONGER AVAILABLE BDE-000000-00.A129872 000000-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A129873 000000-00	-
45 - NO LONGER AVAILABLE BDE-000000-00.A129874 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A129875 000000-00	-
47 - NO LONGER AVAILABLE BDE-000000-00.A129876 000000-00	-
48 - SCREW BDE-B000028A03.A1 B000028A03	£3.80	£4.56
49 - O RING BDE-B000020A17.A9 B000020A17	£3.30	£3.96
50 - TUBE SA BDE-D416302A01.A3 D416302A01	-
51 - O RING BDE-B000020A01.A2 B000020A01	-
52 - O RING BDE-B000020A03.A5 B000020A03	£3.22	£3.86
53 - NO LONGER AVAILABLE BDE-000000-00.A129877 000000-00	-
54 - SPRING BDE-C216340A01.A9 C216340A01	£7.85	£9.42
55 - O RING BDE-B000020A14.A13 B000020A14	-
56 - NO LONGER AVAILABLE BDE-000000-00.A129878 000000-00	-
58 - O RING BDE-B000020A18.A0 B000020A18	£3.22	£3.86
59 - NO LONGER AVAILABLE BDE-000000-00.A129879 000000-00	-
60 - NO LONGER AVAILABLE BDE-000000-00.A129880 000000-00	-
61 - PIN BDE-C216424A01.A0 C216424A01	-
62 - NO LONGER AVAILABLE BDE-000000-00.A129881 000000-00	-
63 - RING BDE-B000021C01.A12 B000021C01	£1.50	£1.80
64 - O RING BDE-B000020A36.A6 B000020A36	-
65 - BUSHING BDE-D216283A01.A6 D216283A01	-
66 - LOCK NUT BDE-B000023B02.A0 B000023B02	£3.30	£3.96
67 - NO LONGER AVAILABLE BDE-000000-00.A129882 000000-00	-
68 - NO LONGER AVAILABLE BDE-000000-00.A129883 000000-00	-
69 - NO LONGER AVAILABLE BDE-000000-00.A129884 000000-00	-
73 - NO LONGER AVAILABLE BDE-000000-00.A129885 000000-00	-
75 - TUBE SA BDE-D416302A01.A2 D416302A01	-
76 - NO LONGER AVAILABLE BDE-000000-00.A129886 000000-00	-
77 - BUSHING BDE-D216283A01.A7 D216283A01	-
79 - SCREW BDE-B000028A03.A2 B000028A03	£3.80	£4.56
80 - CLIP BDE-C416990A02.A0 C416990A02	-

Attribute Name	Value
Brand	Bostitch
