Bostitch 438S5-1 Type REV A Stapler Spare Parts

Home Details Reviews Delivery

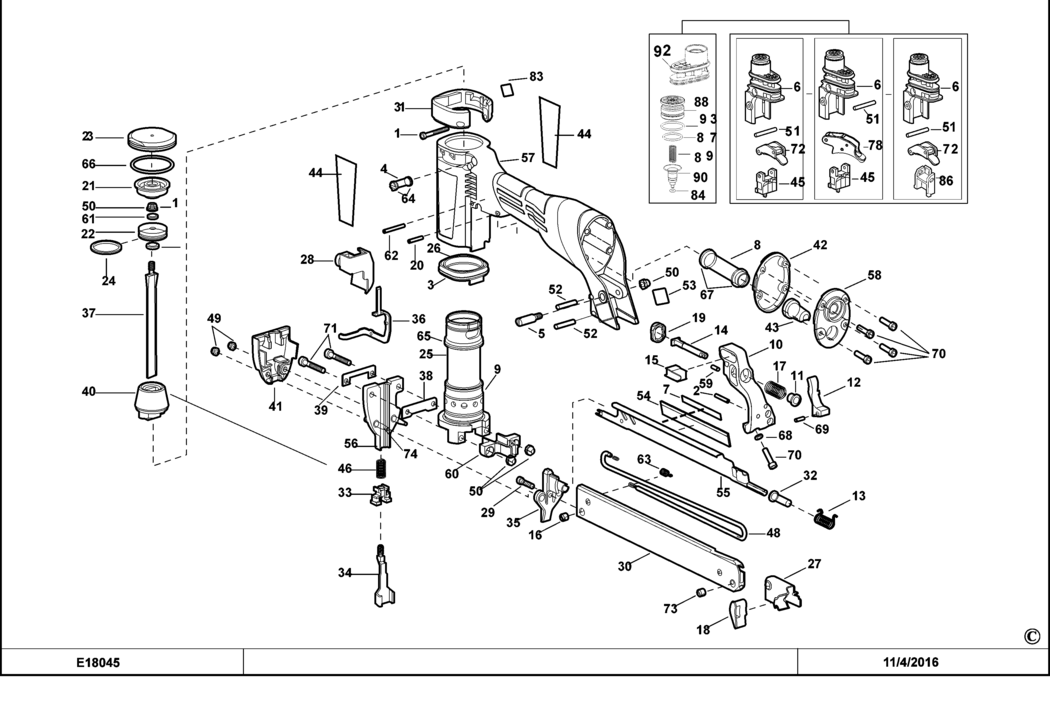

An exploded drawing and spare parts listing for the Bostitch 438S5-1 Type REV A Stapler

	Ex VAT	Inc VAT
1 - SCREW BDE-100258.A4 100258	£1.50	£1.80
2 - SPIROL PIN BDE-100263.A2 100263	£1.42	£1.70
3 - O RING BDE-100279.A6 100279	£1.50	£1.80
4 - VALVE BDE-101525.A0 101525	£9.41	£11.29
5 - SCREW.SPECIAL BDE-102168.A6 102168	£11.87	£14.24
6 - KIT BDE-TVA12.A5 TVA12	-
7 - LABEL BDE-103202.A0 103202	£1.50	£1.80
8 - TUBE.EXHAUST BDE-103208.A6 103208	£14.57	£17.48
9 - SEAL BDE-103211.A2 103211	£7.85	£9.42
10 - BRACKET BDE-103217.A8 103217	£44.14	£52.97
11 - BUSHING BDE-103218.A0 103218	£18.91	£22.69
12 - LEVER BDE-103447.A5 103447	£11.87	£14.24
13 - SPRING BDE-103549.A5 103549	£3.30	£3.96
14 - LATCH BDE-103558.A3 103558	£7.18	£8.62
15 - SLEEVE BDE-103601.A5 103601	£1.42	£1.70
16 - INSERT BDE-103750.A1 103750	£10.85	£13.02
17 - SPRING COMPRESSION BDE-103770.A8 103770	£2.78	£3.34
18 - HANDLE BDE-103791.A4 103791	£2.78	£3.34
19 - STOP BDE-103795.A9 103795	£2.78	£3.34
20 - PIN BDE-103858.A18 103858	£1.50	£1.80
21 - BUMPER BDE-103993.A3 103993	£5.72	£6.87
22 - PISTON BDE-103994.A2 103994	£7.85	£9.42
23 - CAP BDE-103995.A3 103995	£25.70	£30.84
24 - PISTON RING BDE-166045.A2 166045	£24.39	£29.27
25 - CYLINDER BDE-103997.A2 103997	£112.86	£135.43
26 - SLEEVE BDE-103999.A5 103999	£3.30	£3.96
27 - PUSHER BDE-104024.A1 104024	£41.24	£49.49
28 - COVER BDE-104027.A3 104027	£3.30	£3.96
29 - SCREW BDE-104030.A2 104030	£4.69	£5.63
30 - MAGAZINE SA BDE-104050 104050	£99.47	£119.36
31 - PROTECTOR BDE-104064.A2 104064	£19.90	£23.88
32 - BUSHING BDE-104067.A3 104067	£7.85	£9.42
33 - ADJUSTER BDE-104339.A5 104339	£17.03	£20.44
34 - ACTUATION ARM BDE-104341.A1 104341	£17.48	£20.97
35 - TIP BDE-107440.A1 107440	£131.46	£157.75
36 - ACTUATION ARM BDE-104623.A3 104623	£60.94	£73.13
37 - DRIVER BDE-104930.A1 104930	£80.98	£97.18
38 - PLATE BDE-104973.A1 104973	-
39 - PLATE BDE-104975.A8 104975	£2.78	£3.34
40 - BUMPER BDE-105007.A0 105007	-
41 - COVER BDE-105013.A1 105013	£37.35	£44.82
42 - GASKET BDE-105057.A3 105057	£4.69	£5.63
43 - EXHAUST BDE-105070.A6 105070	£1.50	£1.80
44 - LABEL BDE-115423.A2 115423	£1.50	£1.80
45 - GUIDE BDE-105932.A0 105932	-
46 - SPRING COMPRESSION BDE-105934.A8 105934	£1.50	£1.80
47 - WASHER BDE-105959.A0 105959	£14.57	£17.48
48 - SPRING BDE-106051.A8 106051	£9.41	£11.29
49 - LOCK-NUT BDE-MHE5080-100.A28 MHE5080-100	£1.50	£1.80
50 - NUT BDE-MHE6100-100.A21 MHE6100-100	£1.50	£1.80
51 - PIN BDE-106058.A0 106058	£1.50	£1.80
52 - PIN BDE-106059.A8 106059	£1.50	£1.80
53 - LABEL BDE-106097.A2 106097	£1.42	£1.70
54 - WARNING LABEL BDE-158612.A16 158612	£1.50	£1.80
55 - COVER BDE-106148.A2 106148	£65.52	£78.62
56 - NOSE BDE-160201.A0 160201	£55.30	£66.36
57 - FRAME BDE-166984.A3 166984	£126.63	£151.96
58 - END CAP BDE-106292.A3 106292	£12.17	£14.60
59 - SPIROL PIN BDE-106334.A8 106334	£1.50	£1.80
60 - GUIDE BDE-106474.A7 106474	£17.48	£20.97
61 - WASHER BDE-106691.A0 106691	£1.50	£1.80
62 - SPIROL PIN BDE-106871.A2 106871	£1.50	£1.80
63 - SPRING BDE-106933.A2 106933	£2.26	£2.71
64 - O RING BDE-107129.A2 107129	£3.30	£3.96
65 - O RING BDE-850607.A17 850607	£1.50	£1.80
66 - O RING BDE-850628.A3 850628	£24.39	£29.27
67 - O RING BDE-851554.A22 851554	£4.69	£5.63
68 - WASHER BDE-MLW5.A2 MLW5	£1.50	£1.80
69 - PIN BDE-MPG030012.A38 MPG030012	£1.50	£1.80
70 - SCREW BDE-MSC5080-20.A14 MSC5080-20	£1.50	£1.80
71 - SCREW BDE-MSC6100-35.A22 MSC6100-35	£1.50	£1.80
72 - KIT BDE-CNTK2.A18 CNTK2	£5.88	£7.06
73 - PIN BDE-T60024.A0 T60024	£14.57	£17.48
74 - PIN BDE-104069.A6 104069	£7.18	£8.62
78 - KIT BDE-SEQ6.A19 SEQ6	£10.85	£13.02
83 - LABEL BDE-110009.A6 110009	£2.26	£2.71
84 - O RING BDE-105996.A0 105996	£1.50	£1.80
86 - STOP BDE-106173.A12 106173	£2.26	£2.71
87 - O RING BDE-102163.A21 102163	£12.17	£14.60
88 - VALVE BDE-167205.A6 167205	£18.42	£22.10
89 - SPRING COMPRESSION BDE-101540.A8 101540	£1.42	£1.70
90 - SEAL BDE-101533.A0 101533	£2.26	£2.71
91 - SEAL BDE-101532-S.A2 101532-S	£1.42	£1.70
92 - O RING BDE-108467.A1 108467	£7.85	£9.42
93 - O RING BDE-102164.A2 102164	£10.85	£13.02
94 - NO LONGER AVAILABLE BDE-000000-00.A96765 000000-00	-
95 - WRENCH SPECIAL BDE-106427.A0 106427	£24.39	£29.27
96 - CAP BDE-112604.A5 112604	£41.24	£49.49

Attribute Name	Value
Brand	Bostitch
