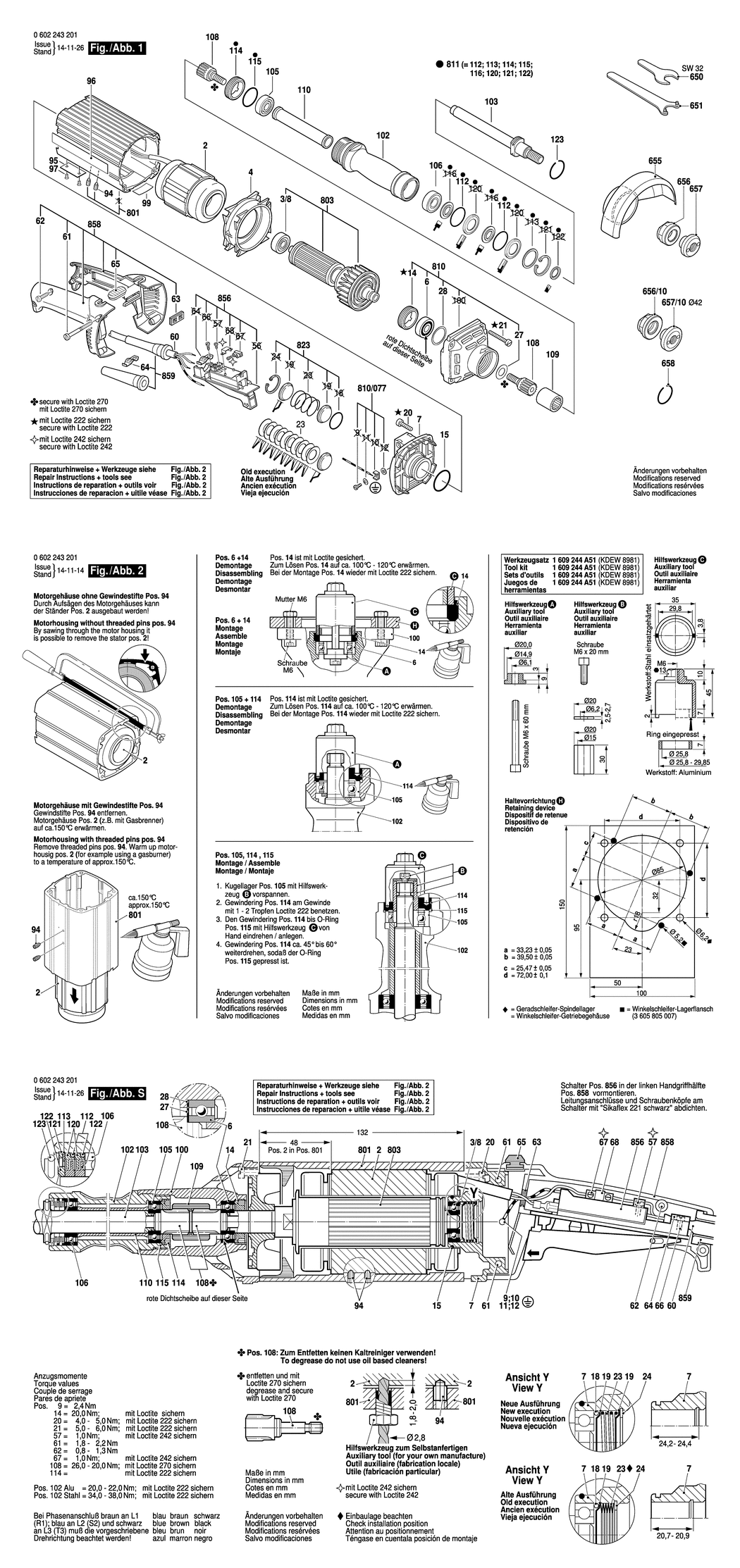

An exploded drawing and listing for the Bosch ---- / 0602243202 / --- 265 Volt
Ex VAT Inc VAT
2 - STATOR 265V/200HZ BSD-3604229081.A6 3604229081 £458.51 £550.21
3/8 - GROOVE BALL BEARING 12x32x10 BSD-3600905119.A54 3600905119 £27.23 £32.68
4 - AIR-DEFLECTOR RING BSD-3600209006.A1 3600209006 £5.58 £6.70
6 - GROOVE BALL BEARING BSD-3600905095.A271 3600905095 £21.52 £25.83
7 - BEARING FLANGE BSD-3605805009.A222 3605805009 £59.53 £71.44
14 - THREADED RING BSD-3603344024.A61 3603344024 £16.41 £19.69
15 - O-RING 38.1x2.2 MM BSD-1600210037.A251 1600210037 £2.61 £3.13
20 - THREAD-FORMING TAP. SCREW BSD-2914451079.A138 2914451079 £2.61 £3.13
21 - THREAD-FORMING TAP. SCREW AM 6x80-ST BSD-3603410007.A39 3603410007 £3.72 £4.47
23 - COMPRESSION SPRING BSD-3604611019.A144 3604611019 £2.61 £3.13
27 - SEALING DISC BSD-3600100049.A49 3600100049 £3.72 £4.47
28 - SEALING DISC BSD-3600100048.A229 3600100048 £2.80 £3.36
60 - ELEC. CABLE W/CONNECTION BSD-3604462017.A237 3604462017 £54.42 £65.30
61 - TAPPING SCREW BZ4.8x63 MM BSD-1603435008.A136 1603435008 £1.32 £1.58
62 - TAPPING SCREW DIN 7971-BZ3.9x19 BSD-2910211020.A492 2910211020 £2.16 £2.59
63 - CABLE ROUTING BSD-1602388027.A401 1602388027 £2.61 £3.13
64 - FASTENING CLAMP BSD-3601303002.A96 3601303002 £2.61 £3.13
64 - FASTENING CLAMP BSD-3601303004.A48 3601303004 £5.58 £6.70
65 - STORAGE LEDGE BSD-1602388029.A188 1602388029 £1.75 £2.10
94 - SET SCREW DIN 915-M4x6-45H BSD-2912081116.A160 2912081116 £2.61 £3.13
95 - NAMEPLATE BSD-3601106053.A687 3601106053 £5.30 £6.36
96 - MANUFACTURER'S NAMEPLATE BSD-3601110047.A162 3601110047 £2.80 £3.36
97 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A60 3603133001 £2.61 £3.13
99 - REFERENCE PLATE BSD-3601119236.A629 3601119236 £3.72 £4.47
102 - SPINDLE HOUSING BSD-3605806077.A11 3605806077 £306.65 £367.98
103 - GRINDING SPINDLE BSD-3606120008.A3 3606120008 £102.57 £123.08
105 - GROOVE BALL BEARING BSD-3600905060.A15 3600905060 £21.52 £25.83
106 - GROOVE BALL BEARING BSD-3600905058.A90 3600905058 £21.52 £25.83
108 - PINION Z=21 BSD-3606300074.A9 3606300074 £72.18 £86.62
109 - CLUTCH ELEMENT Z=21 BSD-3606491000.A17 3606491000 £6.52 £7.83
110 - SPACER SLEEVE BSD-3600700055.A28 3600700055 £31.64 £37.97
112 - O-RING 32.0x1.5 MM BSD-3600210057.A70 3600210057 £2.61 £3.13
114 - THREADED RING BSD-3603344024.A60 3603344024 £16.41 £19.69
115 - O-RING 33.0x2.5 MM BSD-3600210050.A110 3600210050 £2.61 £3.13
123 - RETAINING RING 24x2 DIN9045-24 BSD-2916609112.A162 2916609112 £2.61 £3.13
650 - SINGLE-HEAD ENG. WRENCH SW32 BSD-2607950021.A54 2607950021 £27.23 £32.68
651 - PIN-TYPE FACE-WRENCH BSD-2607950022.A15 2607950022 £31.64 £37.97
655 - PROTECTIVE COVER dia 80 MM BSD-3605510033.A11 3605510033 £93.88 £112.65
656 - CLAMPING-FLANGE BSD-3605703089.A36 3605703089 £63.50 £76.20
656/10 - CLAMPING-FLANGE BSD-3605703069.A11 3605703069 -
657 - CLAMPING RING BSD-3605703074.A75 3605703074 £21.68 £26.01
657/10 - CLAMPING RING BSD-3605703065.A36 3605703065 -
658 - RETAINING RING 24x2 DIN9045-24 BSD-2916609112.A163 2916609112 £2.61 £3.13
801 - MOTOR HOUSING GR.85 BSD-3605108159.A13 3605108159 £218.41 £262.09
801 - MOTOR HOUSING GR.83 BSD-3605108158.A24 3605108158 -
803 - ROTOR BSD-3604080038.A42 3604080038 £357.27 £428.72
810 - BEARING FLANGE BSD-3607020109.A20 3607020109 £283.50 £340.20
810/077 - SET OF EARTLING MATERIAL BSD-3607031299.A31 3607031299 £8.67 £10.41
811 - FASTENING PARTS KIT BSD-3607031288.A4 3607031288 £120.11 £144.13
823 - SPRING SET BSD-3607031296.A245 3607031296 £16.41 £19.69
856 - SWITCH KIT BSD-3607031298.A134 3607031298 £81.81 £98.17
856 - SWITCH KIT BSD-3607031295.A10 3607031295 -
858 - HANDLE BSD-3607031297.A32 3607031297 £37.27 £44.72
859 - GROMMET BSD-3607031550.A108 3607031550 £13.12 £15.75
