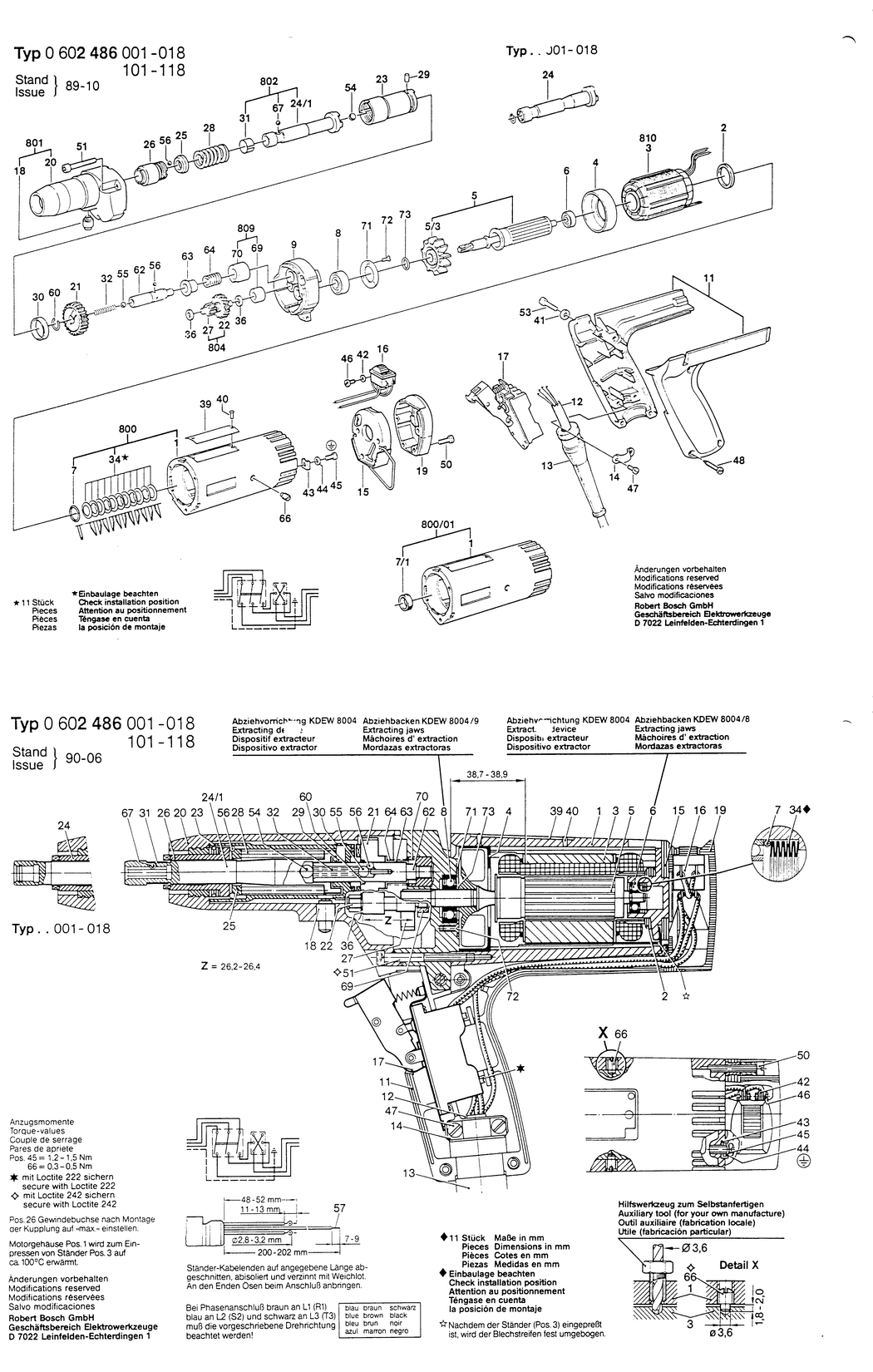

An exploded drawing and listing for the Bosch ---- / 0602486104 / --- 135 Volt
Ex VAT Inc VAT
2 - SEAL RING BSD-1600209011.A138 1600209011 £2.80 £3.36
4 - AIR-DEFLECTOR RING BSD-1600502005.A284 1600502005 £2.61 £3.13
5 - ROTOR BSD-3604080020.A72 3604080020 -
5/3 - FAN BSD-1606610105.A60 1606610105 £14.91 £17.89
6 - GROOVE BALL BEARING 5x16x5 BSD-1900900232.A139 1900900232 £16.74 £20.09
7 - O-RING 12.0x2.25 MM BSD-3600210039.A113 3600210039 £7.36 £8.83
8 - BALL BEARING 7x22x7 BSD-1900905018.A960 1900905018 £18.96 £22.75
9 - BEARING HOUSING BSD-1605820196.A41 1605820196 £154.03 £184.84
11 - HANDLE BSD-3605132044.A27 3605132044 -
12 - ELEC. CABLE W/CONNECTION BSD-3604462049.A18 3604462049 -
13 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A1287 3600703011 £2.80 £3.36
14 - FASTENING CLAMP BSD-1601302014.A708 1601302014 £2.61 £3.13
15 - CONNECTION HOUSING BSD-3600099005.A4 3600099005 £16.41 £19.69
16 - REVERSING SWITCH BSD-1607200043.A44 1607200043 -
17 - SWITCH BSD-1607200038.A135 1607200038 £54.42 £65.30
18 - PRESSURE SPINDLE BSD-1603203024.A51 1603203024 -
19 - SEALING CAP BSD-3605500071.A49 3605500071 £16.41 £19.69
21 - CYLINDRICAL GEAR Z=43 BSD-1606325021.A17 1606325021 -
22 - SPINDLE WITH GEAR Z=11 BSD-1606308017.A18 1606308017 -
23 - CARRIER BSD-3606445022.A1 3606445022 -
24 - COUPLING HALF BSD-1606455069.A1 1606455069 -
25 - TAPER RING BSD-1600250000.A13 1600250000 -
26 - THREADED BUSHING BSD-3600364010.A0 3600364010 -
27 - CYLINDRICAL GEAR Z=5 BSD-2606319050.A10 2606319050 -
28 - COMPRESSION SPRING BSD-1604619015.A7 1604619015 £5.01 £6.01
29 - ROLLER BSD-1603200019.A8 1603200019 -
30 - RETAINING SNAP RING BSD-2600209018.A16 2600209018 -
31 - HOLDING SPRING BSD-3604682003.A70 3604682003 -
32 - COMPRESSION SPRING BSD-1604612005.A3 1604612005 -
34 - DISC SPRING BSD-3600150013.A23 3600150013 £3.72 £4.47
36 - SHIM 0.50 MM BSD-2600100613.A198 2600100613 £1.75 £2.10
39 - NAMEPLATE BSD-3601106053.A4 3601106053 £5.30 £6.36
40 - GROOVED NAIL BSD-3603133000.A182 3603133000 £2.61 £3.13
41 - SPRING WASHER DIN 137-A5-FST BSD-2916060006.A106 2916060006 £1.32 £1.58
42 - SPRING WASHER A 3 DIN 137-ST BSD-2916060003.A295 2916060003 £1.32 £1.58
43 - CLAMPING SADDLE BSD-3601321001.A769 3601321001 £3.72 £4.47
44 - SPRING WASHER dia4.2 MM BSD-3600150006.A405 3600150006 £2.61 £3.13
45 - PAN HEAD SCREW DIN 85-AM4x8-MS BSD-2910110118.A225 2910110118 £1.75 £2.10
46 - PAN HEAD SCREW DIN 85-AM3x5-4.8 BSD-2910091047.A13 2910091047 £1.75 £2.10
47 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A155 2910021116 £2.16 £2.59
48 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A803 2910021122 £2.16 £2.59
50 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x22-8.8 BSD-2910141131.A4 2910141131 £2.16 £2.59
51 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8 BSD-2910141140.A89 2910141140 £1.75 £2.10
53 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8 BSD-2910011162.A109 2910011162 £1.75 £2.10
54 - BALL DIN 5401-8 MM III-ST BSD-1903230014.A139 1903230014 £1.75 £2.10
55 - BALL DIN 5401-6 G28 BSD-1903230011.A1 1903230011 £2.61 £3.13
56 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A459 1903230006 £2.16 £2.59
60 - RETAINING RING 10 DIN 9045 BSD-2916600006.A70 2916600006 £1.75 £2.10
62 - CONTROL SHAFT BSD-1603124099.A23 1603124099 -
63 - GUIDE BUSHING BSD-1600521018.A18 1600521018 -
64 - COMPRESSION SPRING BSD-1604616019.A17 1604616019 -
66 - SET SCREW BSD-3603402000.A114 3603402000 £1.75 £2.10
67 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A458 1903230006 £2.16 £2.59
69 - BUSHING BSD-2600300058.A124 2600300058 -
70 - CLAMP BUSHING BSD-1600300081.A18 1600300081 -
71 - RETAINING WASHER BSD-3600190012.A51 3600190012 -
72 - COUNTERSUNK-HEAD SCREW DIN 963-M3x8-8.8 BSD-2910780050.A127 2910780050 -
73 - O-RING 8.0x1.0 MM BSD-1600210045.A193 1600210045 £1.75 £2.10
99 - REFERENCE PLATE BSD-3601119236.A1810 3601119236 £3.72 £4.47
650 - SLOTTED SCREWDRIVER BSD-1607950037.A26 1607950037 £51.22 £61.47
800 - MOTOR HOUSING BSD-3605102028.A2 3605102028 £156.22 £187.46
801 - GEAR HOUSING BSD-3605806013.A15 3605806013 -
802 - CARRIER BSD-3606445017.A11 3606445017 -
804 - SPINDLE WITH GEAR Z=11/34 BSD-1606328102.A18 1606328102 -
809 - BEARING HOUSING BSD-1605820196.A43 1605820196 £154.03 £184.84
810 - STATOR 200V/300HZ.135V/200HZ BSD-1604229201.A53 1604229201 £410.78 £492.94
