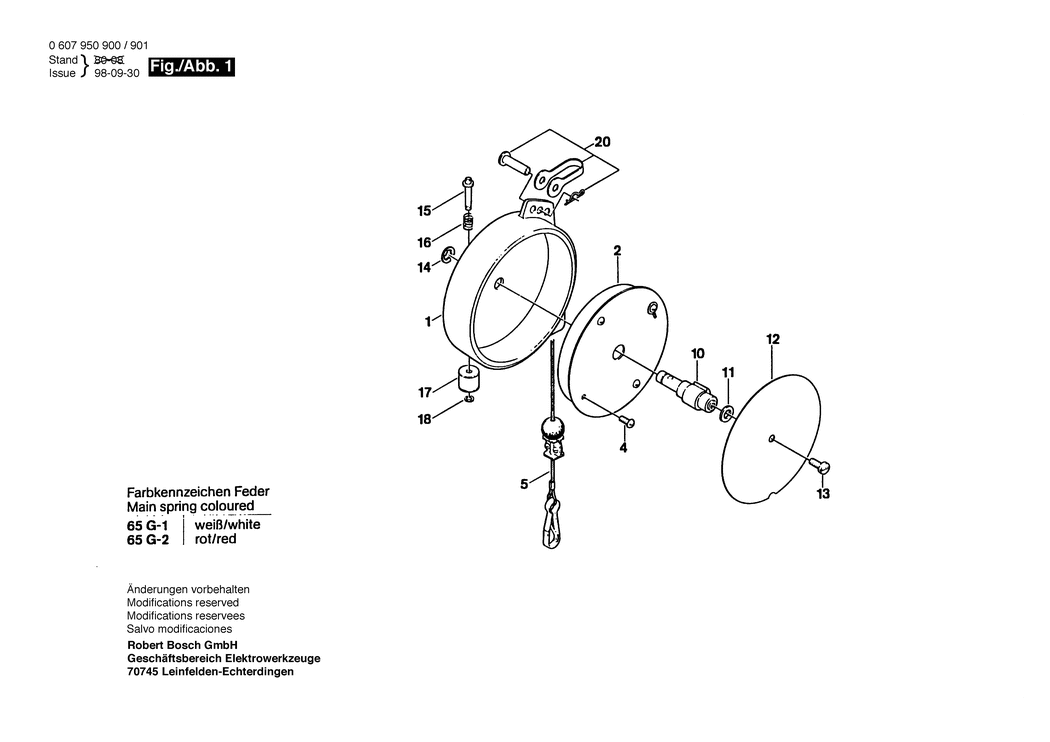

An exploded drawing and listing for the Bosch ---- / 0607950901 / ---
Ex VAT Inc VAT
1 - HOUSING HALF BSD-1609320001.A0 1609320001 -
2 - SPRING PACK BSD-1609320010.A0 1609320010 -
2 - SPIRAL SPRING BSD-1609320053.A0 1609320053 -
4 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x10-4.8 BSD-2910011023.A0 2910011023 -
5 - CABLE CONTROL BSD-1609320051.A0 1609320051 -
10 - CAMSHAFT BSD-1609320021.A1 1609320021 -
11 - PLAIN WASHER BSD-1609320007.A1 1609320007 -
12 - NAMEPLATE BSD-1609320003.A0 1609320003 -
13 - SOCKET HEAD CAP SCREW BSD-1609320011.A0 1609320011 -
14 - SPRING RETAINING RING BSD-1609320006.A0 1609320006 -
15 - DETENT PIN BSD-1609320004.A0 1609320004 -
16 - COMPRESSION SPRING BSD-1609320005.A1 1609320005 -
17 - SPACER BUSHING BSD-1609320008.A1 1609320008 -
18 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A189 2916080005 -
20 - RETAINING BRACKET BSD-1609320000.A1 1609320000 -
