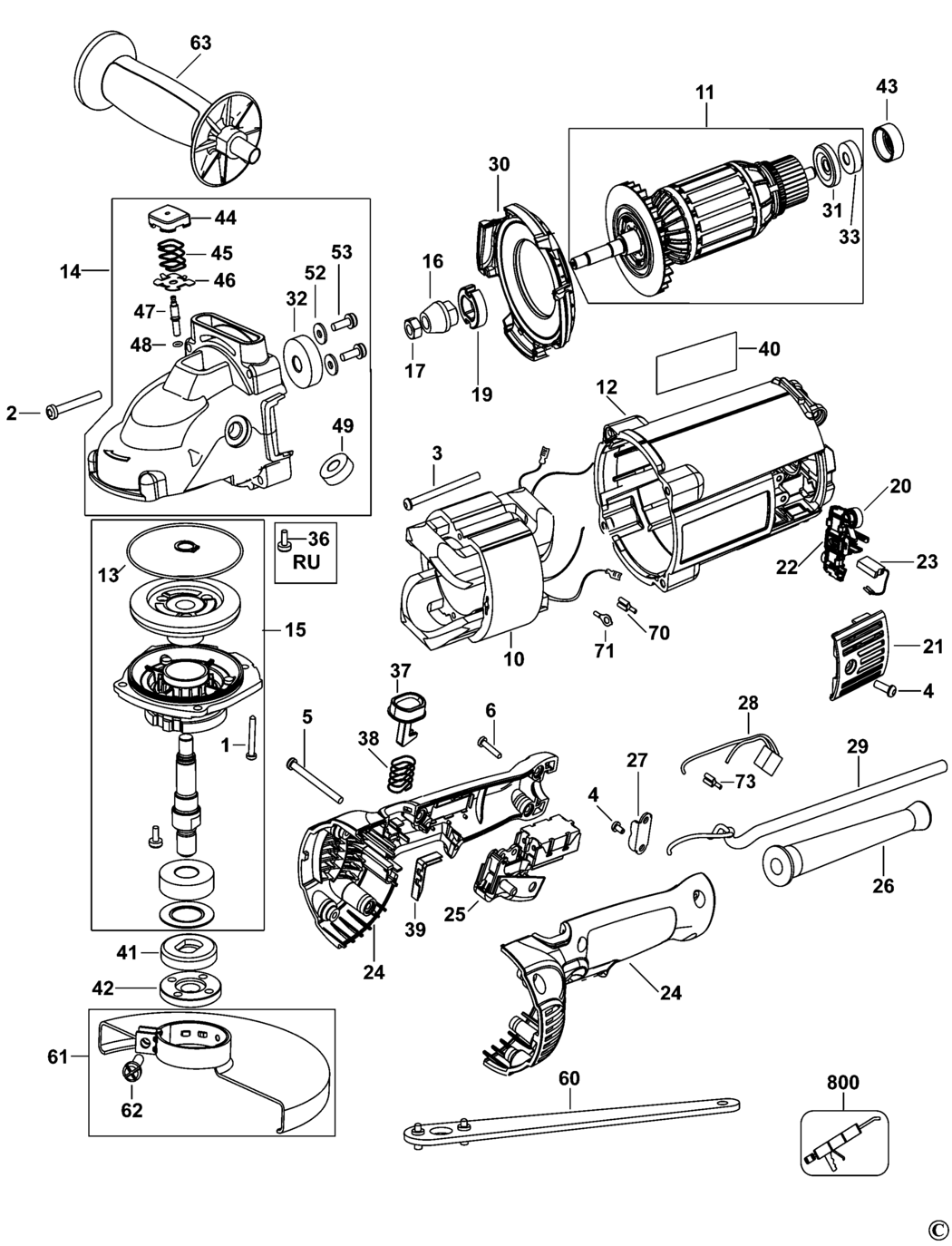

1 - SCREW
BDE-330045-14.A71
330045-14
|
£1.50
|
£1.80
|
|
|
2 - SCREW
BDE-330019-26.A24
330019-26
|
£1.50
|
£1.80
|
|
|
3 - SCREW
BDE-330019-19.A0
330019-19
|
£1.50
|
£1.80
|
|
|
4 - SCREW.TEMP
BDE-330019-11.A4
330019-11
|
£1.50
|
£1.80
|
|
|
5 - SCREW
BDE-330019-18.A43
330019-18
|
£1.50
|
£1.80
|
|
|
6 - SCREW
BDE-330019-32.A123
330019-32
|
£1.50
|
£1.80
|
|
|
13 - O RING
BDE-397031-00.A57
397031-00
|
£1.50
|
£1.80
|
|
|
14 - GEARCASE SA
BDE-N074214.A4
N074214
|
£44.14
|
£52.97
|
|
|
15 - GEARCASE COVER SA
BDE-N261160.A1
N261160
|
£44.00
|
£52.80
|
|
|
16 - PINION
BDE-N286560.A0
N286560
|
£9.41
|
£11.29
|
|
|
17 - NUT
BDE-330015-03.A42
330015-03
|
£1.50
|
£1.80
|
|
|
19 - COLLAR
BDE-N014393.A3
N014393
|
-
|
|
|
|
26 - CORD PROTECTOR
BDE-N219433.A9
N219433
|
£1.50
|
£1.80
|
|
|
28 - CAPACITOR
BDE-632218-00.A3
632218-00
|
£4.69
|
£5.63
|
|
|
30 - BAFFLE FAN
BDE-631350-00.A32
631350-00
|
£2.26
|
£2.71
|
|
|
31 - SHIELD
BDE-393238-00.A66
393238-00
|
£1.50
|
£1.80
|
|
|
32 - BEARING
BDE-N389509.A26
N389509
|
£3.80
|
£4.56
|
|
|
33 - BEARING
BDE-N110359.A179
N110359
|
£3.75
|
£4.50
|
|
|
37 - BUTTON LOCK-OFF
BDE-636503-00.A21
636503-00
|
£1.50
|
£1.80
|
|
|
38 - SPRING
BDE-636502-00.A15
636502-00
|
£1.50
|
£1.80
|
|
|
39 - COVER
BDE-N391190.A0
N391190
|
£1.50
|
£1.80
|
|
|
41 - INNER FLANGE
BDE-403150-01.A30
403150-01
|
£4.69
|
£5.63
|
|
|
42 - OUTER FLANGE
BDE-401678-05.A60
401678-05
|
£4.69
|
£5.63
|
|
|
43 - SLEEVE INSULATING
BDE-609970-00.A99
609970-00
|
£1.50
|
£1.80
|
|
|
44 - CAP
BDE-630553-00.A5
630553-00
|
£1.50
|
£1.80
|
|
|
45 - SPRING
BDE-638328-00.A4
638328-00
|
£1.50
|
£1.80
|
|
|
46 - RETAINER
BDE-635908-00.A8
635908-00
|
£1.50
|
£1.80
|
|
|
47 - PIN
BDE-634589-00.A16
634589-00
|
£1.82
|
£2.19
|
|
|
48 - O RING
BDE-750831.A6
750831
|
£1.50
|
£1.80
|
|
|
49 - SLEEVE BEARING
BDE-449852-00.A7
449852-00
|
-
|
|
|
|
52 - WASHER
BDE-640591-00.A34
640591-00
|
£1.50
|
£1.80
|
|
|
53 - SCREW
BDE-330045-67.A26
330045-67
|
£16.03
|
£19.24
|
|
|
60 - WRENCH PIN
BDE-635261-00.A1
635261-00
|
£4.69
|
£5.63
|
|
|
61 - GUARD SA
BDE-N036843.A6
N036843
|
£16.03
|
£19.24
|
|
|
62 - SCREW
BDE-330024-23.A11
330024-23
|
£1.50
|
£1.80
|
|
|
63 - SIDE HANDLE
BDE-651858-01.A6
651858-01
|
£7.18
|
£8.62
|
|
|
70 - TERMINAL
BDE-612273-00.A22
612273-00
|
£1.50
|
£1.80
|
|
|
71 - TERMINAL
BDE-610057-00.A20
610057-00
|
£1.50
|
£1.80
|
|
|
73 - TERMINAL
BDE-53650-00.A2
53650-00
|
£1.50
|
£1.80
|
|
|
800 - GREASE 50 GMS
BDE-583534-00.A243
583534-00
|
£144.10
|
£172.92
|
|
