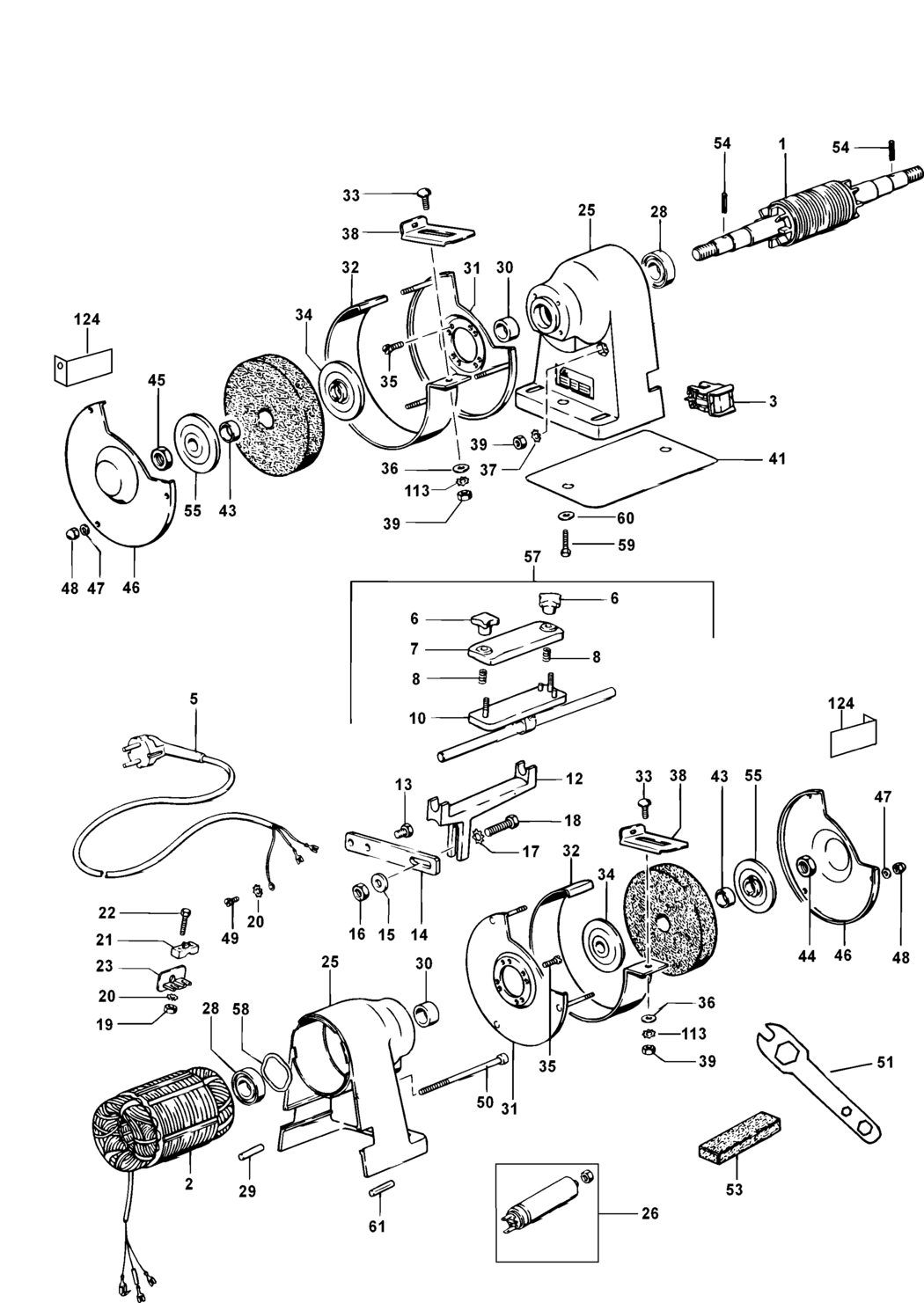

An exploded drawing and spare parts listing for the Elu MWA67 Type 1 Bench Grinder
Ex VAT Inc VAT
1 - ROTOR BDE-378881.A1 378881 £19.90 £23.88
2 - STATOR BDE-378891.A7 378891 £84.42 £101.30
3 - SWITCH BDE-378787-03.A8 378787-03 £17.03 £20.44
5 - CORDSET GB BDE-378893-01.A8 378893-01 £9.41 £11.29
6 - KNOB SA BDE-744324.A37 744324 £2.78 £3.34
7 - STRIP BDE-744231.A0 744231 £7.85 £9.42
8 - SPRING BDE-742243.A13 742243 £1.50 £1.80
10 - SUPPORT BDE-744232.A18 744232 -
12 - HOLDER BDE-744230.A18 744230 £10.85 £13.02
13 - SCREW BDE-378908.A5 378908 £1.50 £1.80
14 - SUPPORT BDE-744234.A0 744234 £3.30 £3.96
15 - WASHER BDE-742172.A40 742172 £1.50 £1.80
16 - NUT BDE-725187.A9 725187 £1.50 £1.80
17 - WASHER M8 BDE-742046.A7 742046 £1.50 £1.80
18 - SCREW BDE-860085-19.A98 860085-19 £1.50 £1.80
19 - NUT BDE-725698.A17 725698 £1.50 £1.80
20 - WASHER BDE-725163.A8 725163 £1.50 £1.80
21 - NO LONGER AVAILABLE BDE-000000-00.A21532 000000-00 -
22 - SCREW BDE-742041.A15 742041 £1.50 £1.80
23 - CABLE CLAMP BDE-742125.A0 742125 £1.50 £1.80
25 - HOUSING BDE-378791-20.A8 378791-20 £55.30 £66.36
26 - CAPACITOR BDE-378892.A1 378892 £10.85 £13.02
28 - NO LONGER AVAILABLE BDE-000000-00.A21533 000000-00 -
29 - PIN BDE-742168.A0 742168 £2.78 £3.34
30 - BUSH BDE-742153.A0 742153 £2.78 £3.34
31 - PLATE BDE-744236.A5 744236 £19.90 £23.88
32 - GUARD BDE-744238.A4 744238 £14.57 £17.48
33 - SCREW BDE-725184.A16 725184 £1.50 £1.80
34 - CLAMP BDE-742298.A21 742298 £3.30 £3.96
35 - NO LONGER AVAILABLE BDE-000000-00.A21534 000000-00 -
36 - WASHER BDE-880391.A53 880391 £1.50 £1.80
37 - WASHER BDE-743415.A42 743415 £1.50 £1.80
38 - BRACKET BDE-744188.A9 744188 £3.30 £3.96
39 - NUT BDE-725125.A32 725125 £1.50 £1.80
41 - PLATE BDE-378841.A7 378841 £1.82 £2.19
42 - FOOT BDE-378738.A0 378738 £19.90 £23.88
43 - BUSH BDE-742134.A0 742134 £1.50 £1.80
44 - NUT BDE-742887.A20 742887 £1.82 £2.19
45 - NUT LH BDE-742140.A21 742140 £1.82 £2.19
46 - GUARD BDE-744237.A6 744237 £14.57 £17.48
47 - WASHER BDE-725269.A18 725269 £1.50 £1.80
48 - LOCK-NUT BDE-146823100.A3 146823100 £1.50 £1.80
49 - SCREW BDE-378795-01.A0 378795-01 £1.50 £1.80
50 - SCREW BDE-378907.A1 378907 £1.50 £1.80
51 - SPANNER BDE-742511.A1 742511 £2.78 £3.34
53 - STONE BDE-742240.A5 742240 £16.03 £19.24
54 - PIN BDE-742053.A8 742053 £1.50 £1.80
55 - CLAMP OUTER BDE-742066.A21 742066 £2.78 £3.34
57 - CLAMP KIT SA BDE-744253.A8 744253 £55.30 £66.36
58 - WASHER BDE-113933000.A18 113933000 £1.50 £1.80
59 - SCREW BDE-726430.A6 726430 £1.50 £1.80
60 - WASHER BDE-725165.A24 725165 £1.50 £1.80
61 - PIN BDE-742168.A1 742168 £2.78 £3.34
112 - VISOR BDE-742133.A14 742133 £3.30 £3.96
113 - WASHER BDE-742040.A6 742040 £1.50 £1.80
