1 - DRILL SPINDLE
MET-341604400.A0
341604400
|
-
|
|
|
|
2 - RETAINING RING
MET-141180060.A15
141180060
|
£1.50
|
£1.80
|
|
|
3 - COVER PLATE
MET-343362170.A2
343362170
|
£11.78
|
£14.13
|
|
|
4 - BALL BEARING 12X28X8
MET-143111440.A22
143111440
|
£26.35
|
£31.62
|
|
|
5 - RETAINING RING
MET-141181560.A1
141181560
|
£1.50
|
£1.80
|
|
|
6 - SIDE SUPPORT HANDLE COMPL.
MET-314001250.A1
314001250
|
£22.96
|
£27.55
|
|
|
7 - TIGHT-FIT SCREW PLAST. 45
MET-341702180.A8
341702180
|
£3.20
|
£3.84
|
|
|
8 - GEAR HOUSING CPL.
MET-316048270.A0
316048270
|
£55.90
|
£67.08
|
|
|
9 - SPUR GEAR
MET-340011640.A0
340011640
|
£32.88
|
£39.45
|
|
|
10 - PINION SHAFT W.SLIP-CLUTCH
MET-316048280.A5
316048280
|
£60.03
|
£72.04
|
|
|
11 - GASKET
MET-339210270.A3
339210270
|
£4.76
|
£5.71
|
|
|
12 - GEAR FLANGE CPL.
MET-316022940.A9
316022940
|
£54.94
|
£65.93
|
|
|
13 - PINION SHAFT
MET-340011630.A10
340011630
|
£42.65
|
£51.18
|
|
|
14 - SPUR GEAR
MET-340011620.A0
340011620
|
£32.88
|
£39.45
|
|
|
15 - SEALING RING
MET-343356500.A1
343356500
|
£1.50
|
£1.80
|
|
|
16 - BALL BEARING 8X22X7
MET-143114880.A87
143114880
|
£9.62
|
£11.54
|
|
|
17 - FAN CPL.
MET-330001060.A8
330001060
|
£6.38
|
£7.65
|
|
|
18 - ARMATURE CPL. 230 V
MET-310006630.A0
310006630
|
£67.04
|
£80.45
|
|
|
19 - BALL BEARING 6X19X6
MET-143115660.A65
143115660
|
£3.82
|
£4.59
|
|
|
20 - WASHER
MET-141153400.A69
141153400
|
£3.20
|
£3.84
|
|
|
21 - INTERMEDIATE FLANGE
MET-343361780.A8
343361780
|
£8.37
|
£10.04
|
|
|
22 - RATING PLATE
MET-338057780.A1
338057780
|
-
|
|
|
|
23 - MOTOR HOUSING
MET-315012320.A2
315012320
|
£32.88
|
£39.45
|
|
|
24 - LABEL
MET-338123730.A0
338123730
|
£6.38
|
£7.65
|
|
|
25 - PRESSURE PLATE CPL.
MET-316021020.A1
316021020
|
£13.63
|
£16.36
|
|
|
26 - ELECTRONIC UNIT 220 V
MET-343071870.A0
343071870
|
£68.35
|
£82.02
|
|
|
27 - SCREW
MET-341702050.A0
341702050
|
£1.50
|
£1.80
|
|
|
28 - PISTOL GRIP
MET-343362350.A10
343362350
|
£22.96
|
£27.55
|
|
|
29 - STRAND CPL. AWG18SW
MET-344490150.A3
344490150
|
£3.82
|
£4.59
|
|
|
30 - CIRCLIP
MET-141181760.A9
141181760
|
£1.50
|
£1.80
|
|
|
31 - COVER
MET-339111020.A9
339111020
|
£1.50
|
£1.80
|
|
|
32 - PRESSURE SPRING
MET-342001210.A7
342001210
|
£1.50
|
£1.80
|
|
|
33 - LOCKING CATCH
MET-343362460.A0
343362460
|
£1.50
|
£1.80
|
|
|
34 - O-RING
MET-143192570.A17
143192570
|
£3.20
|
£3.84
|
|
|
35 - O-RING
MET-143192430.A159
143192430
|
£3.20
|
£3.84
|
|
|
36 - SELF-TAP. FILL. H. SCREW
MET-141118260.A84
141118260
|
£1.50
|
£1.80
|
|
|
37 - FIELD COIL 230 V
MET-311008830.A0
311008830
|
£61.08
|
£73.30
|
|
|
38 - M-LABEL 56X25
MET-338122370.A36
338122370
|
£3.20
|
£3.84
|
|
|
40 - INDEX BOLT
MET-342001140.A35
342001140
|
£3.20
|
£3.84
|
|
|
41 - BRUSH WITH HOLDER
MET-316033730.A6
316033730
|
£22.61
|
£27.13
|
|
|
42 - SETTING RING CPL.
MET-316025760.A0
316025760
|
£19.18
|
£23.02
|
|
|
44 - SELF-TAP. FILL. H. SCREW
MET-141116840.A13
141116840
|
£1.50
|
£1.80
|
|
|
45 - FILLISTER HEAD SCREW
MET-141116970.A126
141116970
|
£3.20
|
£3.84
|
|
|
46 - SELF-TAP FILL H SCREW
MET-141116020.A371
141116020
|
£3.20
|
£3.84
|
|
|
47 - CABLE CLIP
MET-343362490.A995
343362490
|
£3.20
|
£3.84
|
|
|
48 - COVER
MET-343361770.A3
343361770
|
£3.20
|
£3.84
|
|
|
49 - CABLE SLEEVE
MET-344100590.A11
344100590
|
£3.82
|
£4.59
|
|
|
50 - CABLE WITH PLUG
MET-344489580.A52
344489580
|
£17.55
|
£21.06
|
|
|
880 - GREASE 50GR 1.8oz
MET-344130970.A88
344130970
|
£15.41
|
£18.49
|
|
|

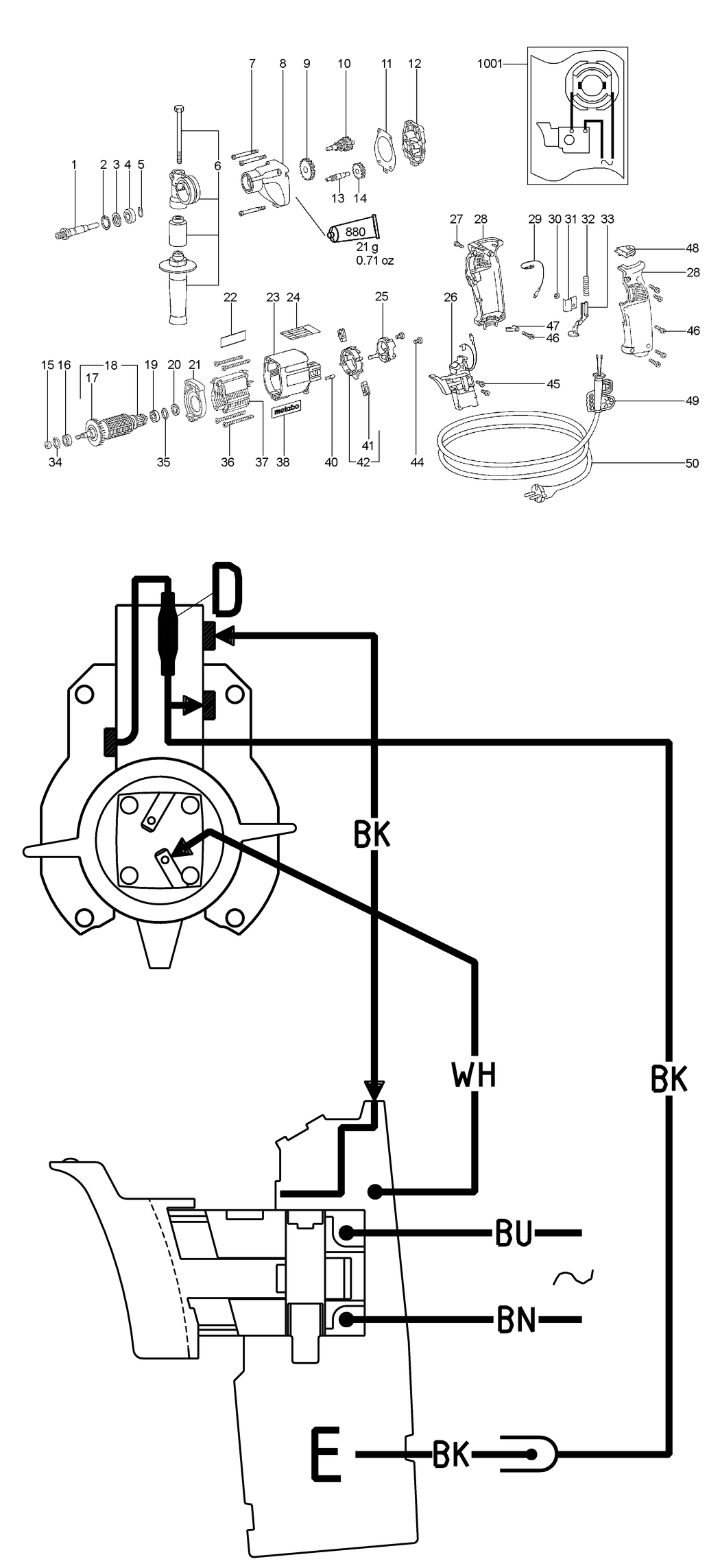

1001 - DIAGRAM
MET-338500070.A0
338500070
|
-
|
|
|
