1 - SELF-TAP. FILL. H. SCREW
MET-341723170.A1
341723170
|
-
|
|
|
|
2 - PRESS BUTTON
MET-343448230.A20
343448230
|
-
|
|
|
|
3 - PRESSURE SPRING
MET-342024350.A18
342024350
|
-
|
|
|
|
4 - GEAR HOUSING COMPL.
MET-316097750.A20
316097750
|
-
|
|
|
|
5 - FELT WASHER
MET-344071130.A2
344071130
|
-
|
|
|
|
6 - HEX NUT
MET-341109130.A0
341109130
|
-
|
|
|
|
7 - BALL BEARING
MET-320054450.A19
320054450
|
-
|
|
|
|
8 - SEALING RING
MET-344114080.A21
344114080
|
-
|
|
|
|
9 - WASHER
MET-341020220.A20
341020220
|
-
|
|
|
|
10 - RETAINING RING
MET-342024300.A3
342024300
|
-
|
|
|
|
11 - BAFFLE
MET-339153570.A21
339153570
|
-
|
|
|
|
12 - ARMATURE 110V
MET-310150120.A0
310150120
|
£64.30
|
£77.16
|
|
|
13 - BAFFLE
MET-339153580.A0
339153580
|
-
|
|
|
|
14 - HANDLE CPL.
MET-314000960.A185
314000960
|
£30.06
|
£36.07
|
|
|
15 - RETAINING RING
MET-141180060.A132
141180060
|
£1.50
|
£1.80
|
|
|
16 - FILLISTER HEAD SCREW (DIN 7985)
MET-141123890.A18
141123890
|
£1.50
|
£1.80
|
|
|
17 - BEARING COVER
MET-339149180.A21
339149180
|
-
|
|
|
|
18 - BALL BEARING
MET-320054460.A2
320054460
|
-
|
|
|
|
19 - FELT
MET-344071140.A19
344071140
|
-
|
|
|
|
20 - SPINDLE
MET-341605670.A17
341605670
|
-
|
|
|
|
21 - SEALING WASHER
MET-339013190.A3
339013190
|
-
|
|
|
|
22 - GEAR FLANGE
MET-315203160.A20
315203160
|
-
|
|
|
|
23 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A155
141121640
|
£1.50
|
£1.80
|
|
|
24 - CHEESE-HEAD SCREW
MET-141114010.A28
141114010
|
£1.50
|
£1.80
|
|
|
25 - WHEEL GUARD COMPL. D180
MET-339204900.A3
339204900
|
-
|
|
|
|
26 - CLAMPING FLANGE
MET-341031160.A256
341031160
|
£15.41
|
£18.49
|
|
|
27 - FLANGE NUT
MET-341106900.A169
341106900
|
£11.78
|
£14.13
|
|
|
28 - LOCKING BOLT
MET-341519740.A1
341519740
|
-
|
|
|
|
29 - BEVEL GEAR AND PINION F. dia180
MET-316097760.A2
316097760
|
-
|
|
|
|
30 - FIELD 120V-127V
MET-311013030.A1
311013030
|
-
|
|
|
|
31 - DUST SEAL
MET-344114090.A0
344114090
|
-
|
|
|
|
32 - BALL BEARING
MET-320054470.A19
320054470
|
-
|
|
|
|
33 - MOTOR HOUSING
MET-343448240.A2
343448240
|
-
|
|
|
|
34 - CARBON BRUSH HOLDER COMPL.
MET-316097780.A1
316097780
|
£8.37
|
£10.04
|
|
|
35 - PAN HD.PLASTIC SCR.
MET-341723070.A24
341723070
|
-
|
|
|
|
36 - CARBON BRUSH COMPL.
MET-316097790.A20
316097790
|
£6.38
|
£7.65
|
|
|
37 - BRUSH HOLDER COVER
MET-343448260.A2
343448260
|
-
|
|
|
|
38 - SELF-TAP. FILL. H. SCREW
MET-341723190.A20
341723190
|
-
|
|
|
|
39 - METABO LABEL
MET-338129850.A20
338129850
|
-
|
|
|
|
40 - SWITCH
MET-343448310.A5
343448310
|
-
|
|
|
|
41 - SLEEVE 120V
MET-344114110.A1
344114110
|
-
|
|
|
|
43 - CABLE CLIP
MET-343448330.A19
343448330
|
-
|
|
|
|
44 - CABLE SLEEVE
MET-344114130.A0
344114130
|
-
|
|
|
|
45 - CARRY HANDLE (B)
MET-343448250.A21
343448250
|
-
|
|
|
|
46 - CARRY HANDLE (A)
MET-343448270.A21
343448270
|
-
|
|
|
|
47 - CABLE 110V
MET-344531920.A0
344531920
|
-
|
|
|
|
48 - RATING PLATE
MET-338070610.A0
338070610
|
-
|
|
|
|
49 - PART NOT NEEDED
MET-399999990.A952
399999990
|
-
|
|
|
|
51 - PIN SPANNER
MET-344160840.A148
344160840
|
£7.36
|
£8.83
|
|
|
880 - GREASE 100G
MET-344130910.A408
344130910
|
£19.18
|
£23.02
|
|
|

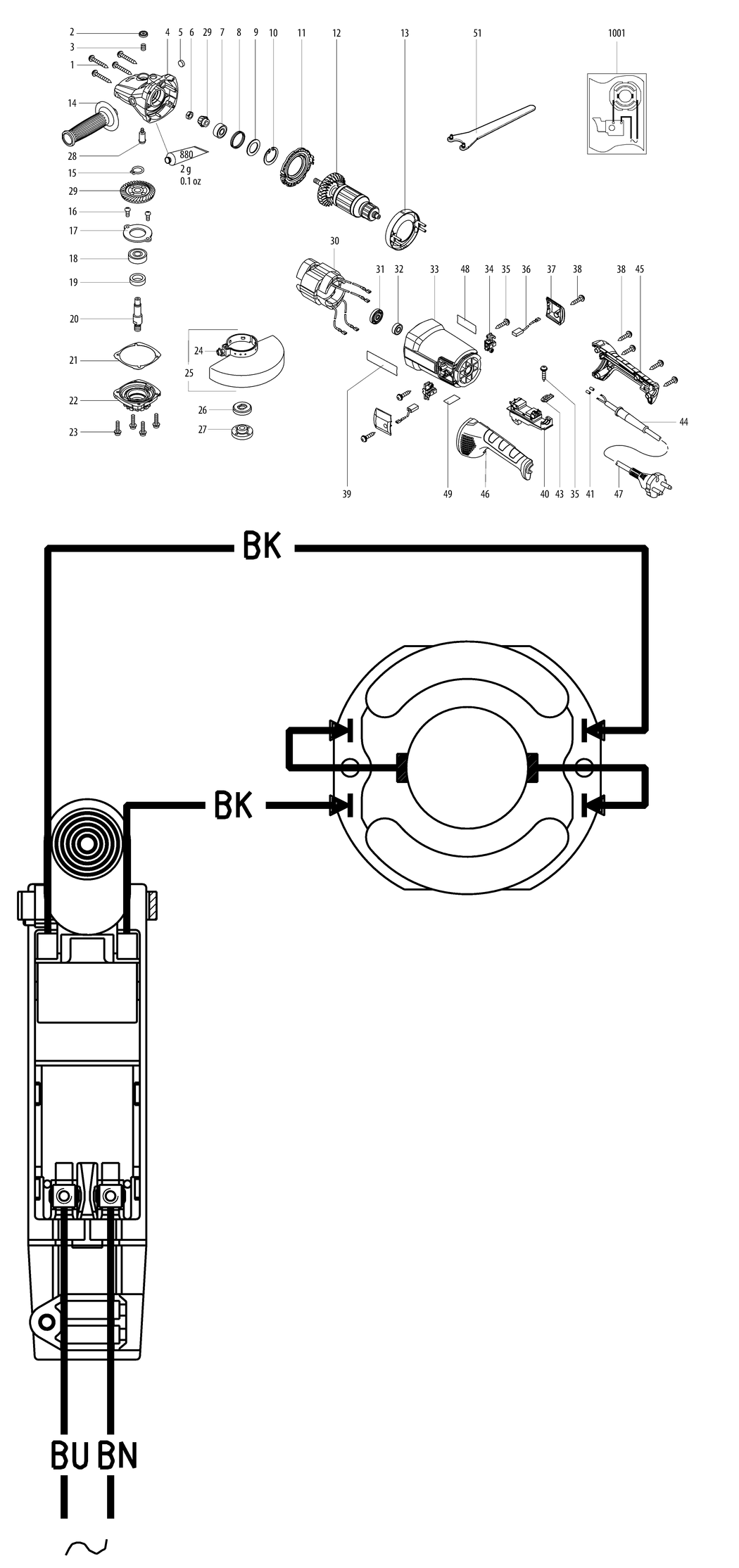

1001 - DIAGRAM
MET-338502110.A4
338502110
|
-
|
|
|
