1 - HANDLE CPL.
MET-314000540.A67
314000540
|
£15.41
|
£18.49
|
|
|
2 - SPINDLE STOP COMPL.
MET-316040610.A172
316040610
|
£4.76
|
£5.71
|
|
|
3 - GEAR HOUSING COMPL.
MET-316063640.A12
316063640
|
£32.88
|
£39.45
|
|
|
4 - HEXAGON NUT W.RECESS
MET-341100940.A300
341100940
|
£3.20
|
£3.84
|
|
|
5 - BEVEL GEAR AND PINION
MET-316057810.A4
316057810
|
£26.35
|
£31.62
|
|
|
6 - FILLISTER HEAD SCREW
MET-141110460.A129
141110460
|
£1.50
|
£1.80
|
|
|
7 - BALL BEARING 8X22X7
MET-143115420.A24
143115420
|
£8.37
|
£10.04
|
|
|
8 - FIXED BEARING COVER
MET-315417490.A57
315417490
|
-
|
|
|
|
9 - SEALING WASHER
MET-343392740.A30
343392740
|
£6.38
|
£7.65
|
|
|
10 - BALL BEARING 6X19X6
MET-143115870.A127
143115870
|
£5.62
|
£6.75
|
|
|
11 - ARMATURE CPL. 120 V
MET-316066550.A1
316066550
|
£63.36
|
£76.03
|
|
|
12 - RUBBER BUSHING
MET-344095260.A230
344095260
|
£3.20
|
£3.84
|
|
|
13 - BAFFLE
MET-343399270.A12
343399270
|
£2.94
|
£3.53
|
|
|
14 - COVER
MET-339011850.A13
339011850
|
-
|
|
|
|
15 - SELF-TAP FILL H SCREW
MET-141116020.A454
141116020
|
£3.20
|
£3.84
|
|
|
16 - O-RING
MET-143195920.A19
143195920
|
-
|
|
|
|
17 - SPINDLE M14
MET-341161150.A82
341161150
|
-
|
|
|
|
18 - O-RING
MET-143192540.A25
143192540
|
£1.50
|
£1.80
|
|
|
19 - FLANGE COMPL.
MET-316063780.A18
316063780
|
£36.59
|
£43.91
|
|
|
20 - FILL. HEAD SCREW
MET-141120070.A265
141120070
|
£1.50
|
£1.80
|
|
|
21 - FLANGE NUT
MET-341106900.A224
341106900
|
£11.78
|
£14.13
|
|
|
22 - CLAMPING FLANGE
MET-341031160.A116
341031160
|
£15.41
|
£18.49
|
|
|
23 - FILLISTER HEAD SCREW
MET-141124060.A19
141124060
|
-
|
|
|
|
24 - WHEEL GUARD COMPL. dia115
MET-339203660.A11
339203660
|
£11.78
|
£14.13
|
|
|
25 - M-LABEL 08 52X22
MET-338122160.A147
338122160
|
£1.50
|
£1.80
|
|
|
26 - PADDLE SWITCH
MET-343409420.A11
343409420
|
-
|
|
|
|
27 - TORSION SPRING
MET-342003720.A0
342003720
|
-
|
|
|
|
28 - CABLE CLIP
MET-343362490.A1268
343362490
|
£3.20
|
£3.84
|
|
|
29 - FIELD COIL
MET-311011850.A4
311011850
|
-
|
|
|
|
30 - RATING PLATE 01234390 WP 850-115
MET-338066510.A0
338066510
|
-
|
|
|
|
31 - MOTOR HOUSING
MET-315013440.A12
315013440
|
-
|
|
|
|
35 - BRUSH HOLDER
MET-343012950.A61
343012950
|
£3.82
|
£4.59
|
|
|
36 - SELF-TAP. FILL. H. SCREW
MET-141123940.A19
141123940
|
-
|
|
|
|
37 - SWITCH
MET-343409200.A2
343409200
|
£4.76
|
£5.71
|
|
|
38 - CABLE SLEEVE
MET-344097360.A10
344097360
|
£2.94
|
£3.53
|
|
|
39 - CABLE W. UK PLUG 110 V
MET-344498500.A1
344498500
|
£48.88
|
£58.66
|
|
|
40 - PIN SPANNER
MET-344163920.A125
344163920
|
£4.76
|
£5.71
|
|
|
41 - CARBON BRUSH
MET-316049670.A27
316049670
|
£13.63
|
£16.36
|
|
|
42 - COMPENSATING WASHER
MET-339060160.A92
339060160
|
£3.20
|
£3.84
|
|
|
43 - SWITCH COMPL. PADDLE
MET-343409480.A2
343409480
|
£5.62
|
£6.75
|
|
|
44 - WASHER
MET-339007790.A31
339007790
|
-
|
|
|
|
880 - GREASE 100G
MET-344130910.A61
344130910
|
£19.18
|
£23.02
|
|
|

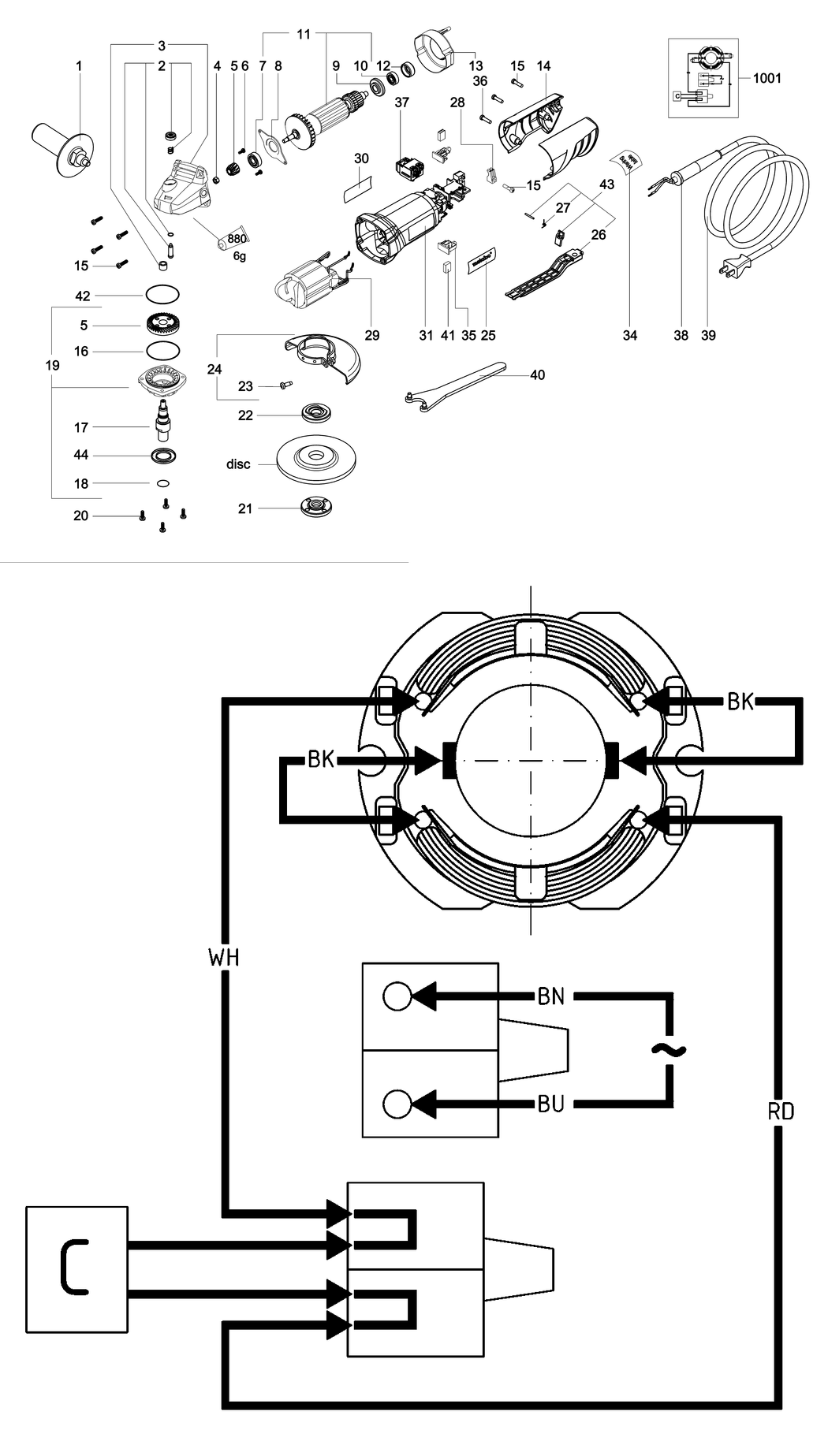

1001 - DIAGRAM
MET-338504470.A81
338504470
|
-
|
|
|
